9. Projector registration

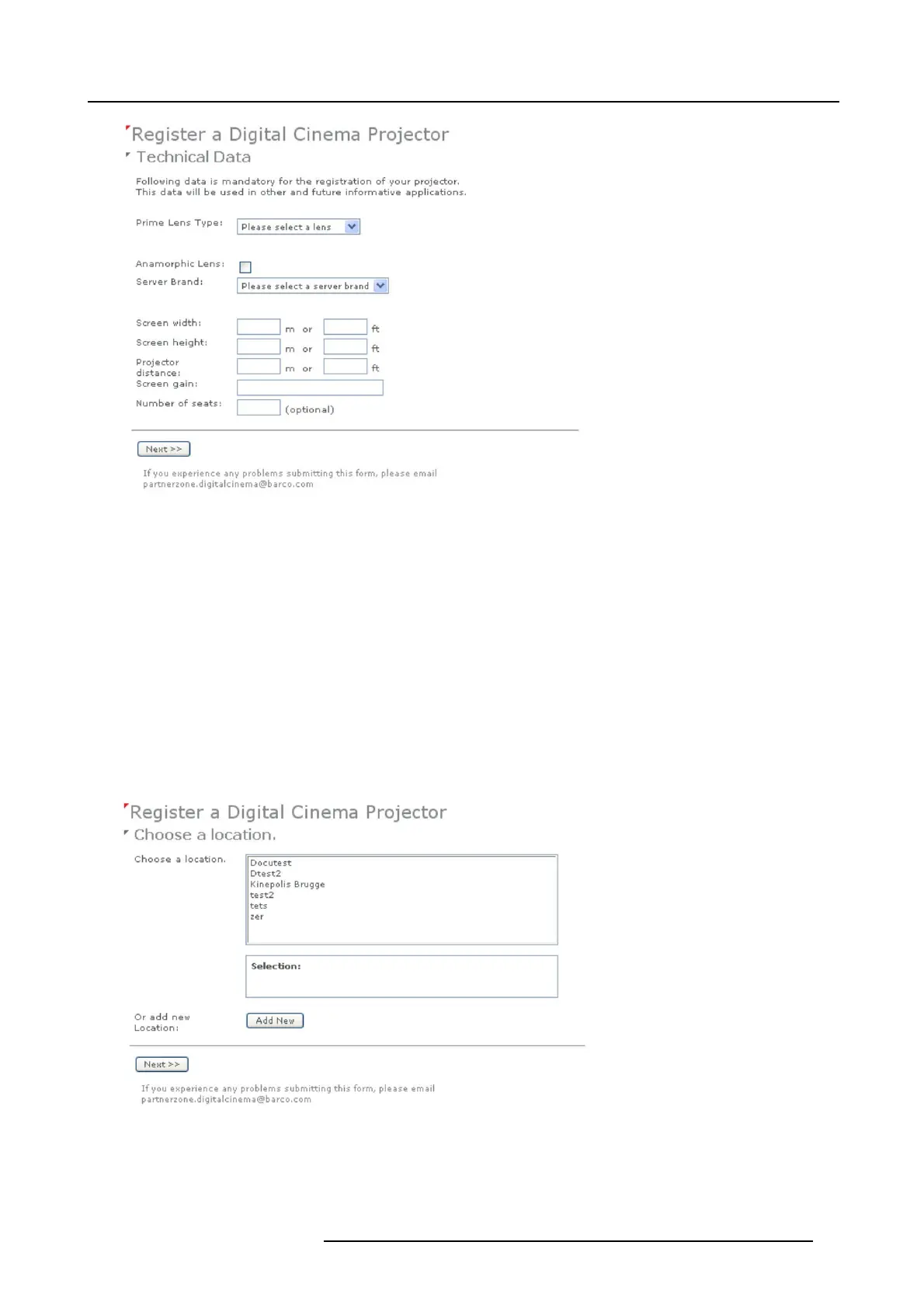

Image 9-3
- Lenses: click on the drop down box and select the lens o f the projector when a M25 lens or select O ther lens when no M25
lens is use d. When other lens is s elected, an extra input field appears to fill out the lens type.
- Anamo rphic lens: check when an anamorphic lens is available.
- Server brand: click on the drop down box and select the server brand name when in the list. Otherwise select Others and a
extra input field appea rs to enter the brand name.
- Screen width: enter the screen width value in meters or in inches. Whe n one of them is entered, the other value is calculated
automatically.
- Screen height: enter the screen height value in meters or in inches. W hen one of them is en tered, the other value is calculated
automatically.
- Projector distance: enter the distance between the project
or and screen. T he value is checked with the us ed lens and the
entered screen width.
- Screen gain: enter the gain of the screen used in the theatre.
- Number of seats: enter the number of s eats in the theatre.
5. Click Next >> to continue.
The location window opens with all available loc ations.
Image 9-4
Location window
6. If the location is in the list, select that location and click Next >> and continue to step 8.
R5905050 DP2K C-SERIES 10/07/2012 61
