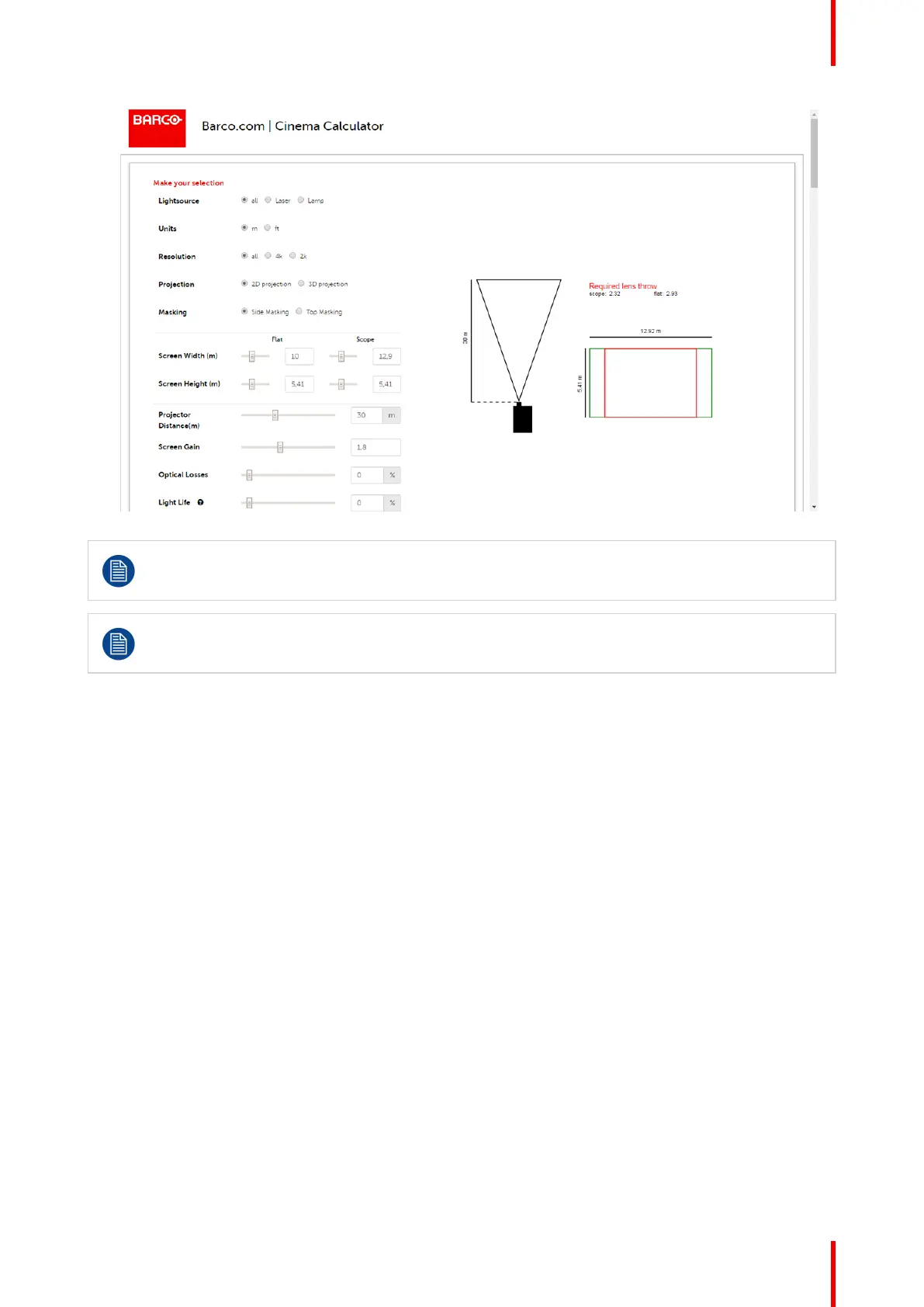

Image 5–6 Example of the Digital Cinema Lens calculator tool
Take into account that when the projector is tilted the Screen Width you have to fill in should be
larger than the physical screen width due to the keystone distortion of the projected image. How
much larger depends on the amount of tilt.
Due to production tolerances the real distances can differ by 2% from the calculated values.
For critical situations (fixed installs that use the lens at one of its extreme zoom positions) this
should be taken into account.
5.3 Lens installation
How to install a lens into the projector lens holder ?
1. Remove the plastic lens holder cover.
1. Put the lock (1) into the unlock position.
2. Take out the plastic cover.
Lenses & lens holder
