Barco DP4K-P - Optional Quad 3 G-SDI Input Board

6. Input & communication

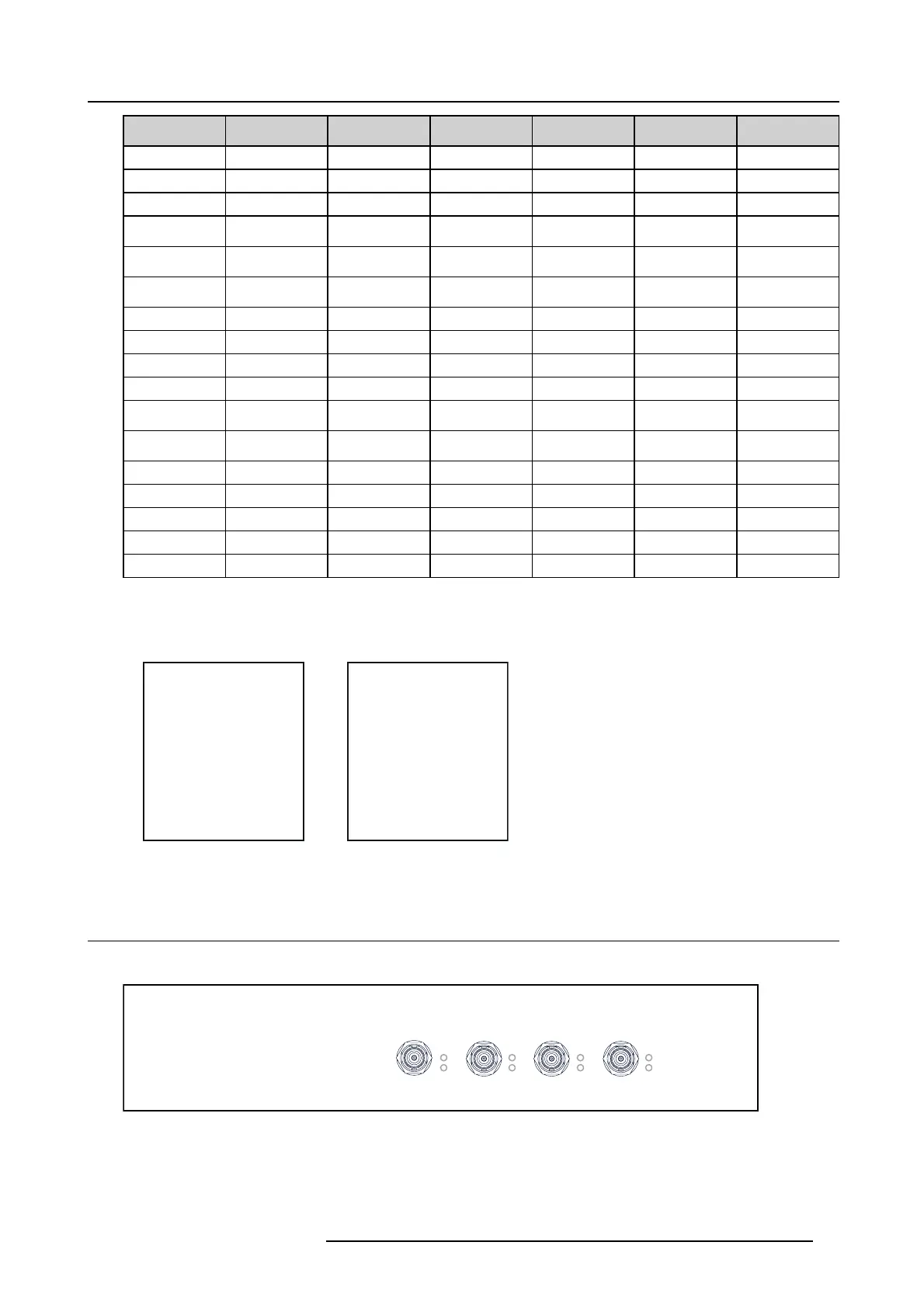

Input
Source
standard
Vertical rate
Scan type Color sp ace Samp ling Color depth
Single DVI VES A (640x480)
72 Progressive
RGB
4:4:4 8 bit
Single DVI VES A (800x600)
60 Progressive
RGB
4:4:4 8 bit
Single DVI VES A (800x600)
72 Progressive
RGB
4:4:4 8 bit
Single DVI VESA
(1024x768)
60 Progressive
RGB
4:4:4 8 bit
Single DVI VESA
(1024x768)
70 Progressive
RGB
4:4:4 8 bit
Single DVI VESA
(1280x1024)
60 Progressive
RGB
4:4:4 8 bit
Single DVI
1280x720 60 Progressive
RGB
4:4:4 8 bit
Single DVI
1920x1080 60 Progressive
RGB
4:4:4 8 bit
Single DVI
2048x1080
50/60
Progre ssive
RGB
4:4:4 8 bit
Single DVI
1920x1080i
50/60
Interlaced
RGB
4:4:4 8 bit
Twin DVI
ACS
(2048x1080)
50/59.94
Progre ssive
RGB
4:4:4 10 bit
Twin DVI
ACS
(2048x1080)
50/59.94
Progre ssive
RGB
4:4:4 12 bit
DVI-3D
3D (2048x1080) 24/eye
Progre ssive
RGB
4:4:4 2x8 bit
DVI-3D
3D (2048x1080) 25/eye
Progre ssive
RGB
4:4:4 2x8 bit
DVI-3D
3D (2048x1080) 30/eye
Progre ssive
RGB
4:4:4 2x8 bit
DVI-3D
3D (2048x1080) 50/eye
Progre ssive
RGB
4:4:4 2x8 bit
DVI-4K
4K (4096x2160)
24 Progressive
RGB
4:4:4 8 bit
About DVI-4K:
Two columns of 2048x2160 are needed, whe re DVI-A is left image and DVI-B is right image. Use Rec 709 for 4K as PFC file.
2048
2160
DVI-A
8 bit
24 Hz
2048
2160
DVI-B
8 bit
24 Hz
Image 6-5
DVI-4K
6.5 Optional Quad 3G-SDI input bo ard
Location and source input ports
SEL
SYNC OK
SEL
SYNC OK
SEL
SYNC OK
SEL
SYNC OK
QUAD 3G/SDI INPUT
ABCD
Image 6-6
The following input combinations are possible : A, B, A+B , A +B+C+D
When u sing all 4 four inputs to create the im age connect the quadrants of the image to the inputs as indicated on the drawing.
