7. Communicator Touch Panel
M

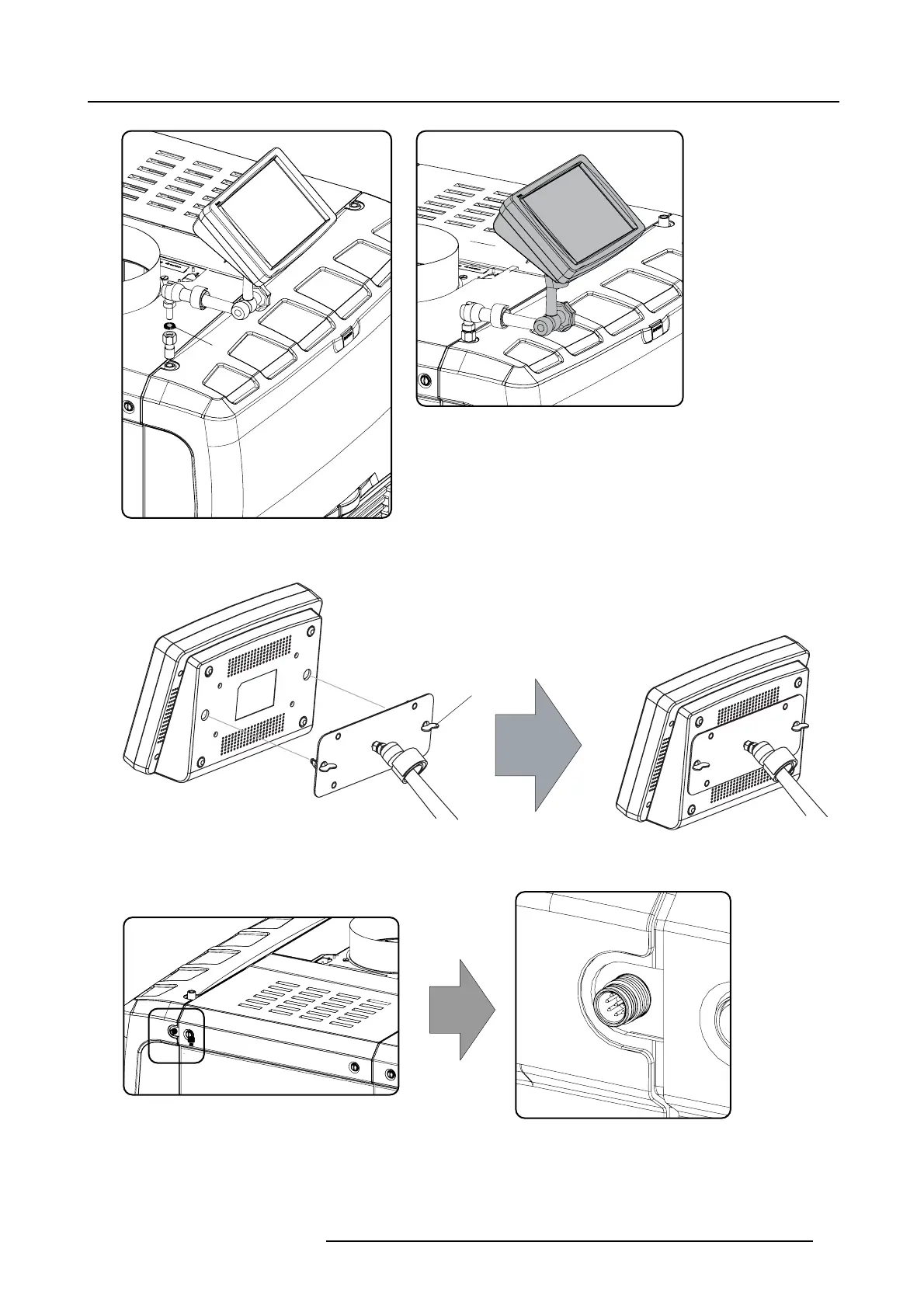

Image 7-4
Mount touch panel
Image 7-5
Touch panel m ounted
3. Place the touch panel interface on the mounting plate of the swivel arm and fasten the two wing nuts (W) as illustrated.
W
Image 7-6
Mount touch panel
4. C onnect the circular plug of the multi cable with the circular socket at the rear side of the B- series projector.
Image 7-7
5. Attach the multi cable to the swivel arm using the two Velcro s trips.
6. C onnect the DC plug, the RJ45 Ethernet plug and the D -SUB plug into their res pective sockets on the touch panel interface.
R5905067 DPXK-19B/23B/P 17/09/2012
69
