Barco EC-200 - System-Power Board

13. E2 Maintenance
13.22 System-Power Board

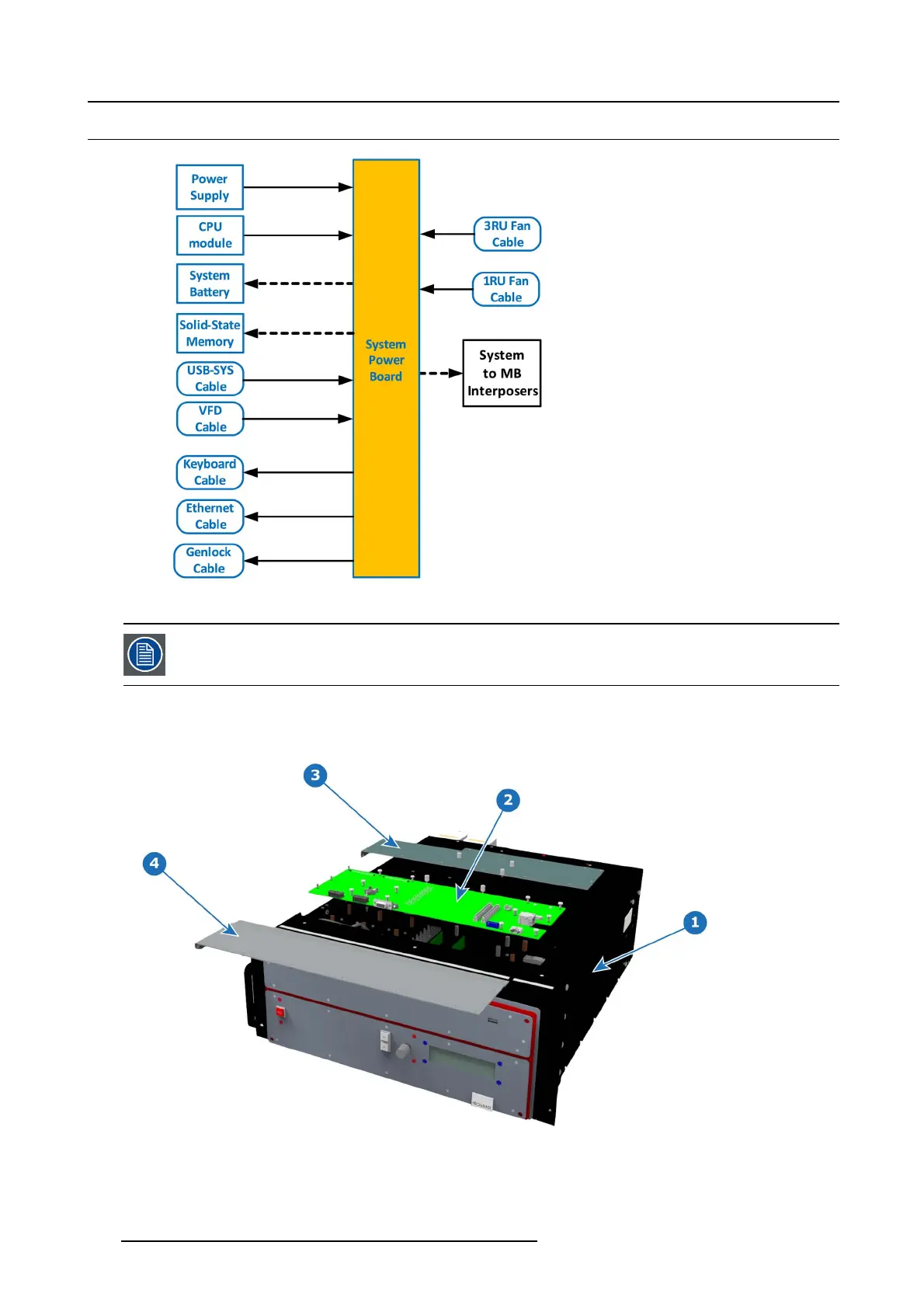

Image 13-51
Before you proceed removing the System-P ower board you need to remove the Power Supplies, Bottom Panel
and the CPU board. Follow the instructions p rovided in these sections.
Overview
Image 13-52
1 Chassis
2 System-Power Board
3 Bottom Panel part 1
4 Bottom Panel part 2
