4. Hardware orientation
4.7 HDMI Output Card
General
The H D MI output card has four 19-pin HDMI connectors wh ich can provide a HDMI video signal.
The figure below illustrates the HDMI output card’s rear panel connectors:

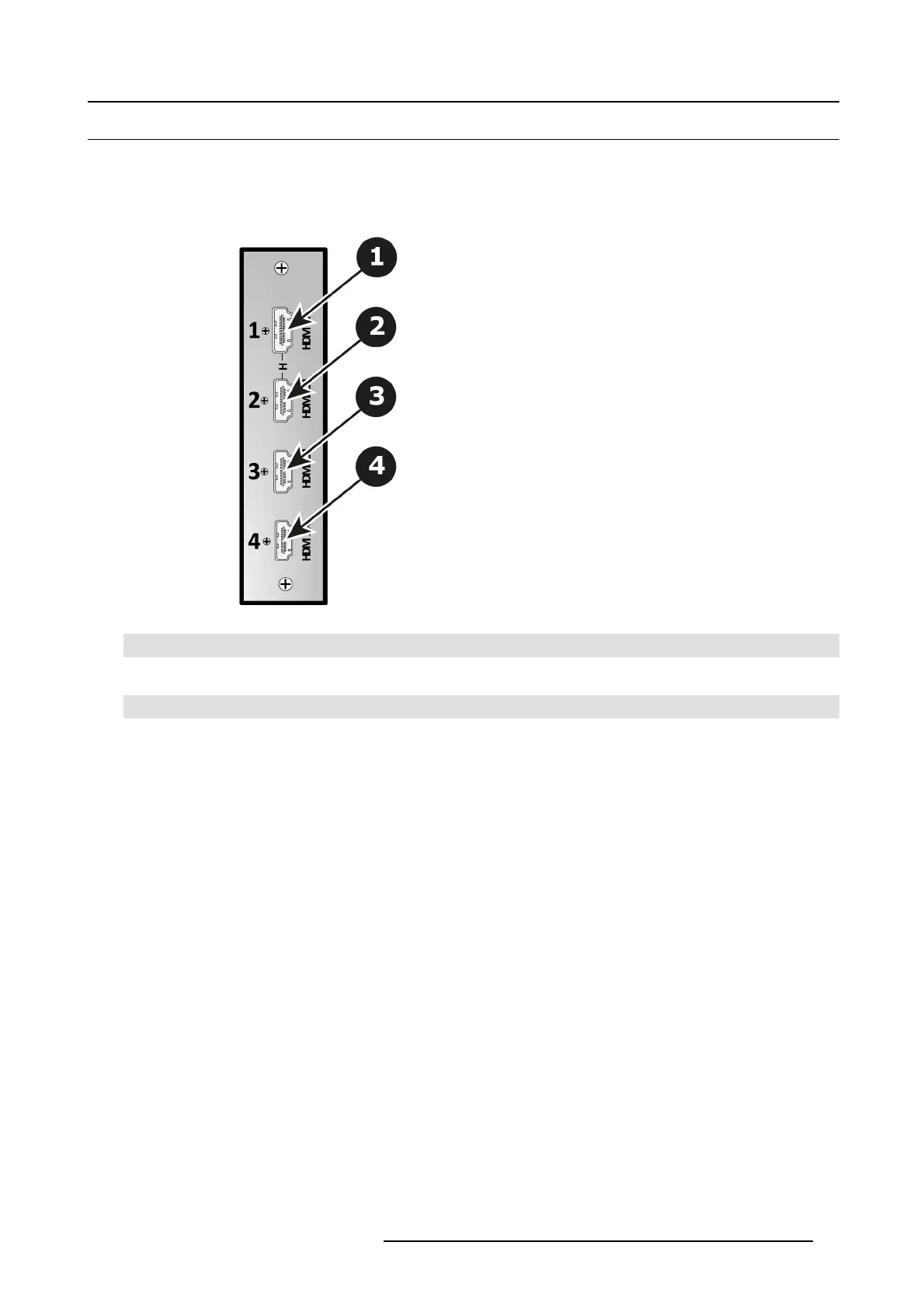

Image 4-12
HDMI Output Card Rear Panel
1 HDMI connector — HDMI 1
2 HDMI connector — HDMI 2
3 HDMI connector — HDMI 3
4 HDMI connector — HDMI 4
Features
• Default slot(s): 11, 12, 14
• Provide up to 4 independent signals
• 4x 19–pin HDMI connector (Typ e A)
• The two c onnectors su pport single link signals up-to 300 M Hz.
Specifi ca tions
• HDMI per 1.4a Specificatio n
• Supported format:
- formats up to 2,560x1,600@ 60 and 3,840x1,200@60 (30 bits)
- 4K/UHD Supported:
o
3,840x2,160/ 23.98/24/25/29.97/30 input via 1x HD MI, 2x HDMI (L and R half) or 4x HDMI (quadrants)
o
3,840x2,160/ 50/59.94/60 input v ia 2x HDMI (L and R half) or 4x HD MI (quadrants)
o
4,096x2,160/ 23.98/24/25/29.97/30 input via 1x HD MI, 2x HDMI (L and R half) or 4x HDMI (quadrants)
o
4,096x2,160/ 50/59.94/60 input via 2x HD
MI (L and R ha lf) or 4x HDMI (quadrants)
- EDID version 1.3 compatible
- HDCP version 1.4 c ompatible
