Barco EC-200 - CPU Module

14. S3 Maintenance
14.27 CPU Module

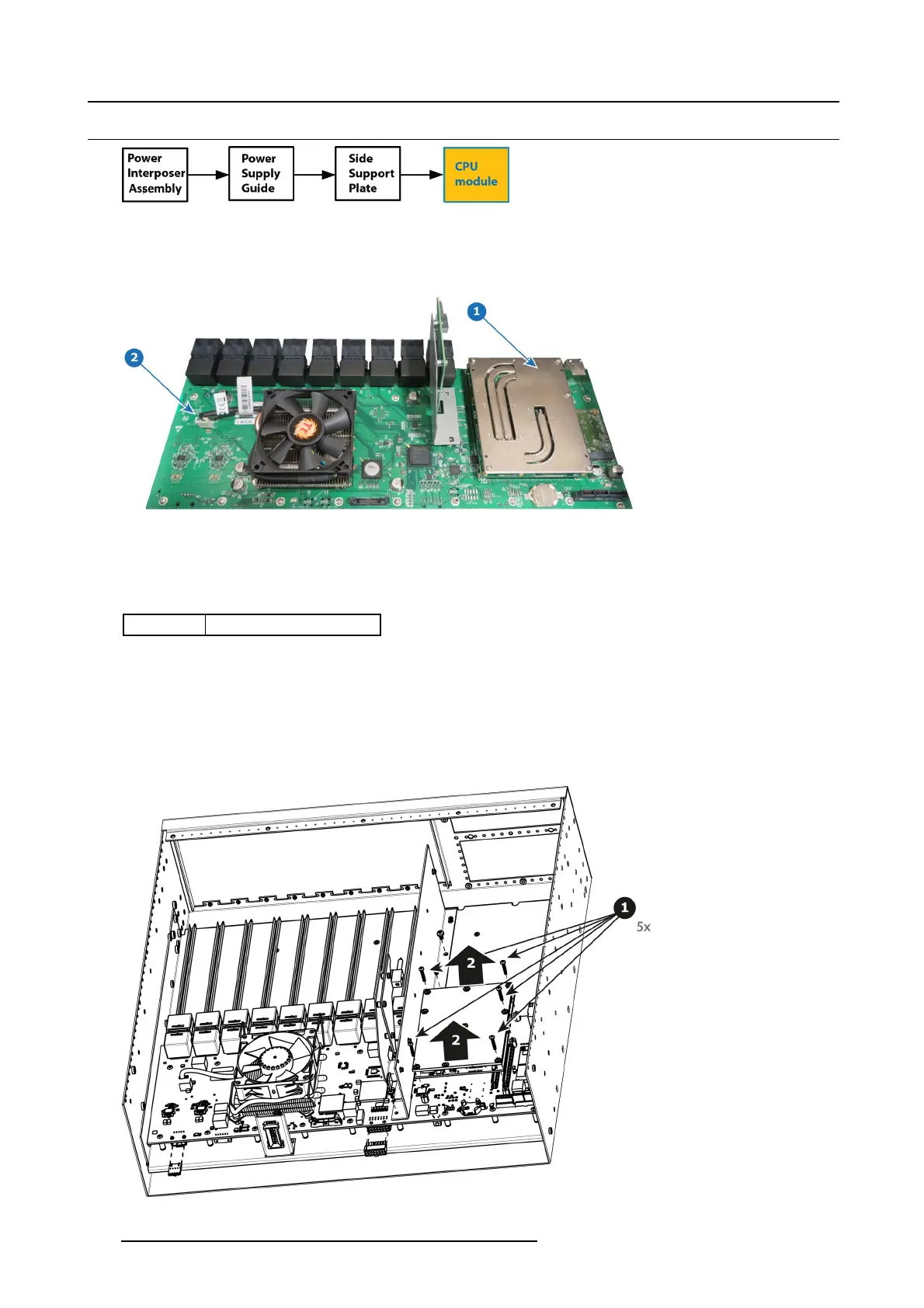

Image 14-68
Overview
Image 14-69
1 CPU module
2 Motherboard
Concerned parts
R767264K
CPU module
Necessary tools
1 x Phillips Screwdriver #2
How to remove CPU Module
1. Remove the five screws that attach CP U module to the system ca rd.
2. Carefully remove the CPU module by lifting it u
p.
Image 14-70
