A. Specifications

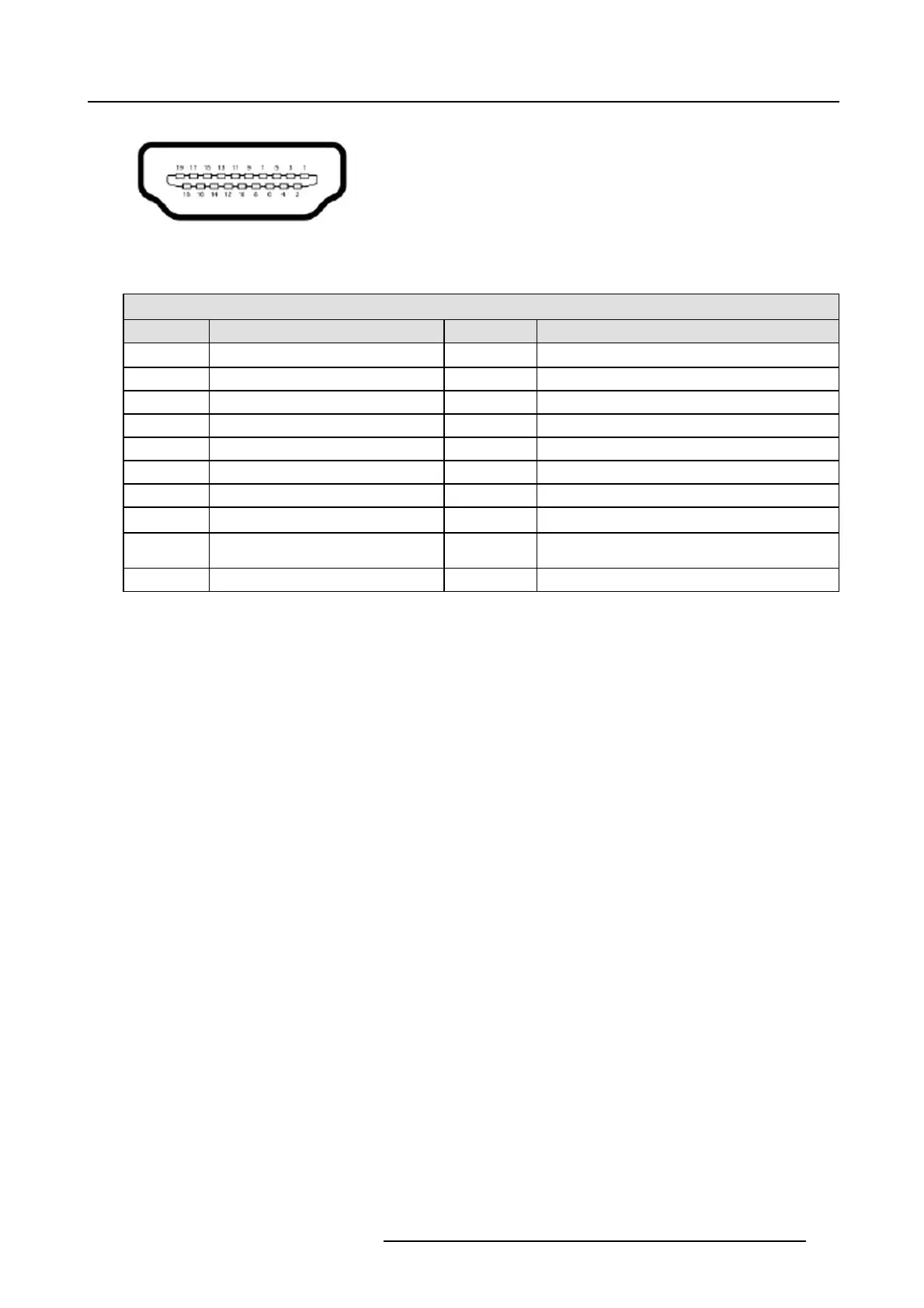

Image A-4
HDMI connector
The following table lists HDMI connector pinouts.
HDMI connector
Pin Signal Pin Signal
1 TMDS Data2+ 11 TMDS Clock Shield
2 TMDS Data2 Shield 12 TMDS Clock-
3 TMDS Data2- 13 CEC
4 TMDS Data1+ 14
5
TMDS D ata1 Shield 15 SCL
6 TMDS Data1- 16 SDA
7
TMDS Data0+
17
DDC/CEC/HEC Ground
8
TMDS D ata0 Shield
18
+5 v Pow er (max 50 mA)
9
TMDS Data0-
19
Hot Plug Detect (A ll Versions) and HEC Data+
10
TMDS Clock+
R5905948 EVENT MASTER DEVICES 17/07/2017 507
