Barco MDSC-8427 User Manual

R5910599 /00 MDSC-842710
1.4.6 HDMI connector

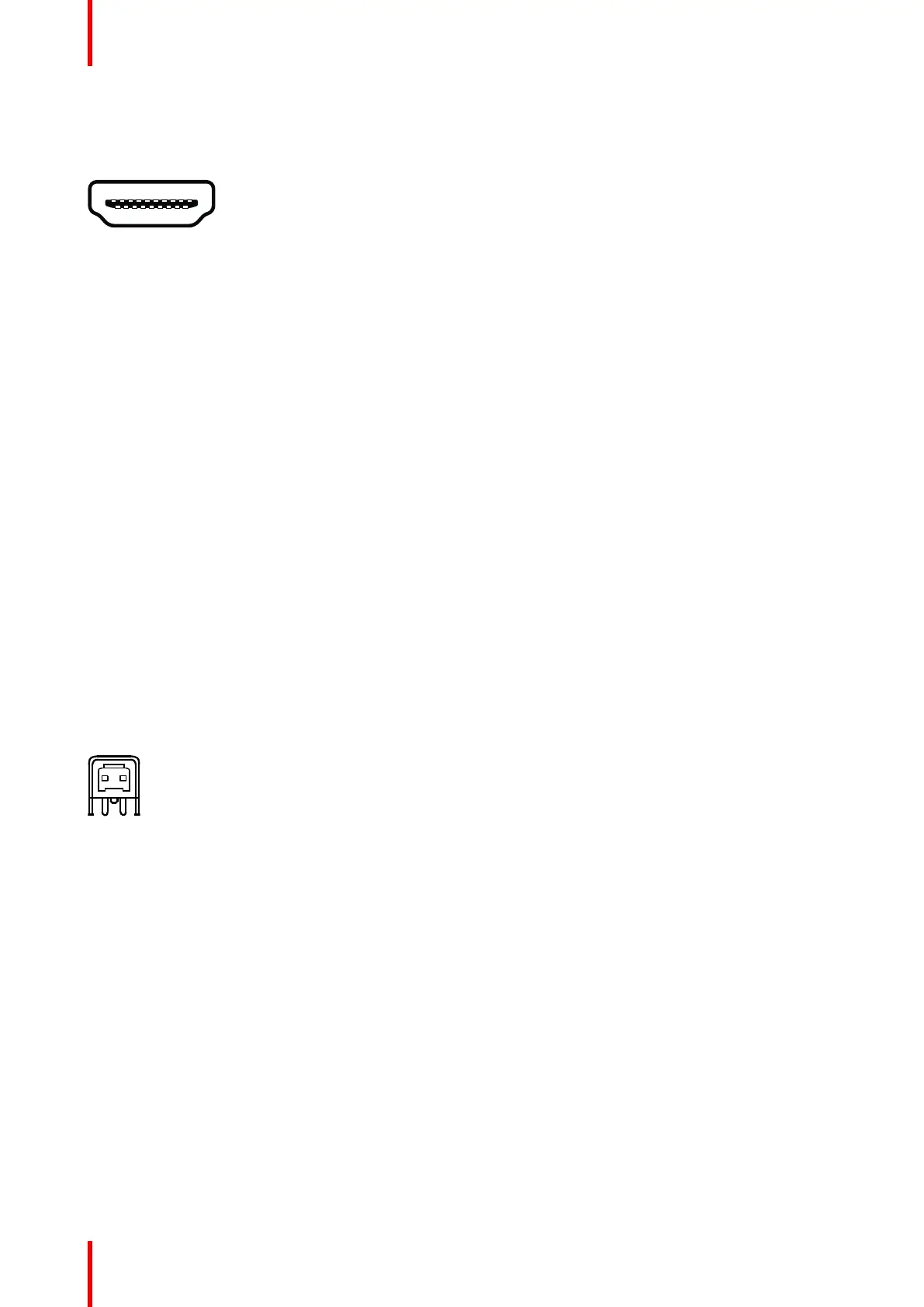

Overview
1
24681012141618
35791113151719
Image 1-9
1. T.M.D.S. Data2+
2. T.M.D.S. Data2 Shield
3. T.M.D.S. Data2-
4. T.M.D.S. Data1+
5. T.M.D.S. Data1 Shield
6. T.M.D.S. Data1-
7. T.M.D.S. Data0+
8. T.M.D.S. Data0 Shield
9. T.M.D.S. Data0-
10.T.M.D.S. Clock+
11. T.M.D.S. Clock Shield
12.T.M.D.S. Clock-
13.CEC
14.Not connected
15.DDC_SCL
16.DDC_SDA
17.DDC/CEC GND
18.+5VDC POWER
19.HDP
1.4.7 DC out connector
Overview
1 2
Image 1-10
1. +5 VDC
2. GND
