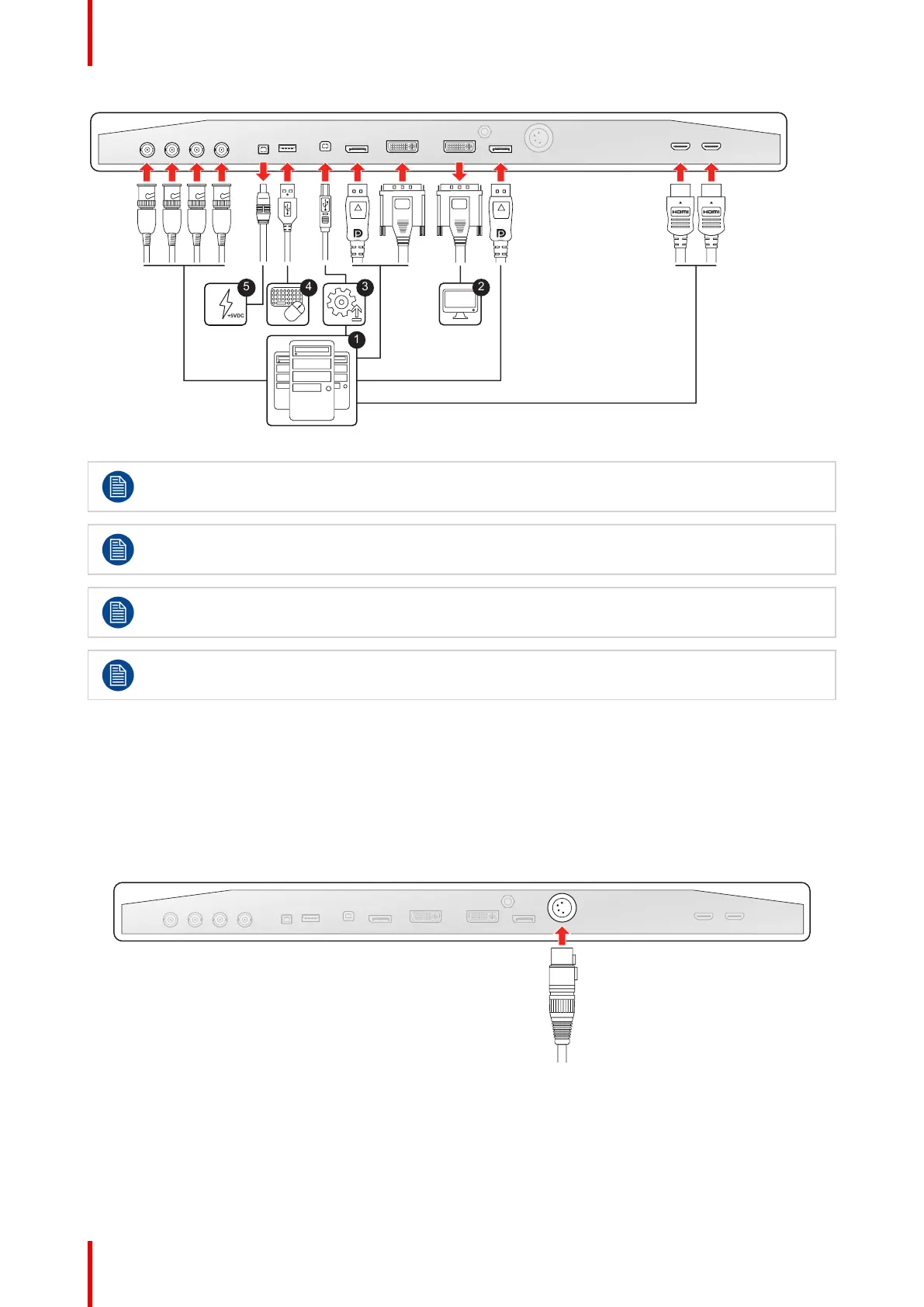

DisplayPort VESA DP 1.2 certified cables for 5.4 Gbps HBR2 are recommended.
Premium certified HDMI 2.0 cables are recommended.
The DVI output must be enabled in the OSD menu (please refer to “DVI output”, page 36).
A subset of the commands of the remote control protocol is also available on a new DDC protocol
on DVI and DisplayPort1 auxiliary channel.
2.3 Power supply connection
To connect the power supply
1. Connect the supplied external DC power supply unit to the +25 VDC power input of your display.
2. Plug the other end of the external DC power supply into a grounded power outlet by means of the proper
power cord delivered in the packaging.
Image 2-4
Protective earth
Earth the MDSC-8427 by connecting the protective earth pin to a grounded outlet by means of a yellow/green
AWG18 wire (maximum admitted cable length according to national regulation requirements).
