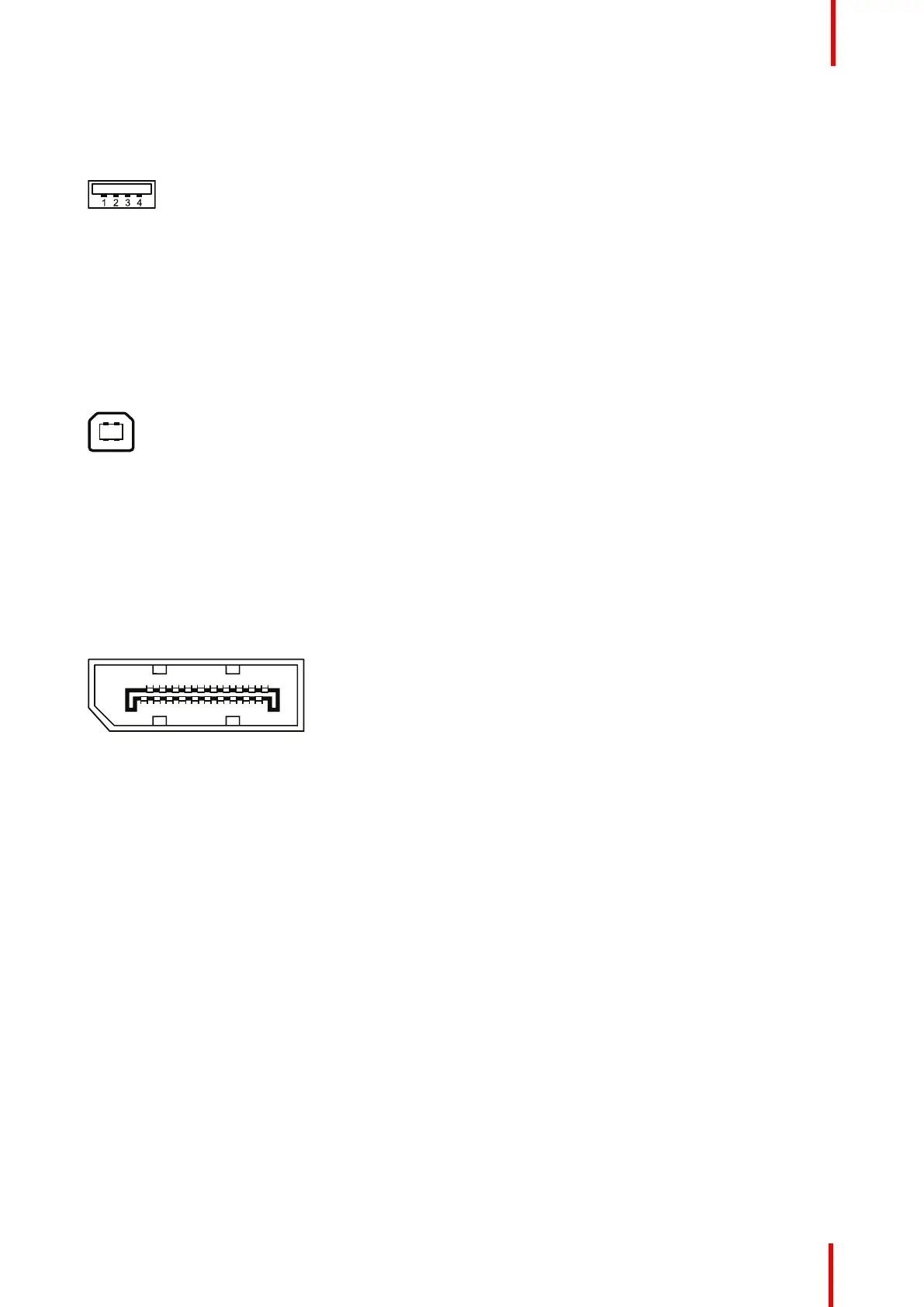

1.4.3 USB type A connector
Overview
Image 1-6
1. +5 VDC
2. Data -
3. Data +
4. GND
1.4.4 USB type B connector
Overview
1 2
3 4
Image 1-7
1. Data -
2. +5 VDC
3. Data +
4. GND
1.4.5 DisplayPort connector
Overview (sink side pin-out)
19 17 15 13 11 9 7 5 3 1
20 18 16 14 12 10 8 6 4 2
Image 1-8
1. ML_Lane 3 (n)
2. GND
3. ML_Lane 3 (p)
4. ML_Lane 2 (n)
5. GND
6. ML_Lane 2 (p)
7. ML_Lane 1 (n)
8. GND
9. ML_Lane 1 (p)
10.ML_Lane 0 (n)
11. GND
12.ML_Lane 0 (p)
13.CONFIG1
14.CONFIG2
15.AUX CH (p)
16.GND
17.AUX CH (n)
18.Hot Plug
19.Return
20.DP_PWR (+3.3 VDC @ 500 mA max)
