Mechanical check
This check should confirm that there are no broken knobs or connectors, that the cabinet and panel surfaces are free of dents
and scratches, and that the operating panel is not scratched or cracked. The Barco Sales and Service office should be notified
as soon as possible if this is not the case.
2.4 Projector configurations
The different configurations
Depending on the installation the projector can be mounted in different ways, the different configurations are:
1. Front / Table (F/T)
2. Front / Ceiling (F/C) (upside down)
3. Front / Ceiling (F/C) (table position)
4. Rear / Table (R/T)
5. Rear / Ceiling (R/C) (upside down)
6. Rear / Ceiling (R/C) (table position)

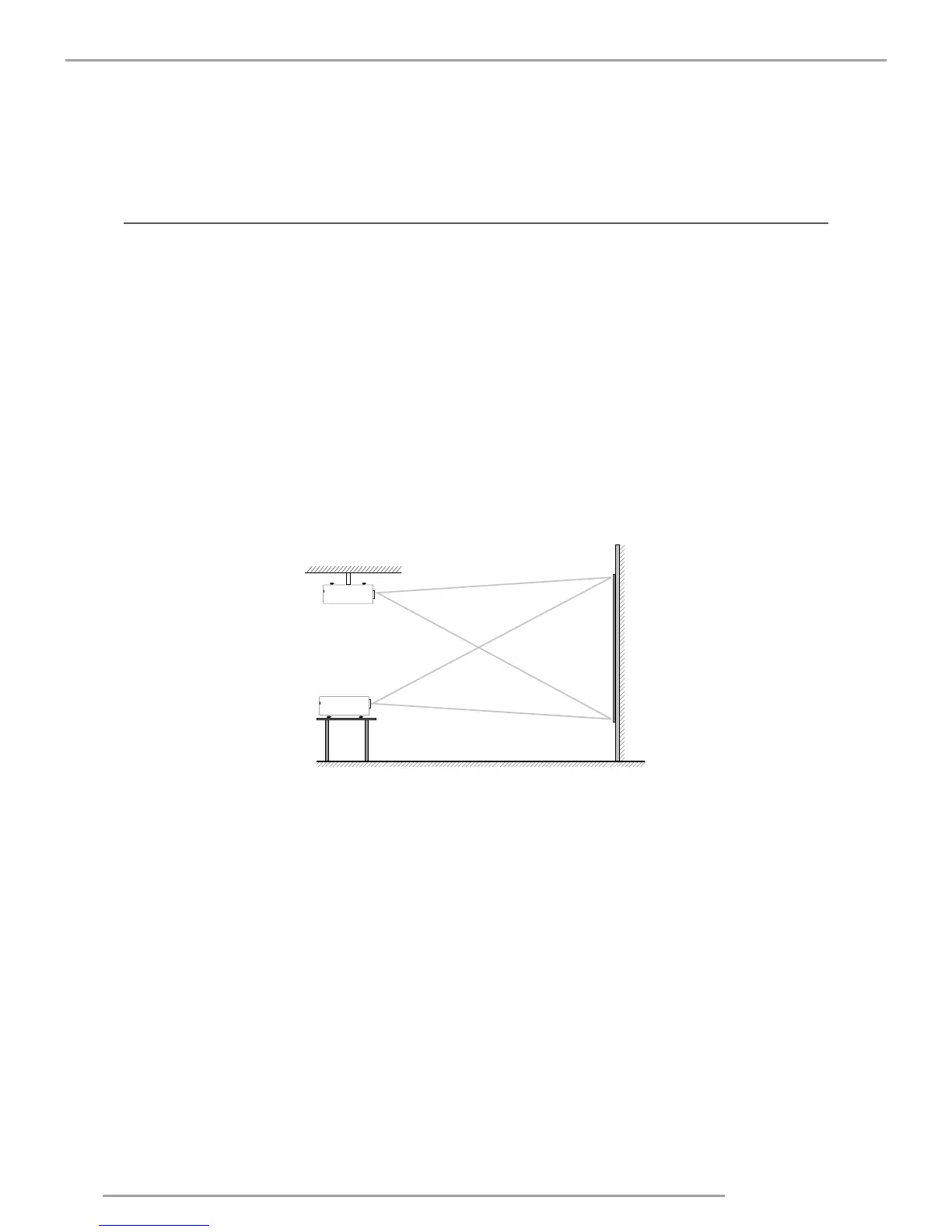

Front projection
The projector is installed, either in a table mount or ceiling mount configuration, at the same side of the screen as the
audience.
F/C
AUDIENCE
F/T
FLOOR
SCREEN
Front projection
