4. PROJECTOR PARTS AND FUNCTIONS
Overview
•
Projector front view
•
Projector Rear view
•
Input and Communication
•
Status lights of LED
•
Connecting the projector to other devices

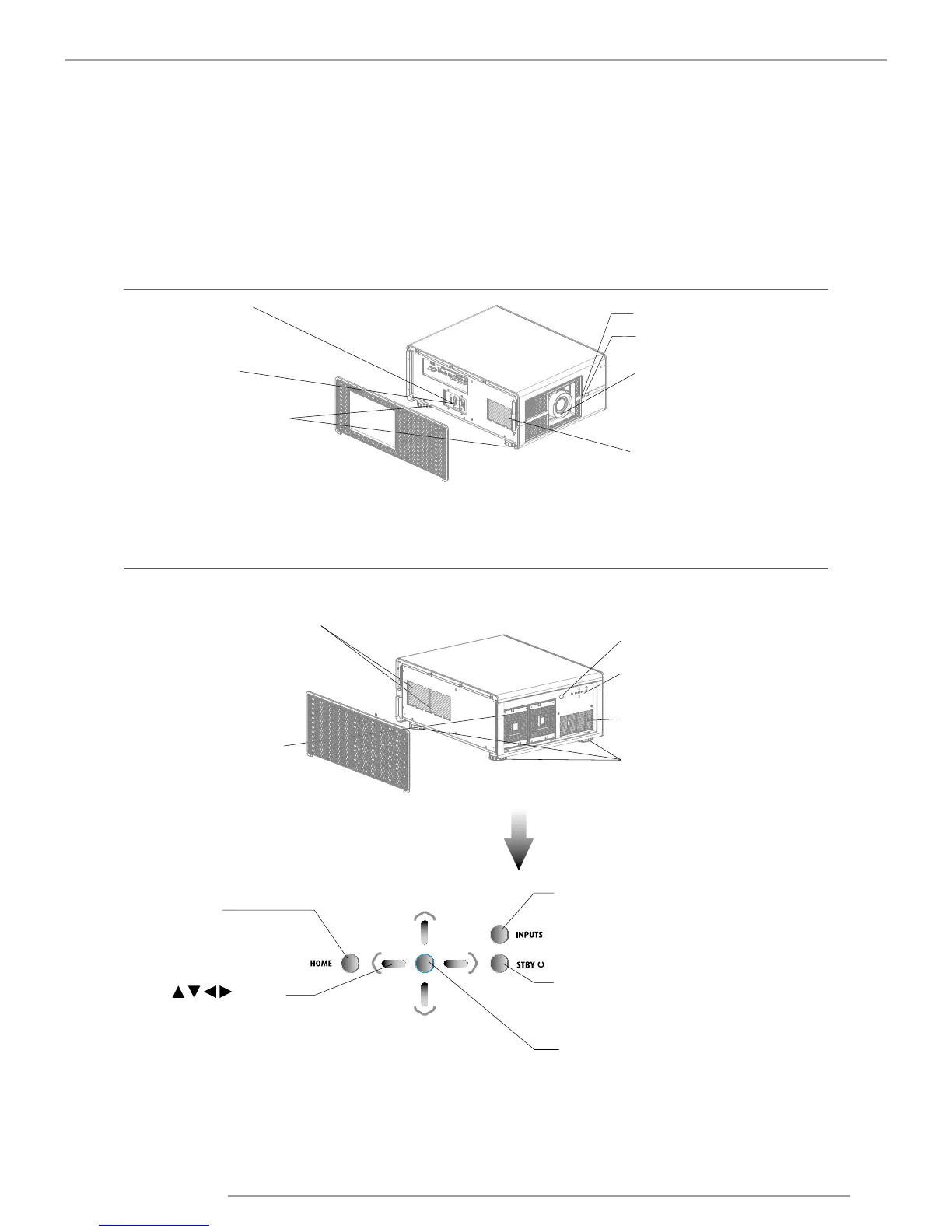

4.1 Projector front view
Lens
LED indicator
Infrared receiver
Adjustable foot
Adjust the height and
angle of the projector
with the adjustable foot
Power inlet
Power switch
I -> ON
O -> OFF
Ventilation slot
The hot air generated
inside the projector is
dispersed through the
ventilation slot. Make sure
the ventilation slot is free
from obstruction.
4.2 Projector Rear view
bottons
Use these buttons to scroll,
configure or adjust items on
the OSD or toggle between
different images.
OK
Press this button to confirm
selection of OSD item; you
can choose from "Select
Item" or access "Sub Menu"
configurations.
INPUT
Used to toggle between different
input signal source
Home
Displays or hides the OSD
adjustment screen
STBY
Use this button to start up or
shut down the projector
.
Ventilation outlet
The internal cooling fan draws hot
air vis the ventilation outlet to the
projector.
Lamp 1 & Lamp 2
Adjustable foot
Infrared receiver
Ventilation slot
The hot air generated
inside the projector is
dispersed through the
ventilation slot. Make sure
the ventilation slot is free
from obstruction.
Projector Keypad
To Next Page
