PJWU-101B 17/10/2014
22
4. Input & Communication
4.3 Input and Communication
1
6 7
8
2 3
4
5

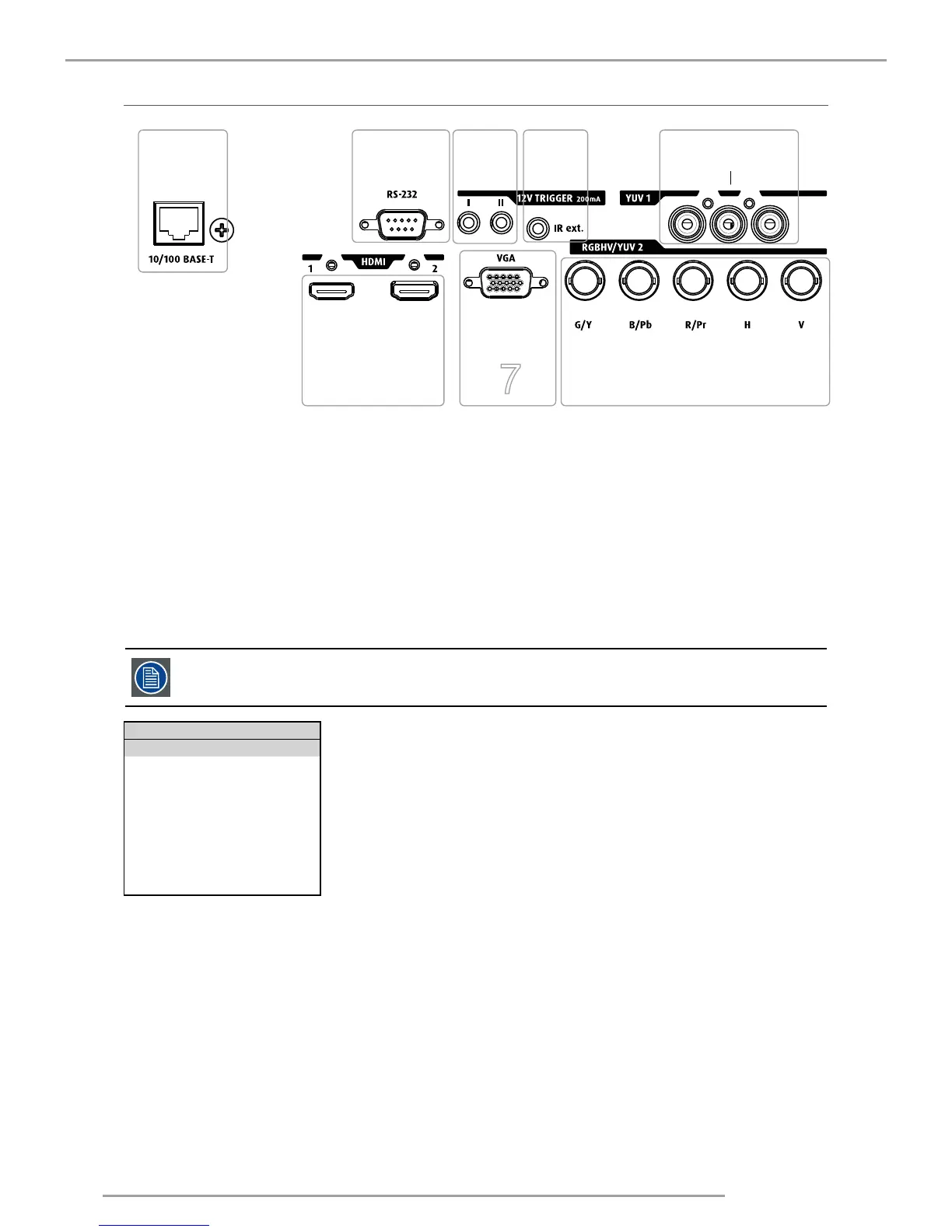

1. 10/100 BASE-T
Ethernet port
The projector can be connected to a LAN (local area network) using the Ethernet port on the communication interface. Once
connected to the LAN, users are capable of accessing the projector from any location, inside or outside (if allowed) their
company network using the control software: Projector Toolset. This toolset locates the projector on the network in case
there is a DHCP server or the user can insert the correct IP-address of the projector to access the projector. Once accessed,
it is possible to check and manipulate all the projector settings. Remote diagnostics, control and monitoring of the projector
can then become a daily and very simple operation. The network connectivity permits to detect potential errors and
consequently improve the time to servicing.
The connector used for the Ethernet ports (E) are of rugged Neutrik EtherCon RJ45 type, which is compatible
with standard RJ45 cable connector. Straight (most common) as well as cross linked network cables can be
used.
10/100 BASE-T - RJ45 port
PIN Description
1 TXD+
2 TXD-
3 RXD+
4 -
5 -
6 RXD-
7 -
8 -
2. RS232
RS232 input
The communication interface of the PJWU-101B projector supports RS232 serial communication.
You can use the RS232 input to connect a local PC to your PJWU-101B projector. By this way you can configure and control
your PJWU-101B projector from your local PC.
