RGBs connection

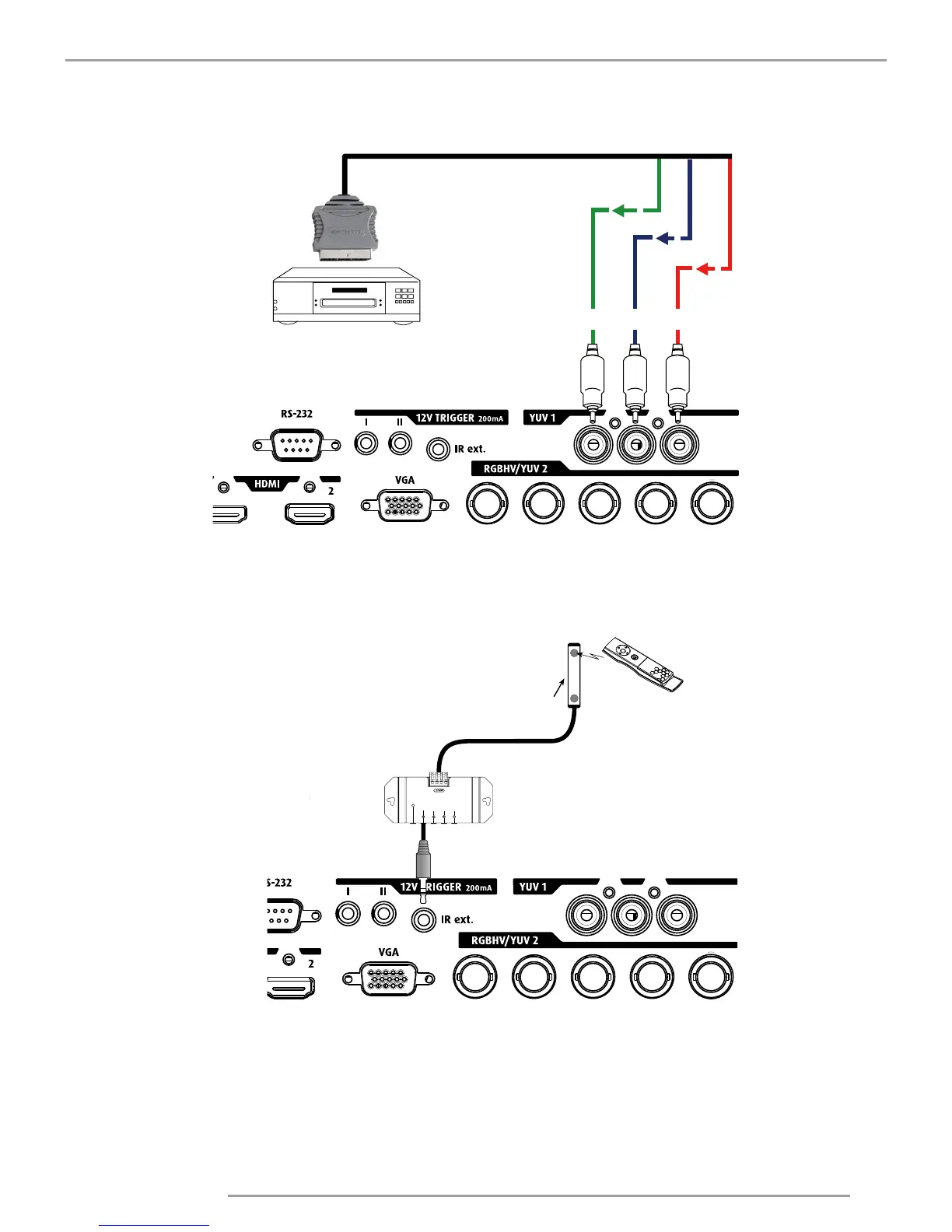

If the source equipment uses composite image synchronized connectors to output VGA, please connect the green, blue and
red connectors to the Y, Pb, Pr jacks at the YUV1 inputs and the synchronized output to the VIDEO jack.
Green Blue Red
DVD player or other SCART
RGBS input sources
IR INPUT connection
If the projector is unable to pick up the IR signals from the remote controle due to distance or obstacles (i.e. wall or cabinet
doors), you can connect an external IR repeater to the projector’s IR INPUT jack to extend the effective signal reception range.
IR sensor
IR repeater
Remote control
To Next Page
