4.8 Wall or ceiling mount without rigging frame
General
In case of installing the projector to other positions than desktop or ceiling, it is preferred to use the rigging
frame designed for this purpose. In cases where this is not possible, suitable 3rd part brackets for safe
installation must be used to secure the unit from damage or causing injury. .
Attachment points.
The attachment points for additional rigging equipment are the same as for the adjustable feet at the bottom of
the projector.
Attachment point specifications
Attachment point screw dimension M10.
Thread engagement Min. 15mm. Max 30mm
Tightening torque 20 Nm
WARNING: The attachment points at the top of the projector must only be used as a supplementary
to the main attachment at the bottom of the projector.
WARNING: The main attachment points are the only approved for frame or wall mount of the
projector, including the lens.

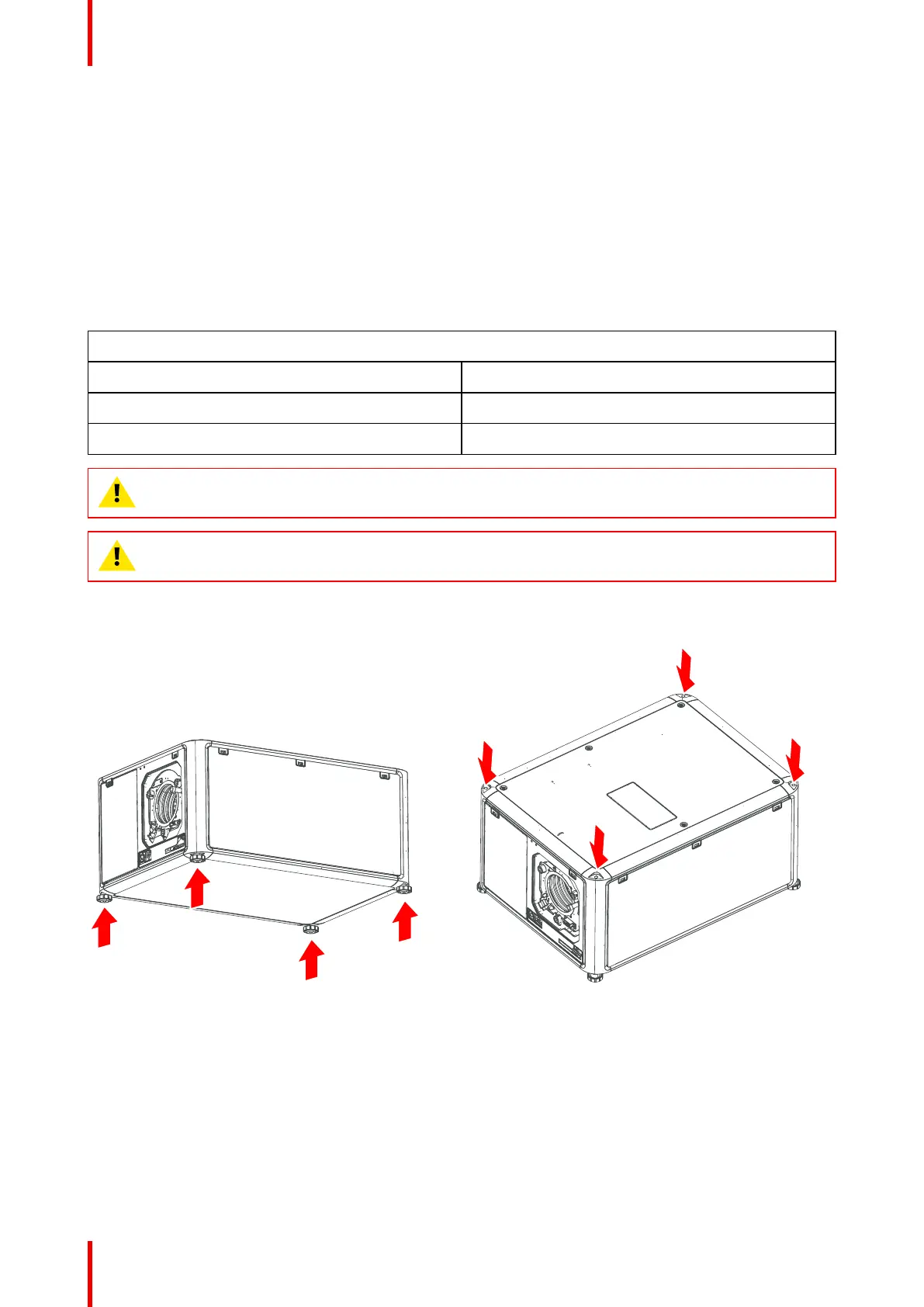

Projectors attachment points
Image 4–11 Main attachment points. Image 4–12 Supplementary attachment points
