R5911438 /09 UDM90
8.3 Removal of top cover
Required tools
Torx screwdriver T20
How to remove the top cover.

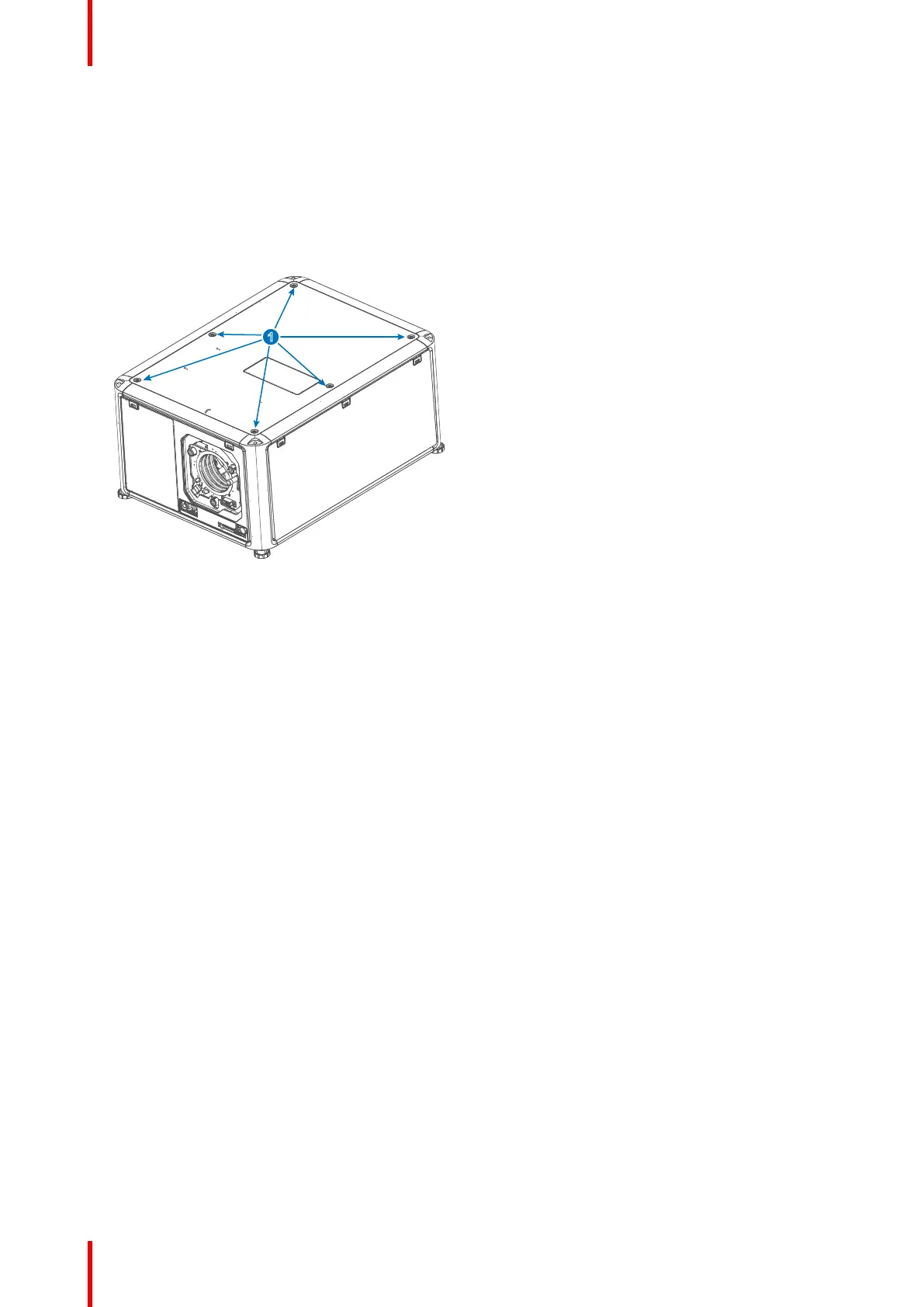

1. Release the 6 Torx screws indicated in the illustration.
1
1
1
Image 8–7
2. Lift up the cover of the projector.
Projector covers
