63R5911438 /09 UDM

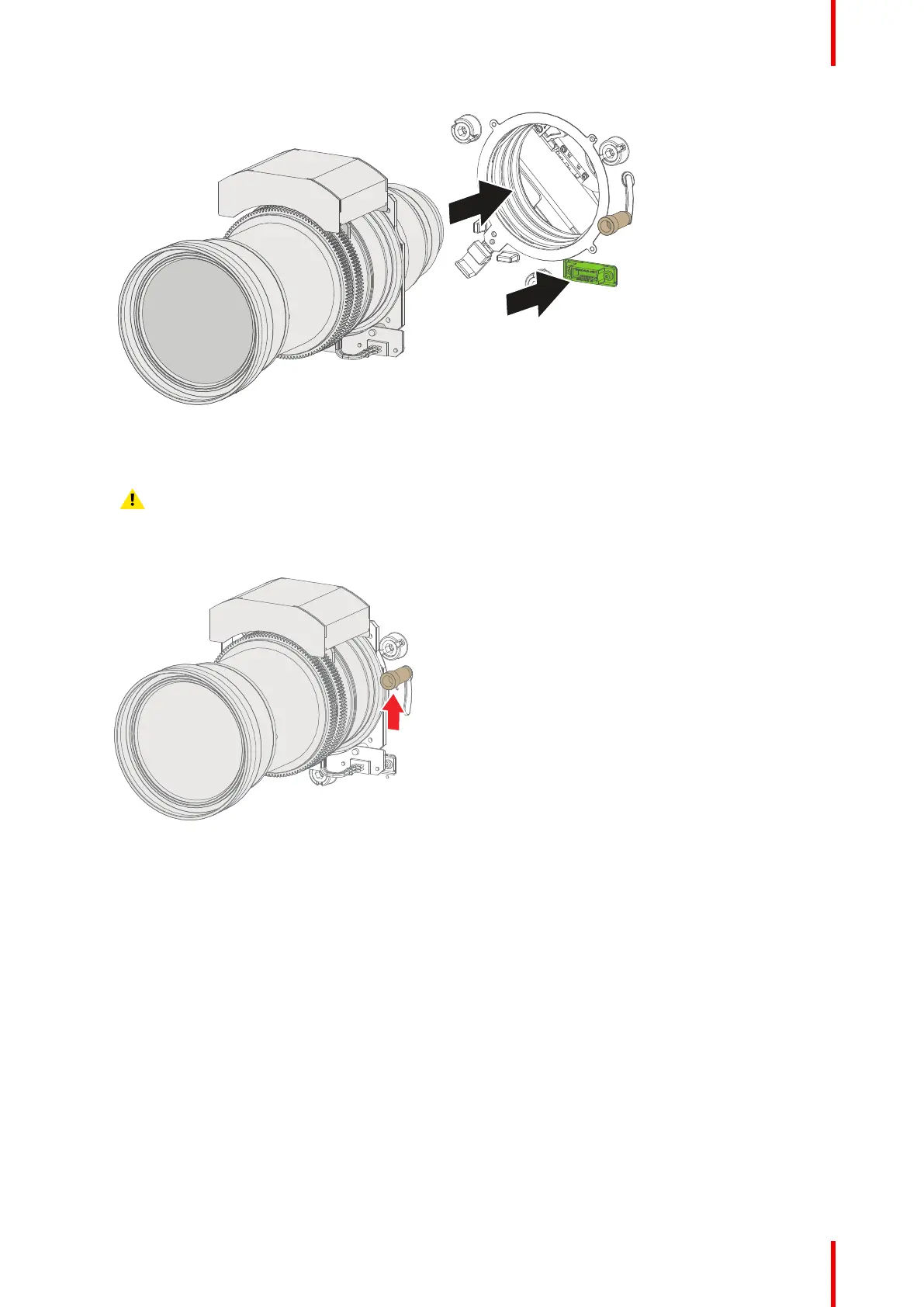

Image 5–3 Lens installation
6. Insert the lens until the connector seats into the socket and de secondary lock (reference 3) makes an
audible clicking sound.
Warning: Do not release the lens yet, as the lens may fall out of the lens holder.
7. Secure the lens in the lens holder by sliding the primary lens lock handle into the “locked” position (away
from the lens power supply socket). Ensure the lens touches the front plate of the lens holder.
Image 5–4 Lock lens
8. Check if the lens is really secured by trying to pull the lens out of the lens holder.
