Manual 2100-684
Page 17 of 25
JADE
TM
CompleteStat
TM

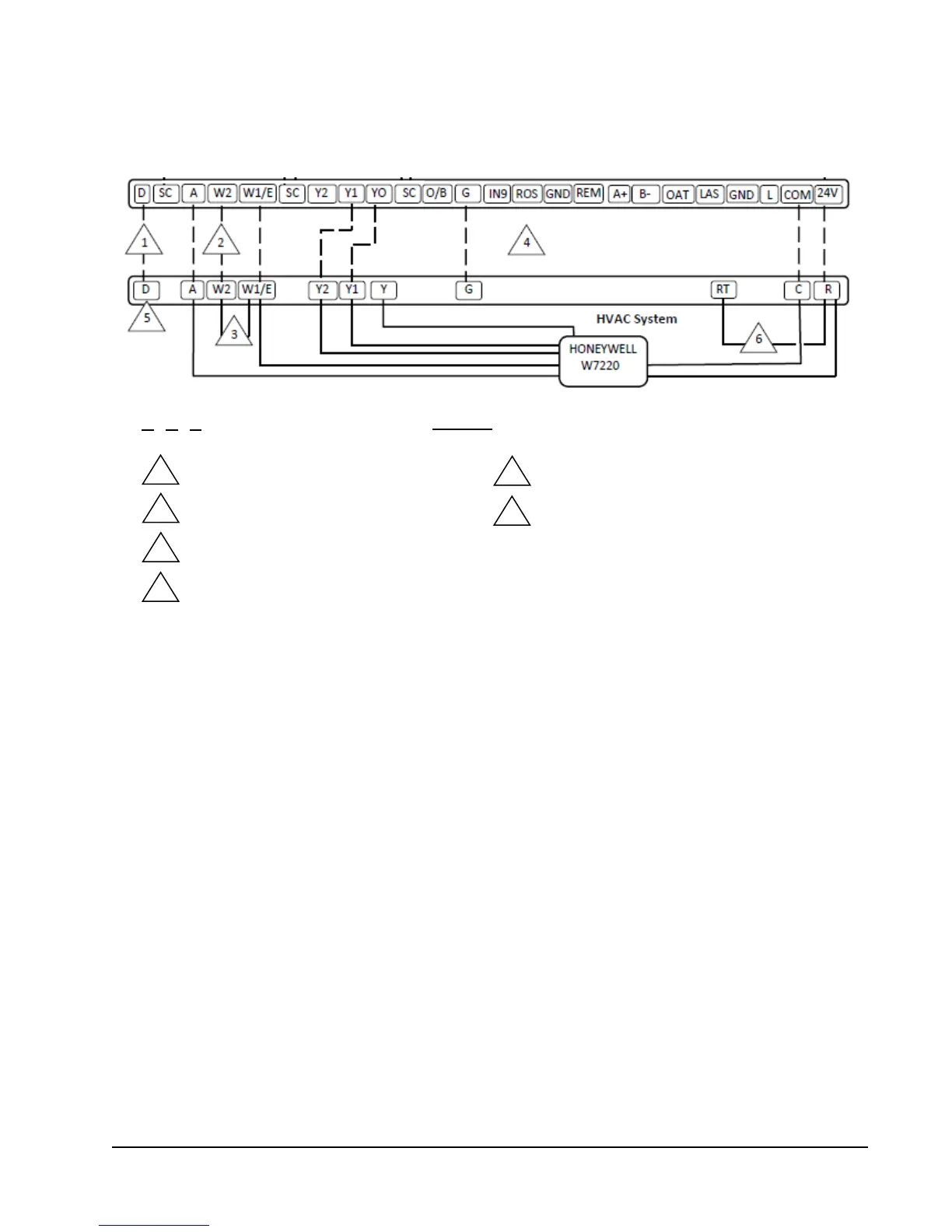

WIRING DIAGRAM 2
Conventional 1H/1C or 2H/1C with Honeywell W7220 Jade
TM
Control Economizer,
with or without Dehumidification
Optional wire only for 2 stage heating
(15kW or more)
2
Field-installed wires and jumpers
Factory-installed wires and jumpers
Wire for dehumidification units only
1
Remove jumper for 2 stage heat
(15kW or more)
3
CompleteStat programmed for damper/
economizer: Enable/Disable
4
W**A2 units use “D” terminal
W**A1 units use “3” terminal
5
For fire-smoke/emergency shutdown, remove
factory jumper and connect NC contacts from
field-installed device to terminals “RT” and “R”.
Only offered on single stage W**A2 units.
6
To Next Page
