Bard CompleteStat CS9B-THOA - Wiring Diagram 3; Wiring Diagram 4

Manual 2100-684
Page 18 of 25
CompleteStat
TM

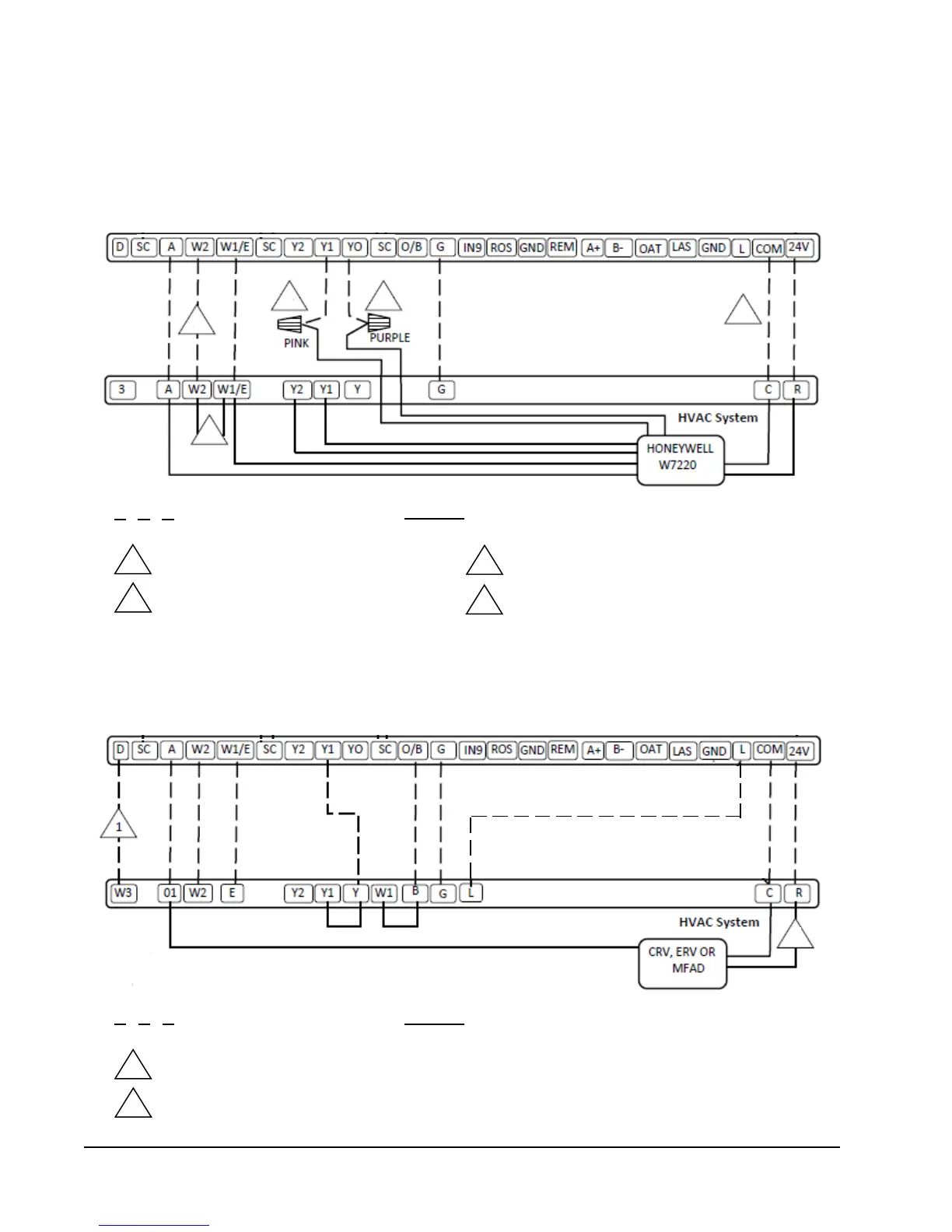

WIRING DIAGRAM 3
Conventional 1H/2C or 2H/2C with Honeywell W7220 Jade
TM
Control Economizer,
No Dehumidification, 2 Stage Compressor Only
JADE
TM
Optional wire only for 2 stage heating
(15kW or more)
2
Field-installed wires and jumpers
Factory-installed wires and jumpers
1
Remove jumper for 2 stage heat
(15kW or more)
3
CompleteStat programmed for damper/
economizer: Enable/Disable
4
Field-installed wire nut
1
2
3 3
4
CompleteStat
TM
WIRING DIAGRAM 4
Heat Pump 2H/1C or 3H/1C, with or without Dehumidification and Ventilation, no Economizer
Wire not used on MFAD ventilation option
2
Field-installed wires and jumpers
Factory-installed wires and jumpers
Wire for dehumidification units only
1
2
WIRING DIAGRAMS (CONT.)
