Bard CompleteStat CS9B-THOA - Wiring Diagram 13; Wiring Diagram 14

Manual 2100-684
Page 24 of 25
CompleteStat
TM
WIRING DIAGRAMS (CONT.)
CompleteStat
TM

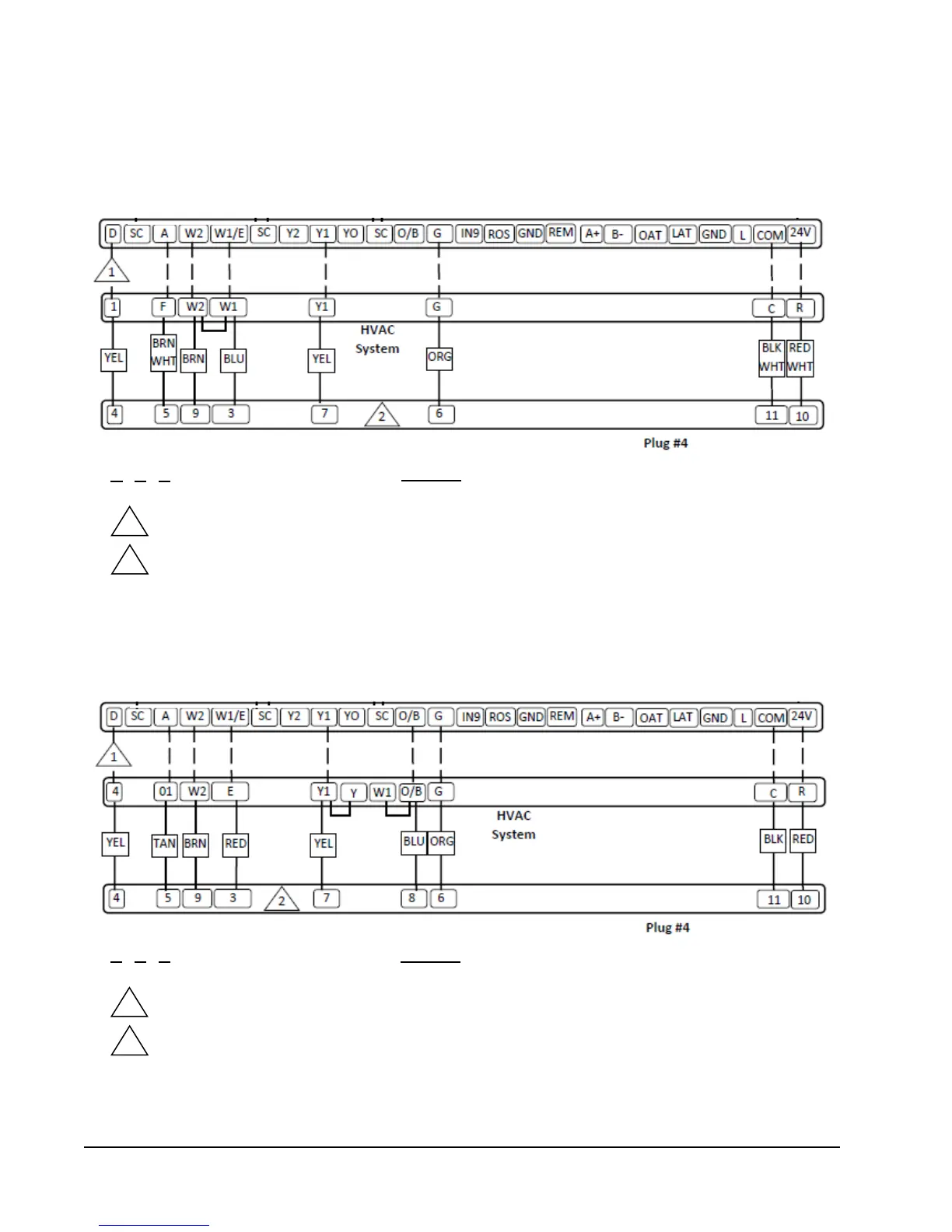

WIRING DIAGRAM 13
Q-TEC QA**/Q**A Series 1 Stage Air Conditioner with or without Dehumidification and Ventilation, No Economizer
WIRING DIAGRAM 14
Q-TEC QH**/Q**H Series 1 Stage Heat Pump with or without Dehumidification and Ventilation
Field-installed wires and jumpers Factory-installed wires and jumpers
Q Series with factory-installed thermostat had no terminal board and were wired directly from Plug #4.
Use provided colors to wire CompleteStat.
2
Wire for dehumidification units only
1
Field-installed wires and jumpers
Factory-installed wires and jumpers
Q Series with factory-installed thermostat had no terminal board and were wired directly from Plug #4.
Use provided colors to wire CompleteStat.
2
Wire for dehumidification units only
1
