Bard CompleteStat CS9B-THOA - Wiring Diagram 5; Wiring Diagram 6

Manual 2100-684
Page 19 of 25
CompleteStat
TM

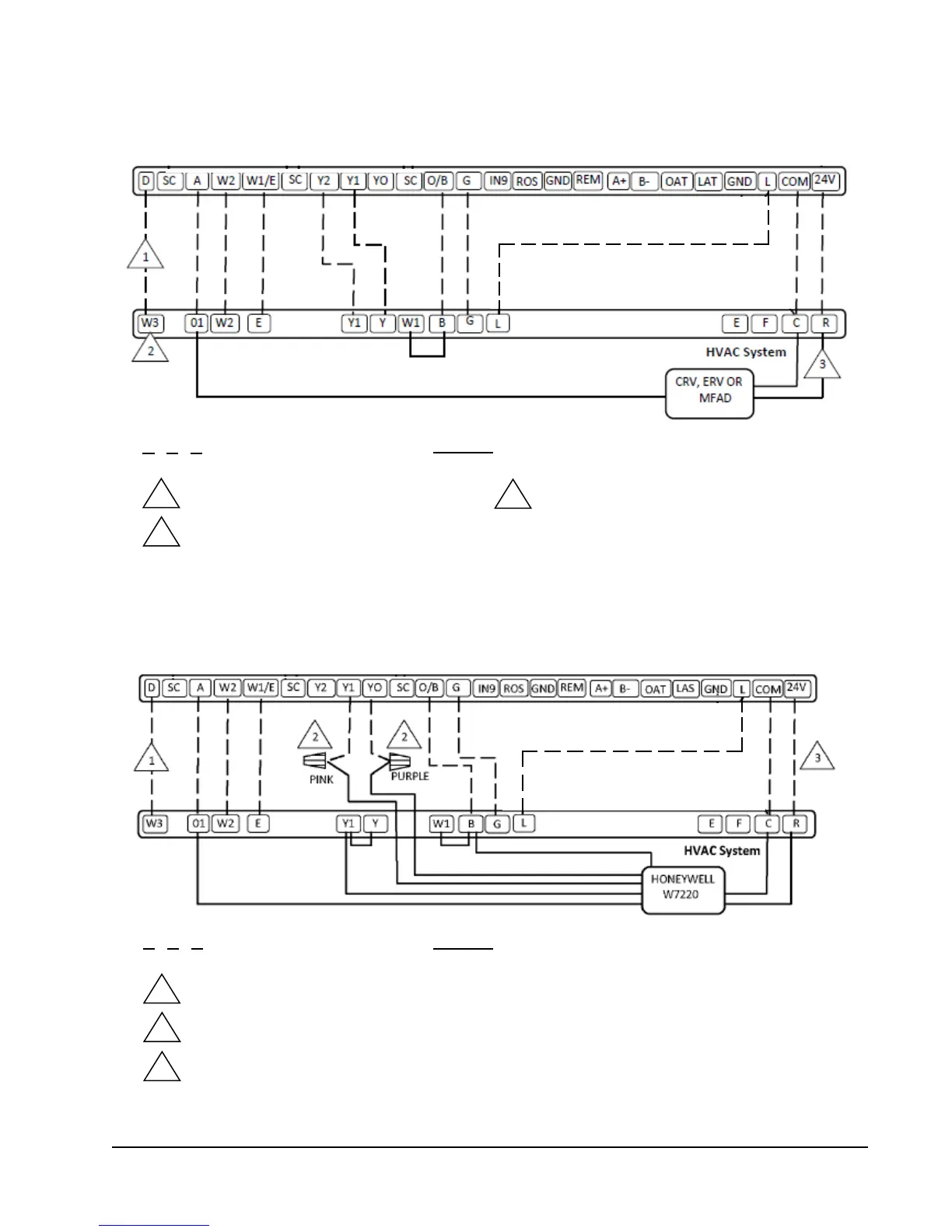

WIRING DIAGRAM 5
Heat Pump 2 Stage, with or without Dehumidification and Ventilation
JADE
TM
CompleteStat
TM
WIRING DIAGRAM 6
Heat Pump 1 Stage with Honeywell W7220 Jade
TM
Control Economizer, with or without Dehumidification
Field-installed wire nut on 9 EER W**A2, A1 units. For W**AA units, consult unit installation instructions.
2
Field-installed wires and jumpers
Factory-installed wires and jumpers
Wire for dehumidification units only
1
CompleteStat programmed for damper/economizer: Enable/Disable
3
Wire for dehumidification units only
2
Field-installed wires and jumpers
Factory-installed wires and jumpers
1
CH*S Series heat pumps use “DH”
dehumidification terminal
3
Wire not used on MFAD ventilation option
