Bard CompleteStat CS9B-THOA - Wiring Diagram 9; Wiring Diagram 10

Manual 2100-684
Page 21 of 25
CompleteStat
TM

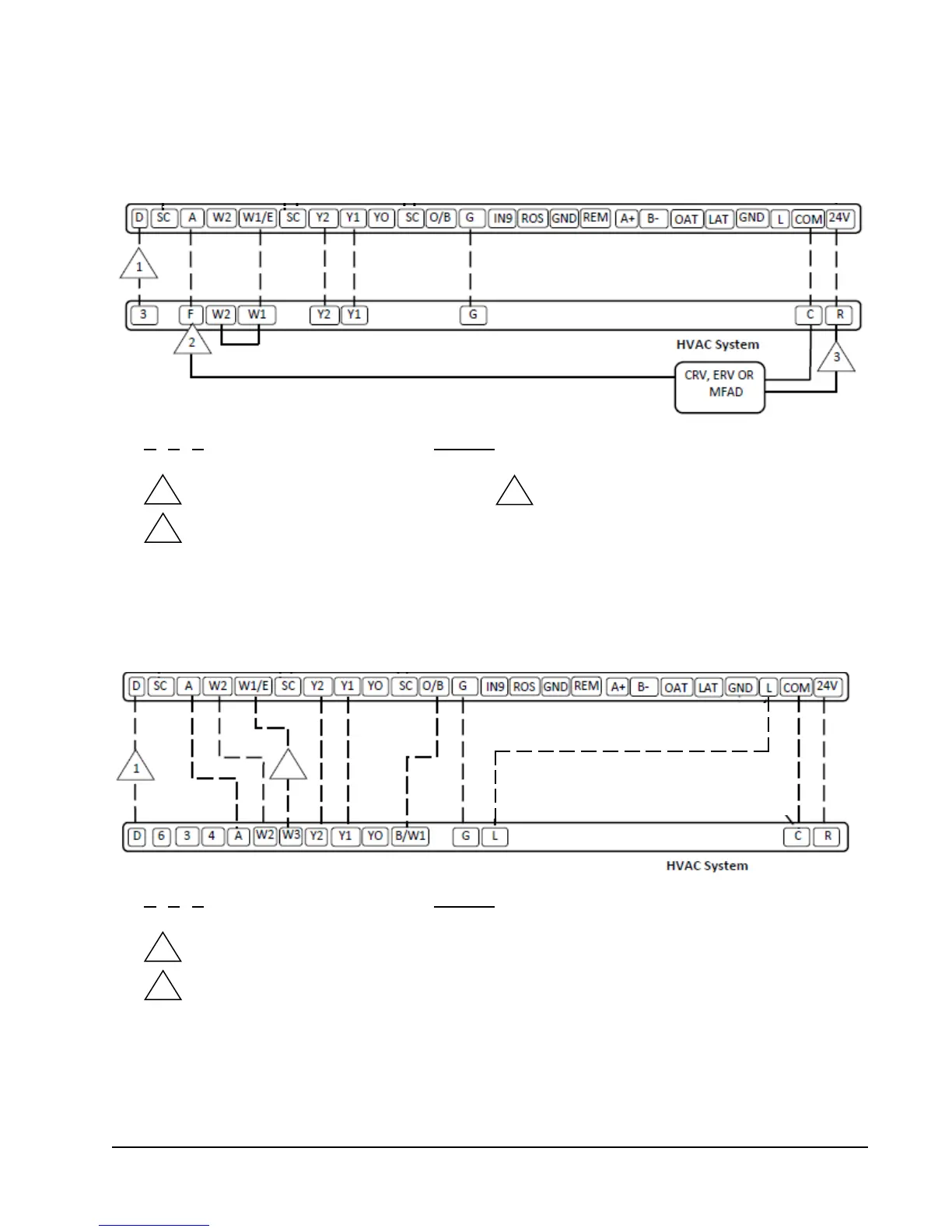

WIRING DIAGRAM 9
Gas/Electric 1H/2C, with or without Dehumidification and Ventilation, No Economizer
CompleteStat
TM
WIRING DIAGRAM 10
I-TEC 2 Stage Heat Pump Series with No Ventilation
Wire for dehumidification units only
2
Field-installed wires and jumpers
Factory-installed wires and jumpers
1
W**G Series uses “A” terminal for
ventilation
3
Wire not used on MFAD ventilation option
Wire for dehumidification units only
2
Field-installed wires and jumpers
Factory-installed wires and jumpers
1
Wire not needed if auxiliary heat strip
is 10 kW or less
2
