Manual 2100-684
Page 22 of 25
CompleteStat
TM

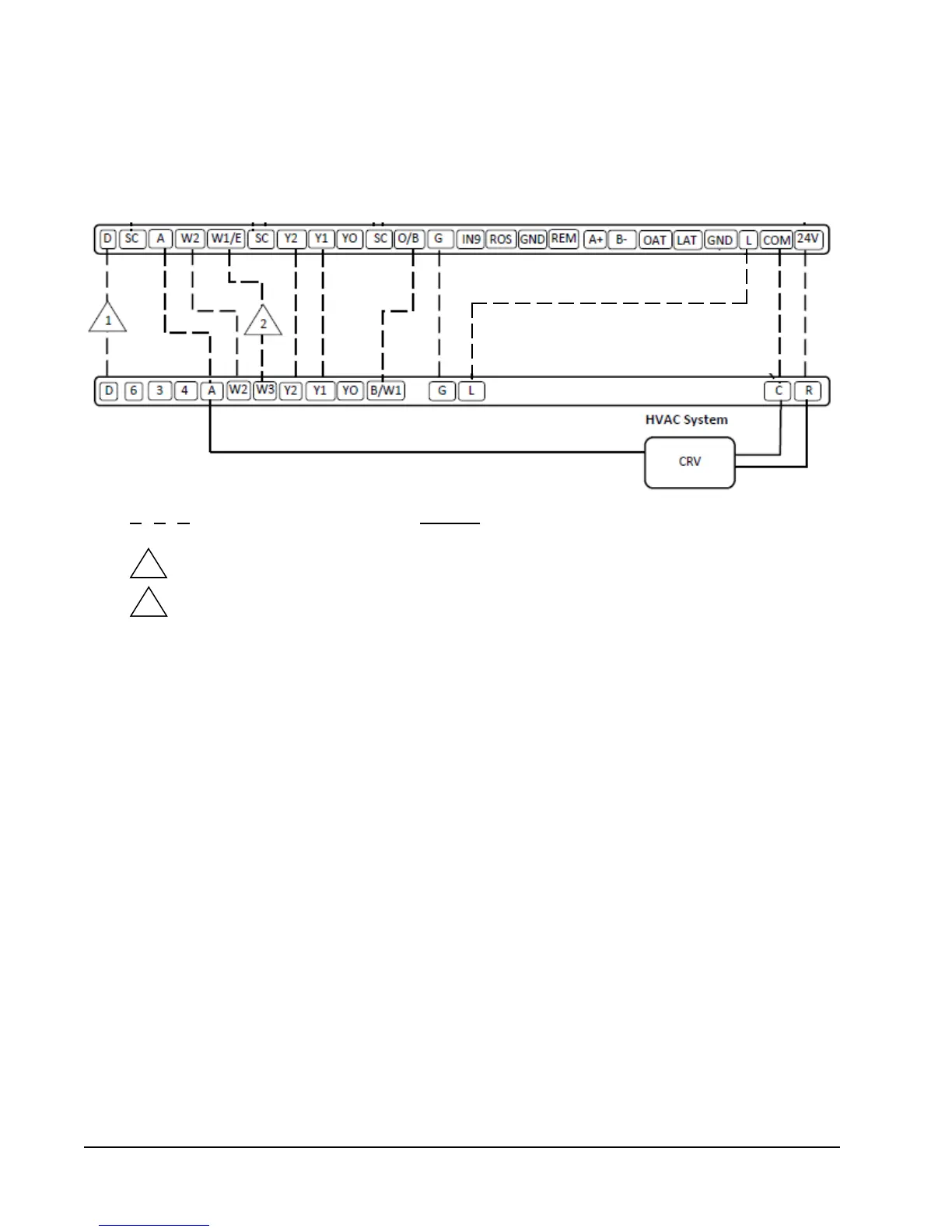

WIRING DIAGRAM 11
I-TEC 2 Stage Heat Pump Series with CRV Ventilation Package
Wire for dehumidification units only
2
Field-installed wires and jumpers
Factory-installed wires and jumpers
1
Wire not needed if auxiliary heat strip
is 10 kW or less
WIRING DIAGRAMS (CONT.)
