Bard CompleteStat CS9B-THOA - Wiring Diagram 12

Manual 2100-684
Page 23 of 25
CompleteStat
TM

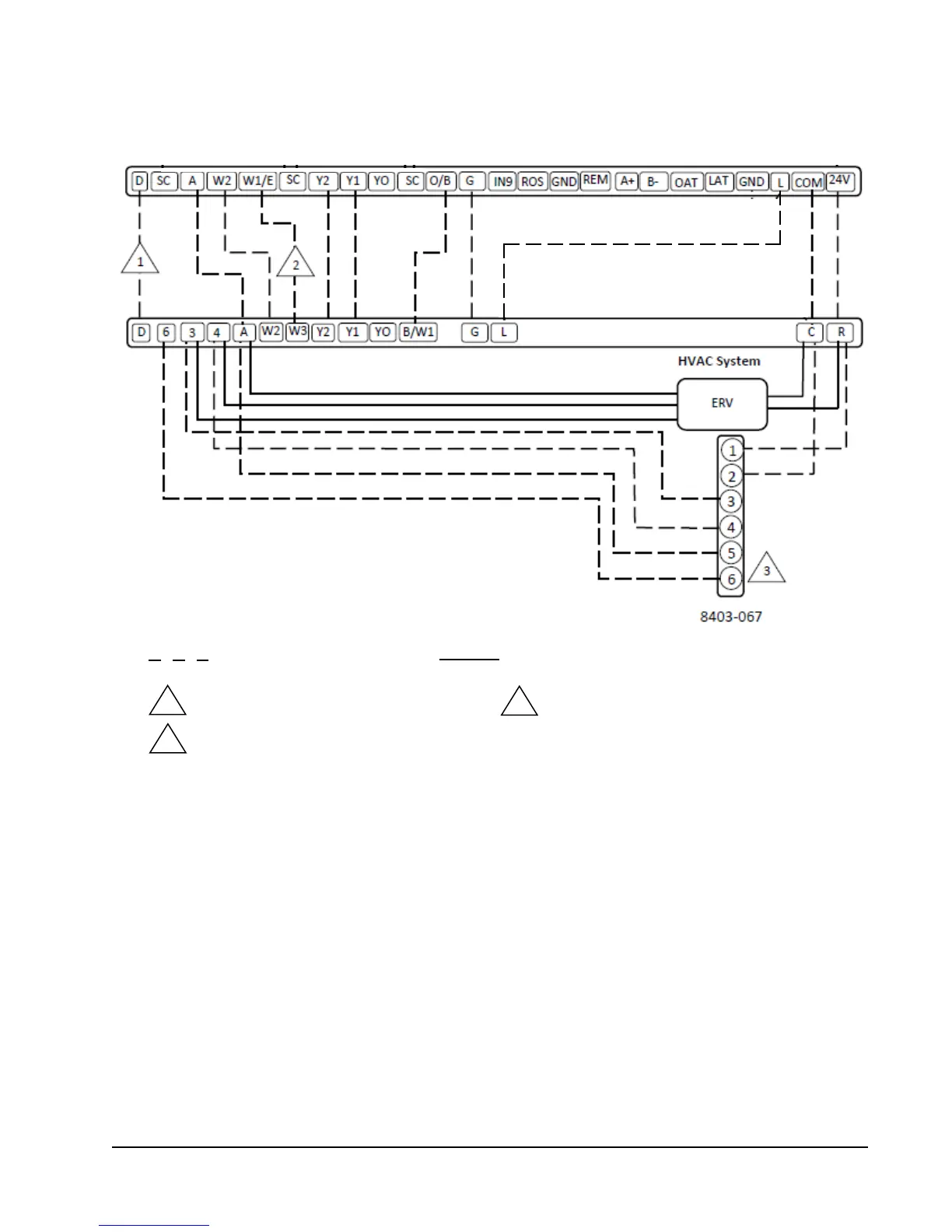

WIRING DIAGRAM 12
I-TEC 2 Stage Heat Pump Series with ERV Ventilation Package and 8403-067 CO
2
Detector (Fully Modulating)
Wire for dehumidification units only
2
Field-installed wires and jumpers
Factory-installed wires and jumpers
1
Wire not needed if auxiliary heat strip
is 10 kW or less
3
8403-067 to be used with non-CO
2
sensing CompleteStat
