Basler ace User Manual

Specifications, Requirements, and Precautions AW00123401000
12 Basler ace USB 3.0
1.4 Mechanical Specifications
The camera housing conforms to protection class IP30 assuming that the lens mount is covered by
a lens or by the protective plastic seal that is shipped with the camera.
1.4.1 Camera Dimensions and Mounting Points
The dimensions in millimeters for cameras equipped with a C-mount lens adapter are as shown in
Figure 9.
Camera housings are equipped with mounting holes on the bottom as shown in the drawings.

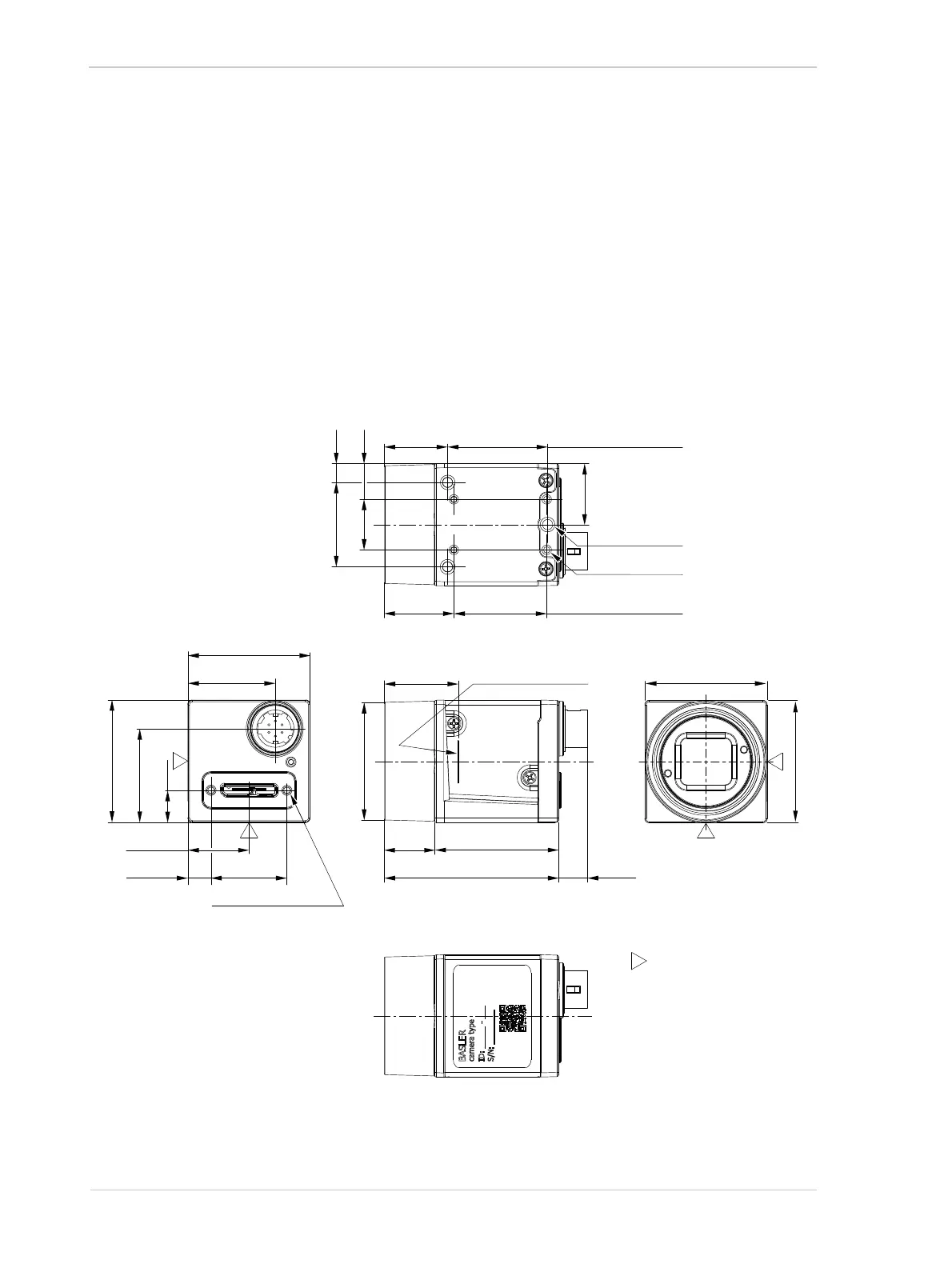

Fig. 9: Mechanical Dimensions (in mm) for Cameras with the C-mount Lens Adapter
16.5
23.7 (dimension for M3)
29
12
22 (dimension for M2)
20.7
Bottom
27.87
12
29.3
17.526
29
6.9
15
Top
Photosensitive surface
of the sensor
14.5
20
5.5
29
3 x M3; 3 deep
Not to Scale
4 x M2; 3 deep
22.2
7.6
29
41.3
18
Reference Plane
2 x M2; 4 deep
4.5
8.5
14.5

Basler ace Specifications

General

Sensor Type	CMOS
Lens Mount	C-mount, CS-mount
Interface	GigE, USB 3.0
Dimensions	29 mm x 29 mm x 29 mm (some models vary slightly)
Operating Temperature	0°C to 50°C
Shutter Type	Global shutter, Rolling shutter
Bit Depth	8-bit, 10-bit, 12-bit
Weight	Approx. 100 g (varies by model)
