DECS-250 Analog Expansion Module
Metering
Analog Inputs
BESTCOMSPlus® Navigation Path: Metering, Status, Inputs, Remote Analog Inputs
HMI Navigation Path: Metering, Status, Inputs, Remote Analog Input Values
The value and status of the remote analog inputs are shown on this screen. The status is TRUE when the
corresponding LED is green. Refer to Figure 32-16. Remote Analog Input #1 is shown.

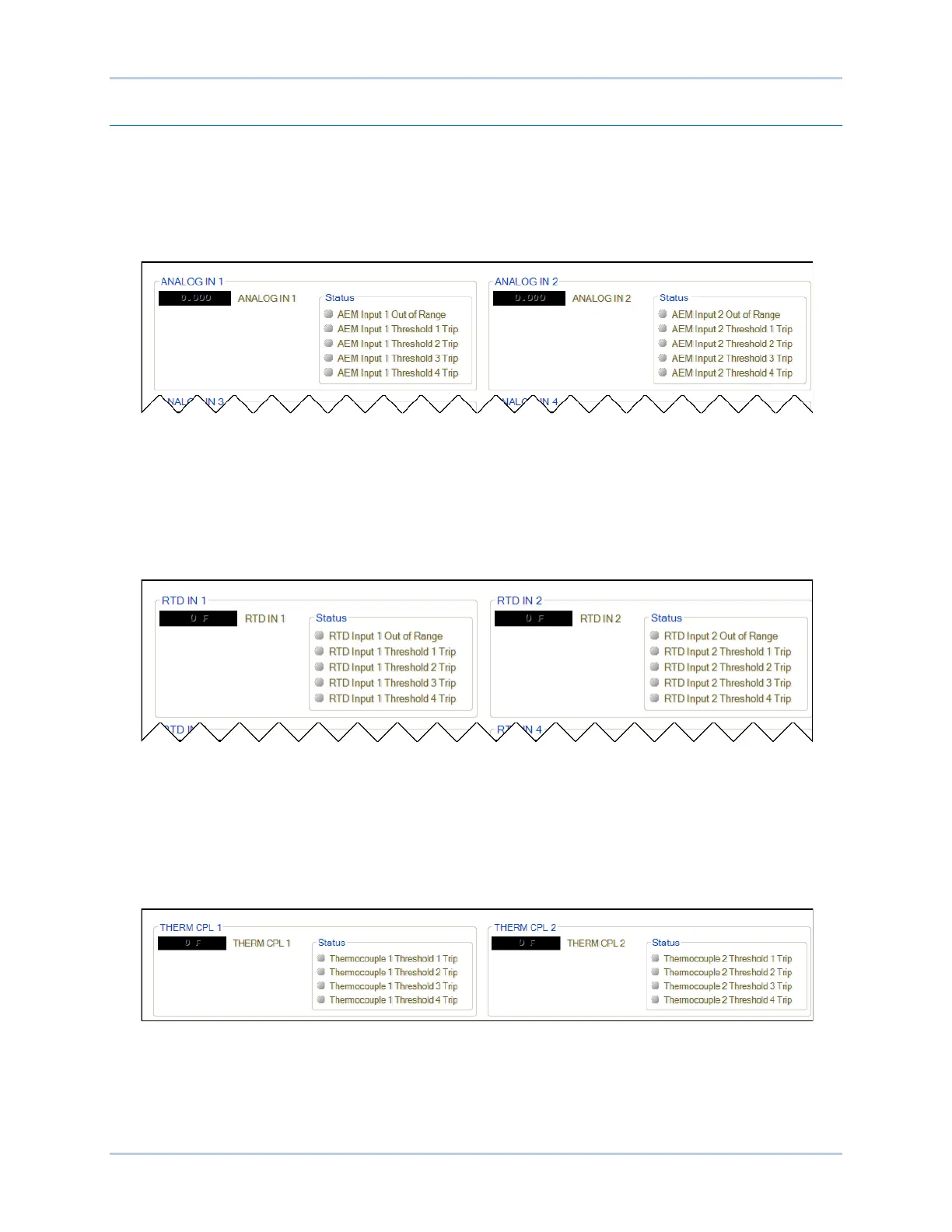

Figure 32-16. Remote Analog Inputs Metering
RTD Inputs
BESTCOMSPlus Navigation Path: Metering, Status, Inputs, Remote RTD Inputs
HMI Navigation Path: Metering, Status, Inputs, Remote Analog Input Values
The value and status of the remote RTD inputs are shown on this screen. The status is TRUE when the
corresponding LED is green. Refer to Figure 32-17. Remote RTD Input #1 is shown.
Figure 32-17. Remote RTD Inputs Metering
Thermocouple Inputs
BESTCOMSPlus Navigation Path: Metering, Status, Inputs, Remote Thermocouple Inputs
HMI Navigation Path: Metering, Status, Inputs, Remote Analog Input Values
The value and status of the remote thermocouple inputs are shown on this screen. The status is TRUE
when the corresponding LED is green. Refer to Figure 32-18. Remote Thermocouple Input #1 is shown.
Figure 32-18. Remote Thermocouple Inputs Metering
Analog Input Values
BESTCOMSPlus Navigation Path: Metering, Status, Inputs, Remote Analog Input Values
HMI Navigation Path: Metering, Status, Inputs, Remote Analog Input Values
