Annex
A. Commissioning using B & R Automation Studio
A.1 General
The fieldbus integrator within the Automation Studio eases integration of Ethernet Powerlink encoders.
A.2 Prerequisites
Set-up project with HW supporting Powerlink V2
Automation Studio Version 3 and later
A.3 Step by step

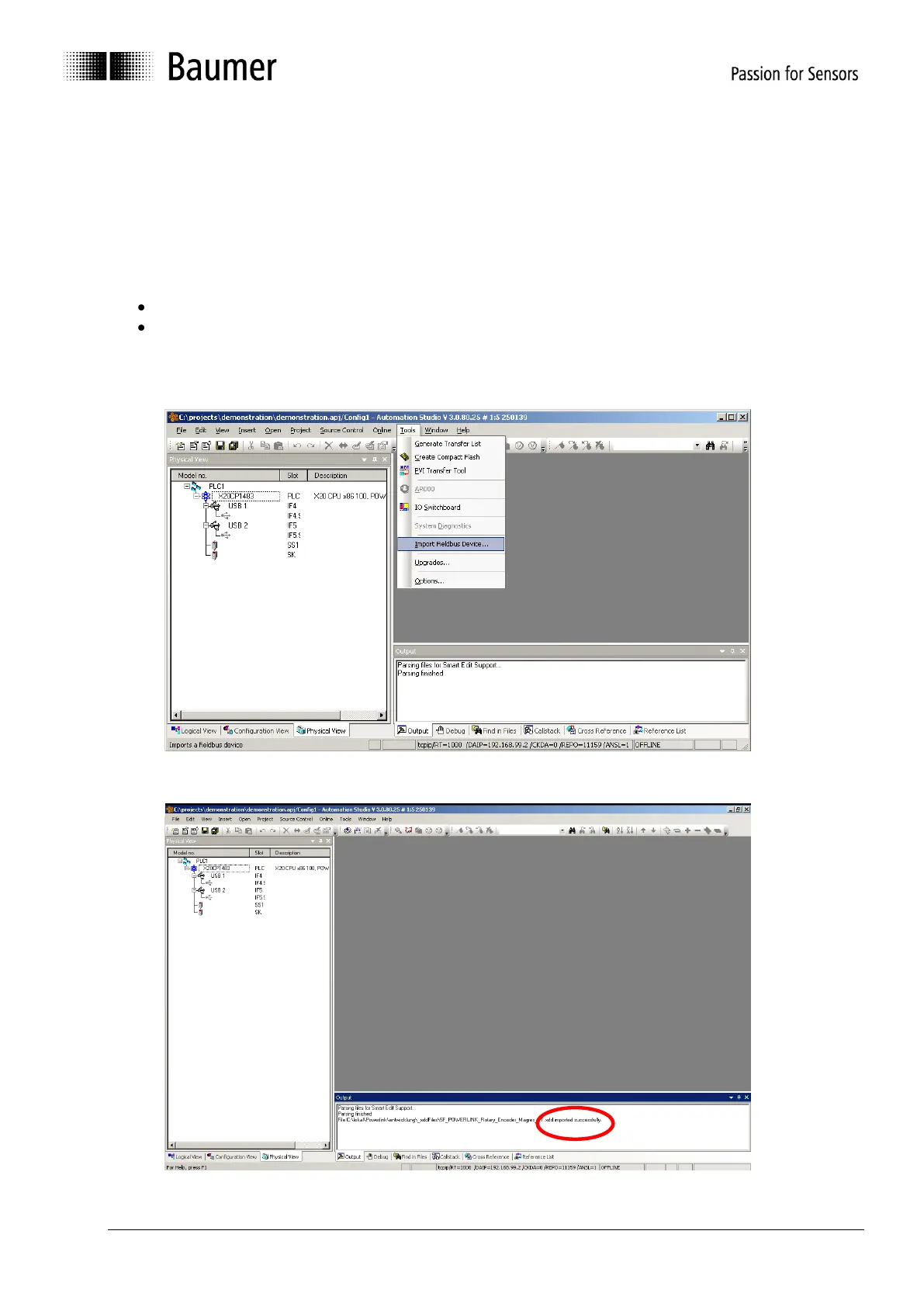

1) Importing the xdd file using menu Tools->Import Fieldbus Device
2) Example: Import file 5F_POWERLINK_Rotary_Encoder_Magres_ST.xdd
3) Verify whether the xdd file has been properly imported
