4 Overview
4.1 General

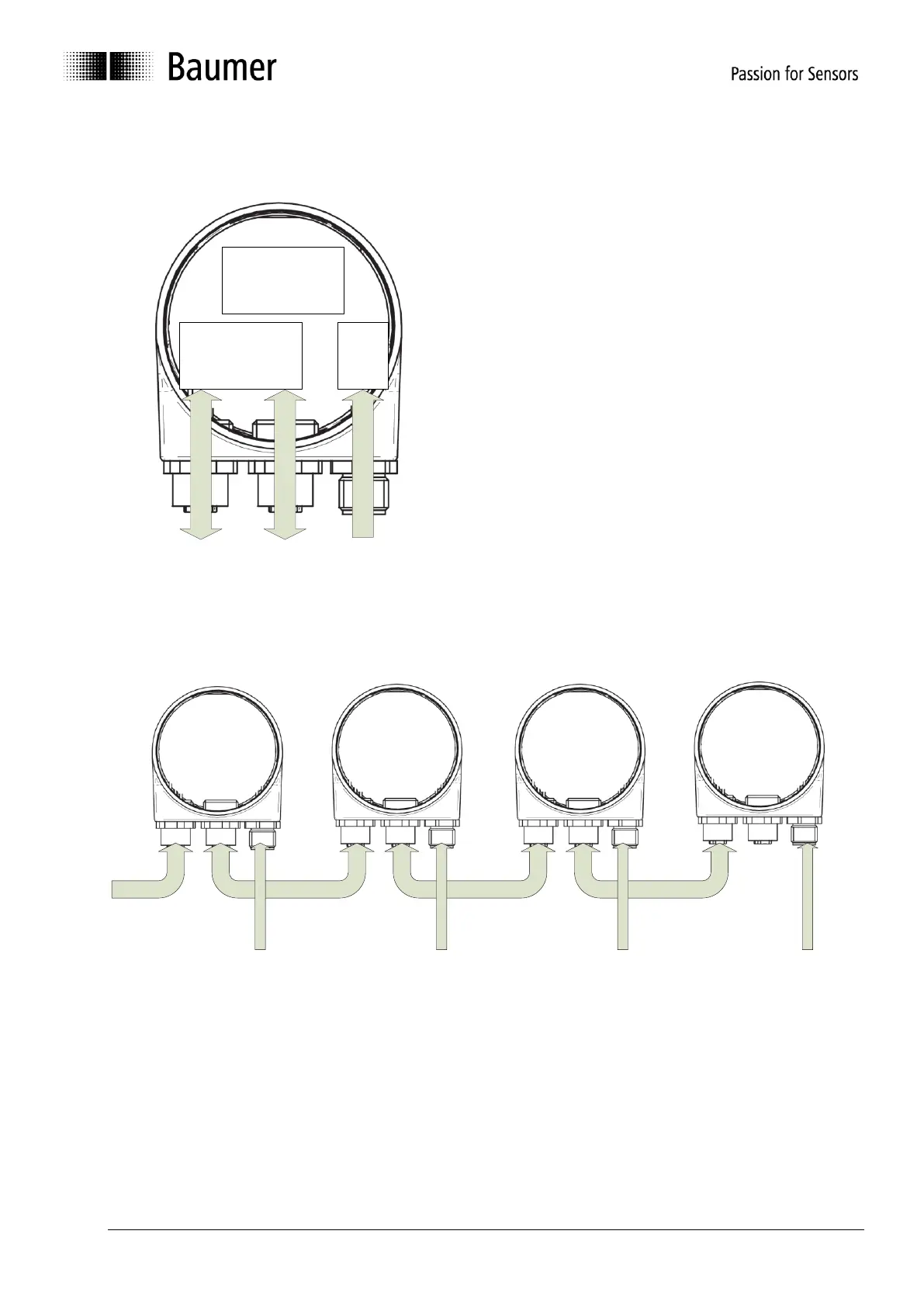

Powerlink
Hub
24 V
Speisung
Basisgeber
Interface
Powerlink Powerlink
24V Speisung
The bus cover which is the communication link between the Powerlink network and the basic encoder
supports encoder profile 406 and Powerlink specification V2.0.
4.2 Daisy Chain
The Powerlink Hub integrated in the bus cover enables formation of a Daisy Chain.
Powerlink Powerlink Powerlink Powerlink
24 V 24 V 24 V 24 V
4.3 Auto-Negotiation
Ethernet interface supports the Auto-Negotiation functionality. Whether a straight or crossed Ethernet line
does not matter, direct connection to the control without any Ethernet hubs is also feasible using any optional
cable.
