Baumer Installation instructions | 5
OM20/ OM30 RS485 with Modbus RTU | V1 Operating Manual 19

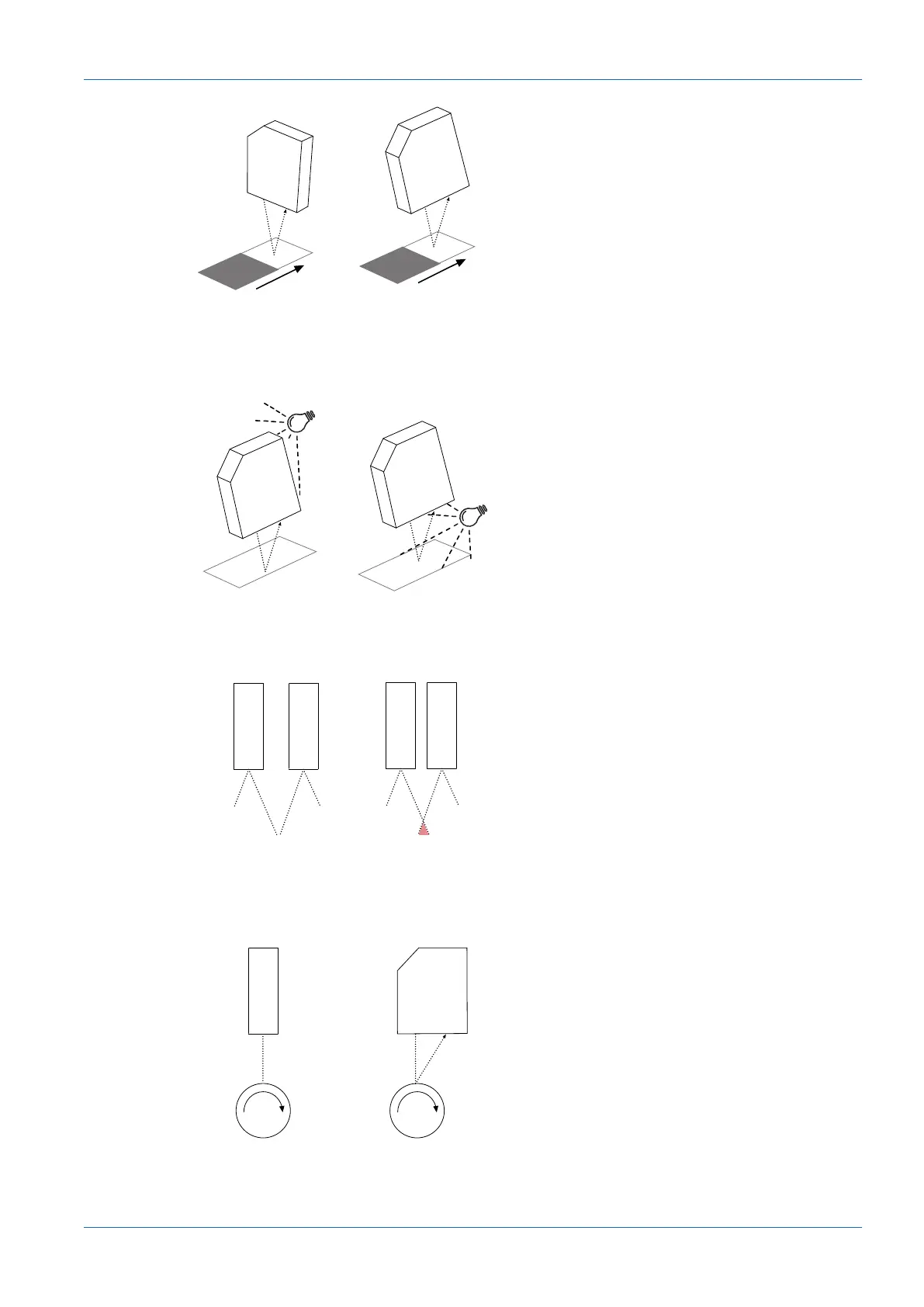

Mounting for measuring objects with colored edges / different reflective characteristics of the
surface:
Align the sensor parallel to the colored edge to prevent measurement errors.
Mounting near strong ambient light:
Prevent the ambient light from entering the detection range of the receiver.
Mounting several sensors close to each other:
Prevent the detection ranges of the receivers from overlapping. Only the sensor’s own laser
spot may be in the detection range of the receiver.
Mounting for round measurement objects:
Align the sensor on the same axis as the measurement object to prevent reflections.
