Baumer Functions | 8
OM20/ OM30 RS485 with Modbus RTU | V1 Operating Manual 39
Window mode (switching output behavior)
Positive hysteresis:
High
Low
Level
Hysteresis
Switching point P2
Active high level
Switching point P1
Hysteresis
Window

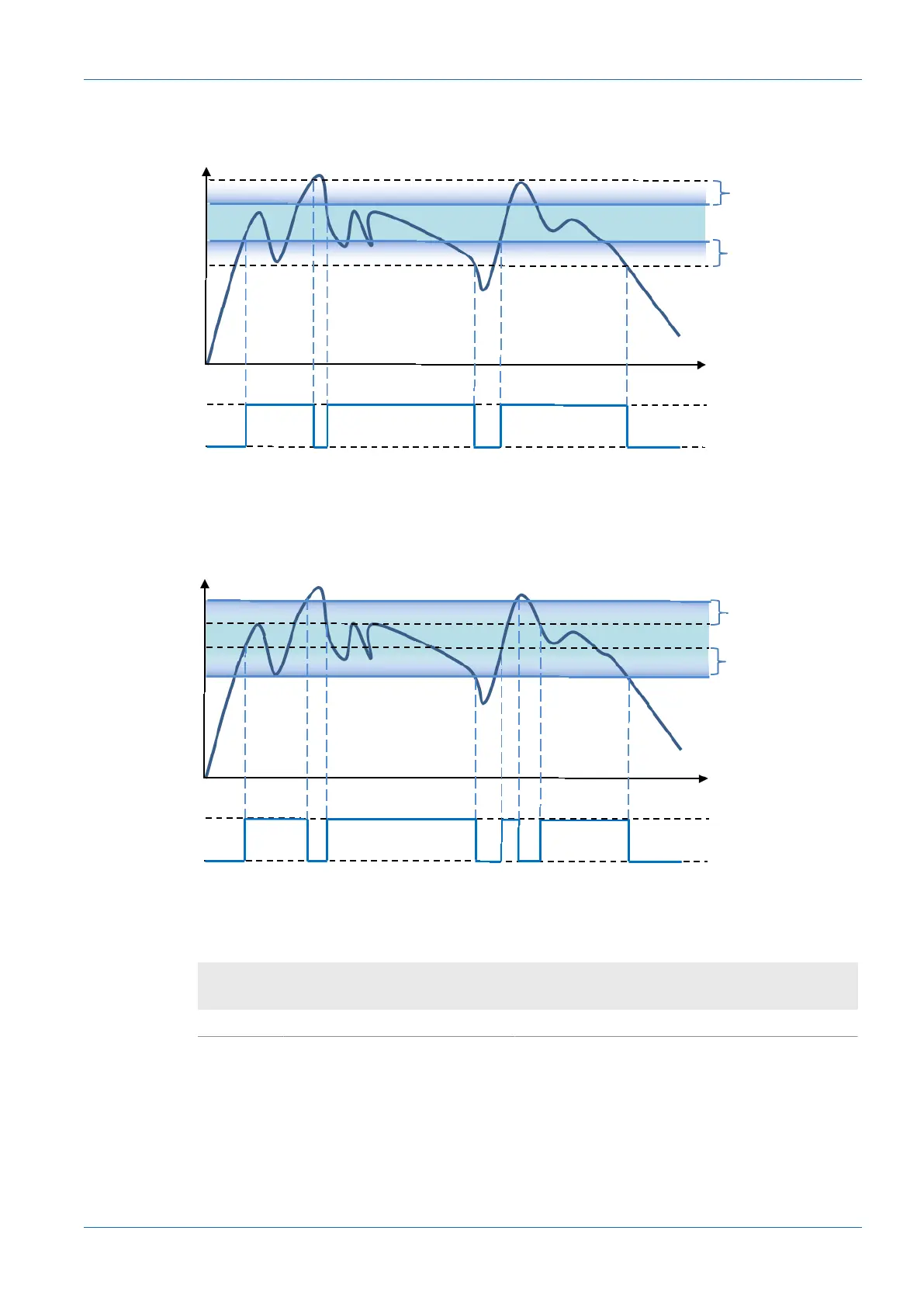

Ill.19: Behavior of the switching output in window mode (positive hysteresis)
Negative hysteresis:
High
Low
Level
Hysteresis
Switching point P2
Active high level
Switching point P1
Hysteresis
Window
Ill.20: Behavior of the switching output in window mode (negative hysteresis)
Modbus RTU command – holding register: hysteresis
Address 306 – hysteresis:
Address Access
Number of
registers Data type Description
306 - 307 Read/write 2 float32_t Hysteresis [mm]
