8 | Functions Baumer
38 Operating Manual OM20/ OM30 RS485 with Modbus RTU | V1
This results in a left aligned hysteresis. When the object to be measured nears the switch-
ing points from outside of the window, the switching output remains deactivated until a dis-
tance of 201.5mm and 298.5mm. When the object to be measured nears the switching
points from the inside of the window, the switching output remains active until 200mm and
300mm (parameterized switching points).

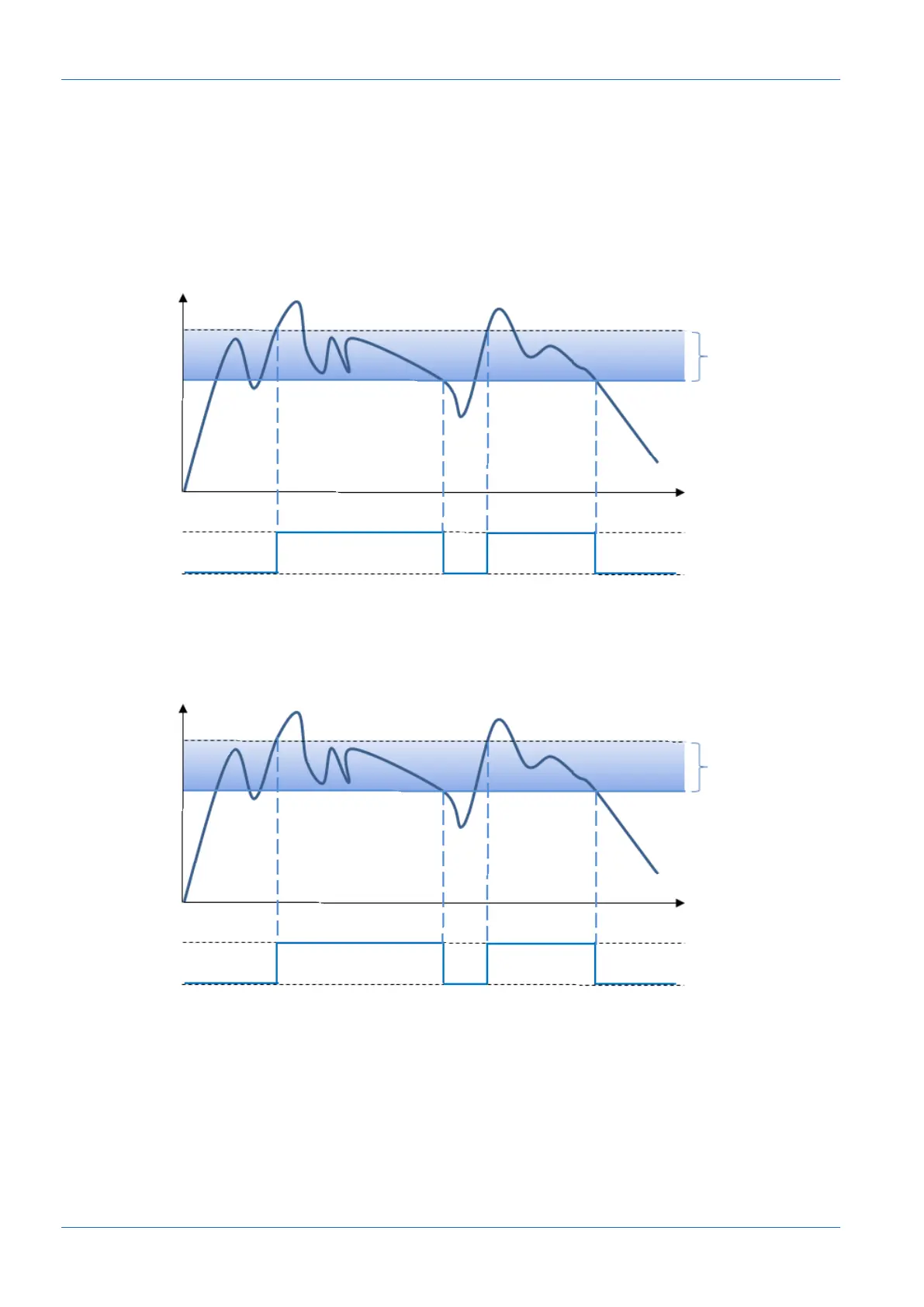

Point mode (switching output behavior)
Positive hysteresis:
High
Low
Level
Hysteresis
Switching point P1
Active low level
Ill.17: Behavior of the switching output in point mode (positive hysteresis)
Negative hysteresis:
High
Low
Level
Hysteresis
Switching point P1
Active low level
Ill.18: Behavior of the switching output in point mode (negative hysteresis)
