Baumer OM20 User Manual

Baumer Description | 3
OM20/ OM30 RS485 with Modbus RTU | V1 Operating Manual 9
3 Description
3.1 Structure
2
1
3
4
5
OM20 OM30
2
3
1
4
5

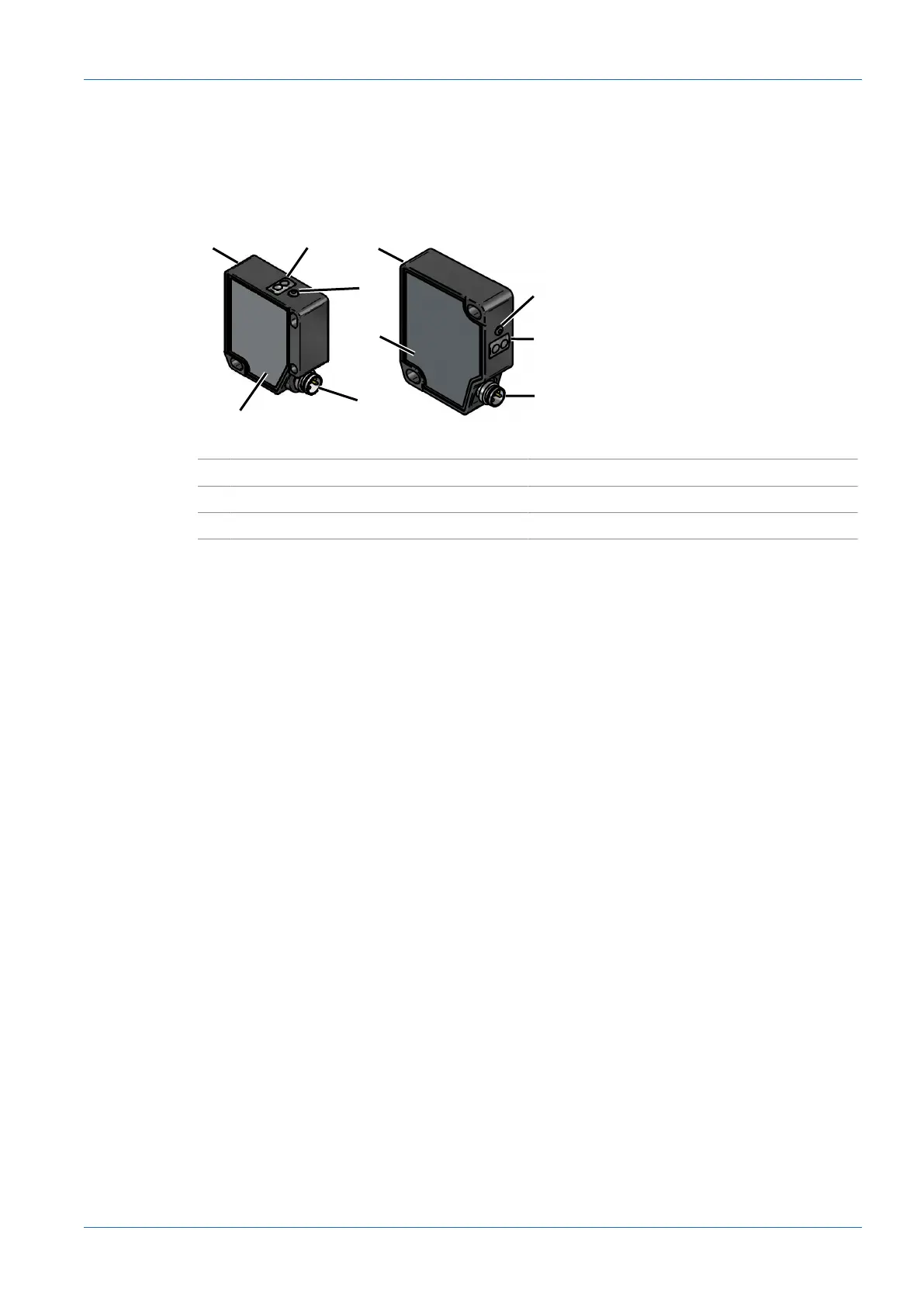

Ill.2: Structure OM20/OM30
1 Sensor LEDs 2 Front panel
3 Teach button 4 M8 plug, 4-pin
5 Imprint of laser information & name plate
3.2 General functionality
The sensor measures the distance to an object to be measured by angle calculation (triangula-
tion principle). For this purpose, the sensor projects a laser point on the object to be measured.
This laser point is mapped on the receiver element by the receiving optics. The distance to the
object to be measured is calculated from the location of the image on the receiver element. The
measured distance is provided as a measured value via the following channels integrated in the
sensor:
n
RS485 interface with Modbus RTU protocol
The following options are available to you for parameterizing the sensor:
n
RS485 interface with Modbus RTU protocol
n
Teach button on the sensor

Baumer OM20 Specifications

General

Brand	Baumer
Model	OM20
Category	Measuring Instruments
Language	English
