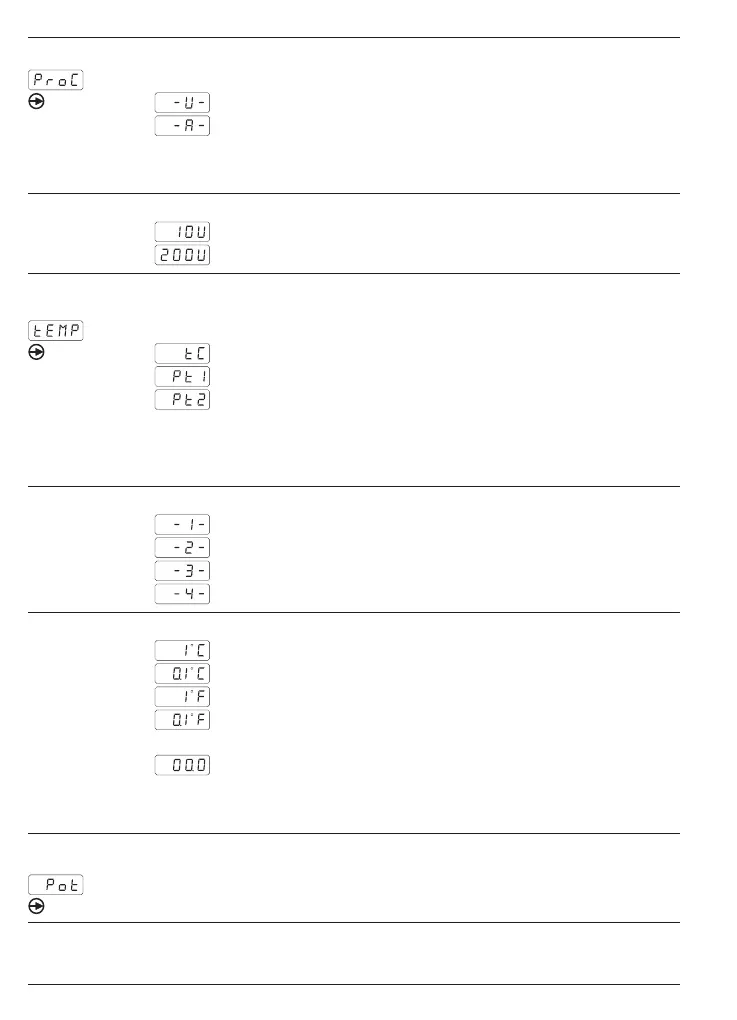

4.1.1 Input process standard signals
Process standard signals
Voltage ±10 V, ±200 V
Current ±0-20 mA (*)
(*) Selecting this option will close function configuration and you
may proceed with chapter 4.2 to continue display configuration.
Voltage range
Standard signal ±10 V
Voltage ±200 VDC
4.1.2 Input temperature
Selection temperature sensor
Thermocouple
Pt100 (*)
Pt1000 (*)
(*) Selecting this option enables configuration of temperature unit,
resolution and offset. Proceed with chapter 4.2 to continue display
configuration.
Select thermocouple
Thermocouple J
Thermocouple K
Thermocouple T
Thermocouple N
Temperature unit and resolution
Degree Celsius
1/10 degree Celsius
Degree Fahrenheit
1/10 degree Fahrenheit
Display Offset
Programming from -9,9 to +99 units, depending on resolution.
The offset allows compensation of a specified discrepancy between
actual value and the measured value.
4.1.3 Input potentiometer
(*) This option will close function configuration and you may pro-
ceed with chapter 4.2 to continue display configuration.
