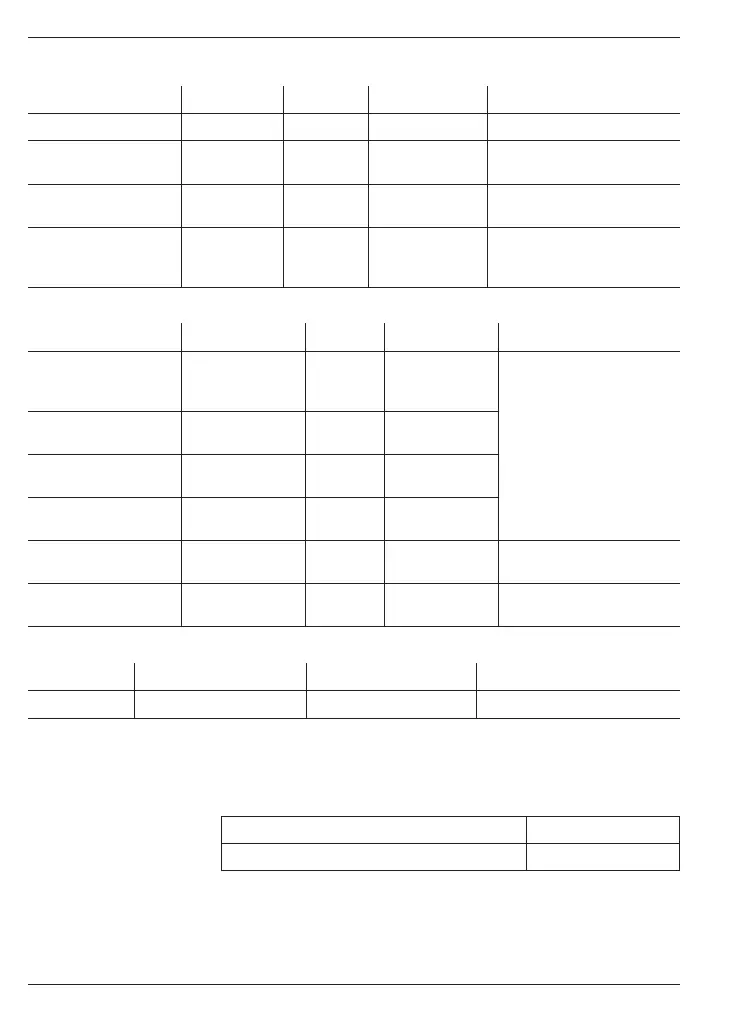

3.2 Specifications inputs and outputs
Analog input
Input Range Resolution Accuracy Specification
Current ±20 mA 2 µA ±0.1 % (+15 µA) Input resistance <20 Ω
Voltage ±10 V
±200 V
1 mV
20 mV
±0.1 % (+6 mV)
±0.1 % (+0.1 V)
Input resistance 1 MΩ
Input resistance 1 MΩ
Potentiometer
100 Ω...100 kΩ 0.01 % ±0.1 % (+0.05 %) Measuring current max.
<0.4 mA
Resistance
measurement
999.9 Ω
999 Ω
50.00 kΩ
0.1 Ω
1 Ω
10 Ω
±0.1 % (+0.7 Ω)
±0.1 % (+6 Ω)
±0.1 % (+35 Ω)
Measuring current max. 2.3 mA
Measuring current max. 230 µA
Measuring current max. 23 µA
Temperature range thermo sensors
Thermocouple Range Resolution Accuracy Specification
Thermocouple J -150.0...+1000.0 °C
-150...+1100 °C
0.1 °C
1 °C
±(0.1 % +0.6 °C) Cold junction compensation
-10...+60 °C
Thermocouple K
-150.0...+1000.0 °C
-150...+1200 °C
0.1 °C
1 °C
±(0.1 % +0.6 °C)
Thermocouple T -150.0...+400.0 °C
-150...+400 °C
0.1 °C
1 °C
±(0.2 % +0.8 °C)
Thermocouple N -150.0...+1000.0 °C
-150...+1300 °C
0.1 °C
1 °C
±(0.1 % +0.6 °C)
Pt100 (3-wire) -150.0...+800.0 °C
-150...+800 °C
0.1 °C
1 °C
±(0.15 % +0.5 °C) Line resistance max. 40 Ω
Measuring current 1 mA
Pt1000 (2-wire) -150.0...+800.0 °C
-150...+800 °C
0.1 °C
1 °C
±(0.15 % +0.5 °C) Measuring current 100 µA
Relay outputs
Relay Switching voltage max. Switching current max. Switching performance max.
2x changeover 250 VAC / 110 VDC 1 A 150 VA / 30 W
3.3 Voltage supply connection
The process display is supply throughout the entire voltage range.
Mains operation of the device should always include the recommen-
ded external fuse.
Operating voltage External protection
12...265 VDC and 20...265 VAC (50/60 Hz) M 1 A
