PA408
www.baumer.com
25

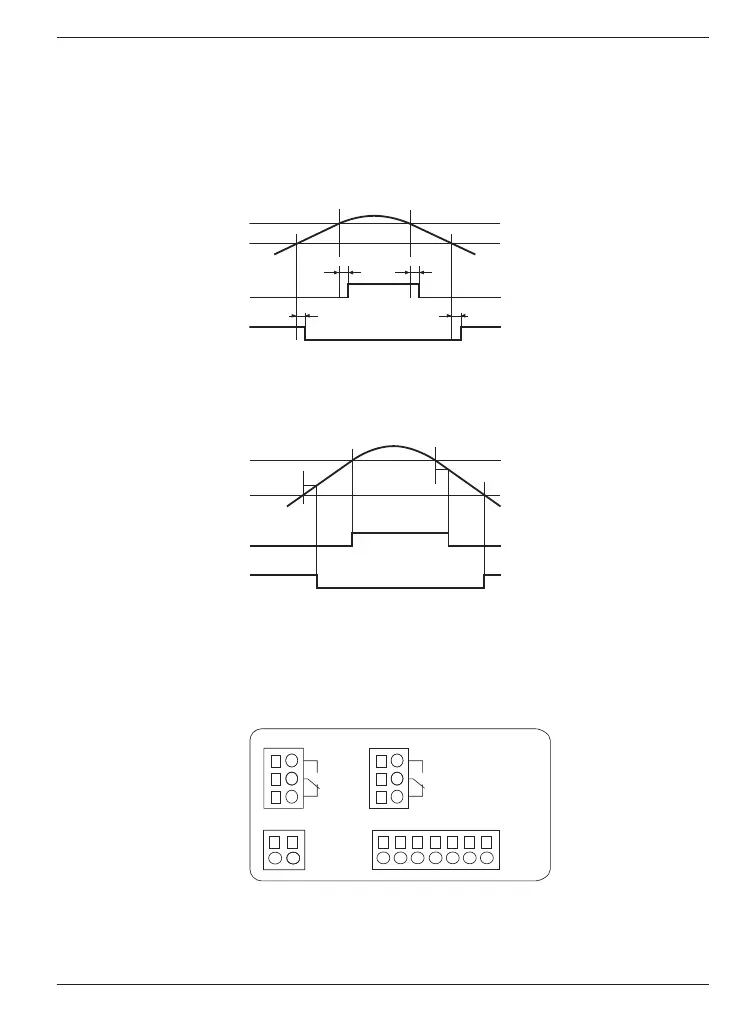

2.3 Limit outputs
The device provides 2 relay limit outputs. Output trigger either at ≥
displayed value or ≤ limit is defined by HIGH or LOW configuration.
The outputs can be configured as time delay or hysteresis.
Limit outputs as time delay
Time delay parameterization is within the range from 0 to 99,9 s and
will be effective both at limit output power on and off.
DelayDelay
DelayDelay
Relay 1 =
HIGH
Relay 2 =
LOW
Limit 1
Limit 2
Asymmetrical hysteresis
Hysteresis is configured in display units from 0 to 9999 and only ef-
fective at limit output power off.
Hysteresis
Hysteresis
Relay 1 =
HIGH
Relay 2 =
LOW
Limit 1
Limit 2
3 Connection
This chapter is about terminal assignment and will present some wi-
ring examples.
3.1 Terminal assignment
6XSSO\YROWDJH
,QSXWV
5HOD\RXWSXW5HOD\RXWSXW
