NavigationandHandling
53

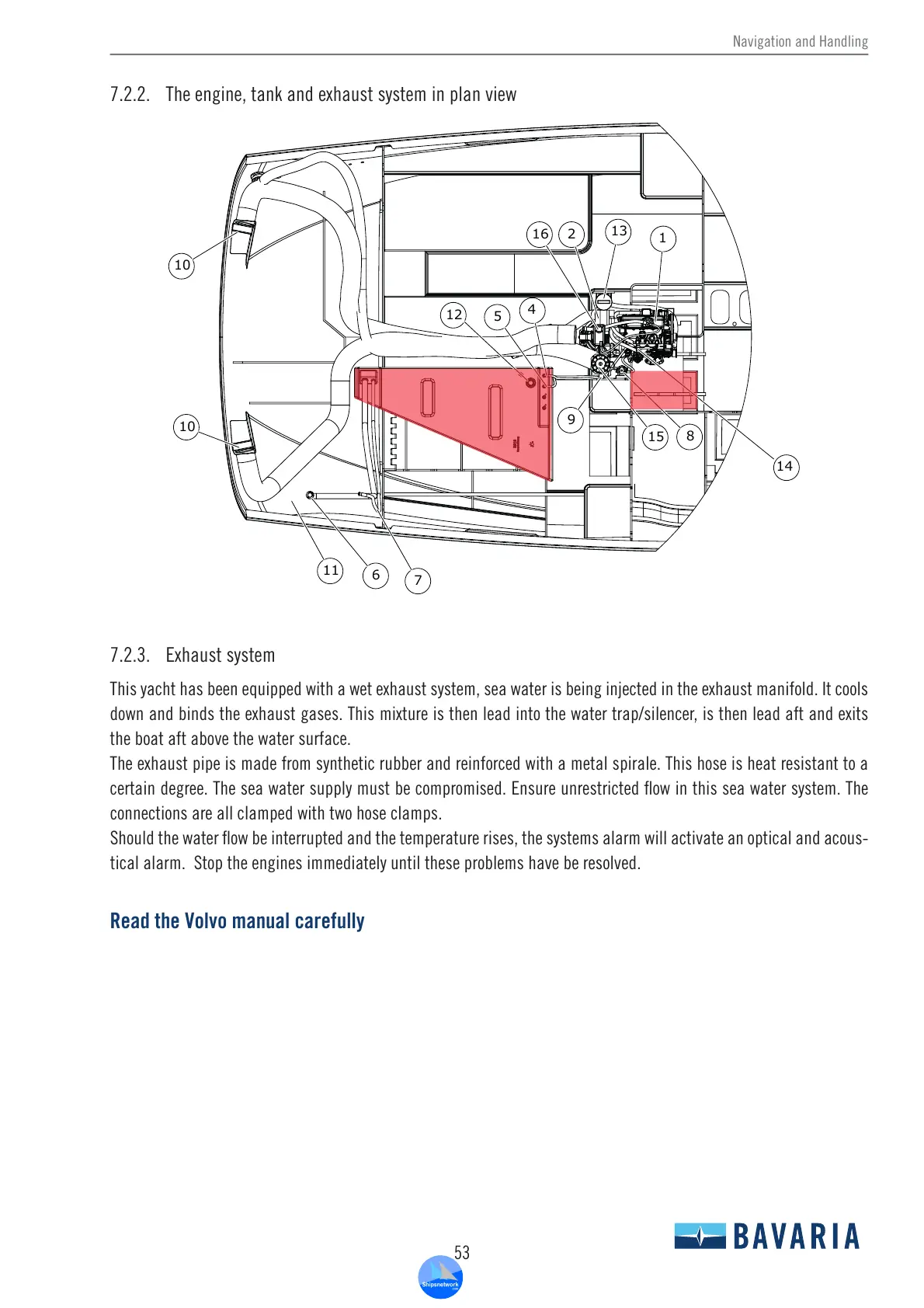

7.2.2. Theengine,tankandexhaustsysteminplanview
15
16
14
13
12
11
10
10
9
8
7
6
5
4
2
1
7.2.3. Exhaust system
Thisyachthasbeenequippedwithawetexhaustsystem,seawaterisbeinginjectedintheexhaustmanifold.Itcools
downandbindstheexhaustgases.Thismixtureisthenleadintothewatertrap/silencer,isthenleadaftandexits
the boat aft above the water surface.
The exhaust pipe is made from synthetic rubber and reinforced with a metal spirale. This hose is heat resistant to a
certaindegree.Theseawatersupplymustbecompromised.Ensureunrestrictedowinthisseawatersystem.The
connections are all clamped with two hose clamps.
Shouldthewaterowbeinterruptedandthetemperaturerises,thesystemsalarmwillactivateanopticalandacous-
tical alarm. Stop the engines immediately until these problems have be resolved.
Read the Volvo manual carefully
