ERROR CODES
Quik Drop is equipped with error-sensing software.
When the Game Error screen appears, the game will not function normally.
ERROR CODES

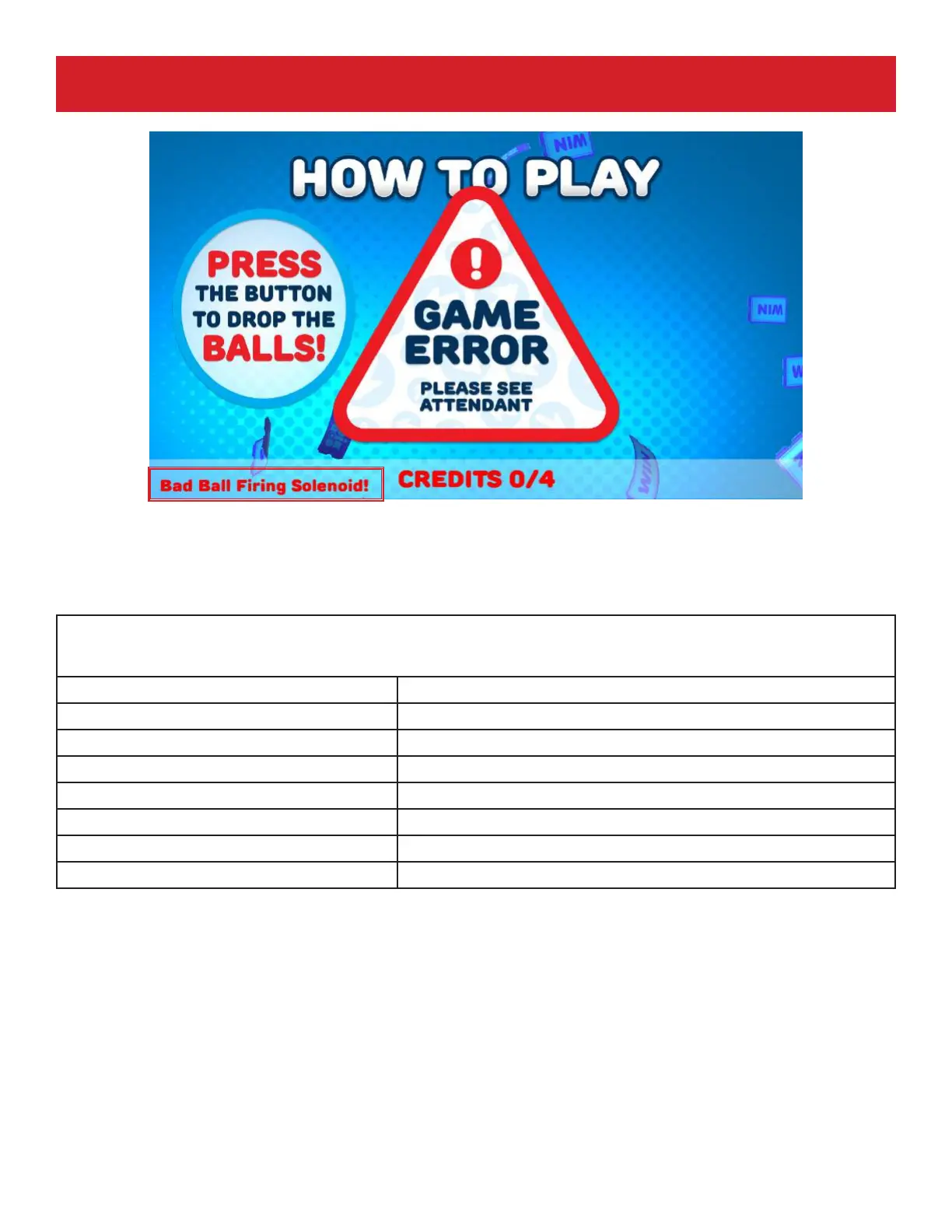

(shown in bottom left corner of the screen)
COMMUNICATION ERROR Lost communication to the micro-controler
BUTTON STUCK Ball drop button has been “ON” too long
BAD FILL SENSOR Sensor at the top of the tube has read “OFF” for too long
BAD BALL COUNT SENSOR Sensor at the bottom of the tube is not counting properly
BAD BALL FIRING SOLENOID Button was hit during gameplay, but no ball was counted
BAD BALL SCORE SENSOR Ball scoring sensor is not triggering properly
BAD CAROUSEL ENCODER Carousel motor encoder sensor is not lined up/faulty
BAD TOP AUGER ENCODER Top auger encoder is not lined up/faulty
See next page for sensor locations.
