HOW TO: ACCESS BALL HOPPER
HOW TO: ADJUST MARQUEE HEIGHT

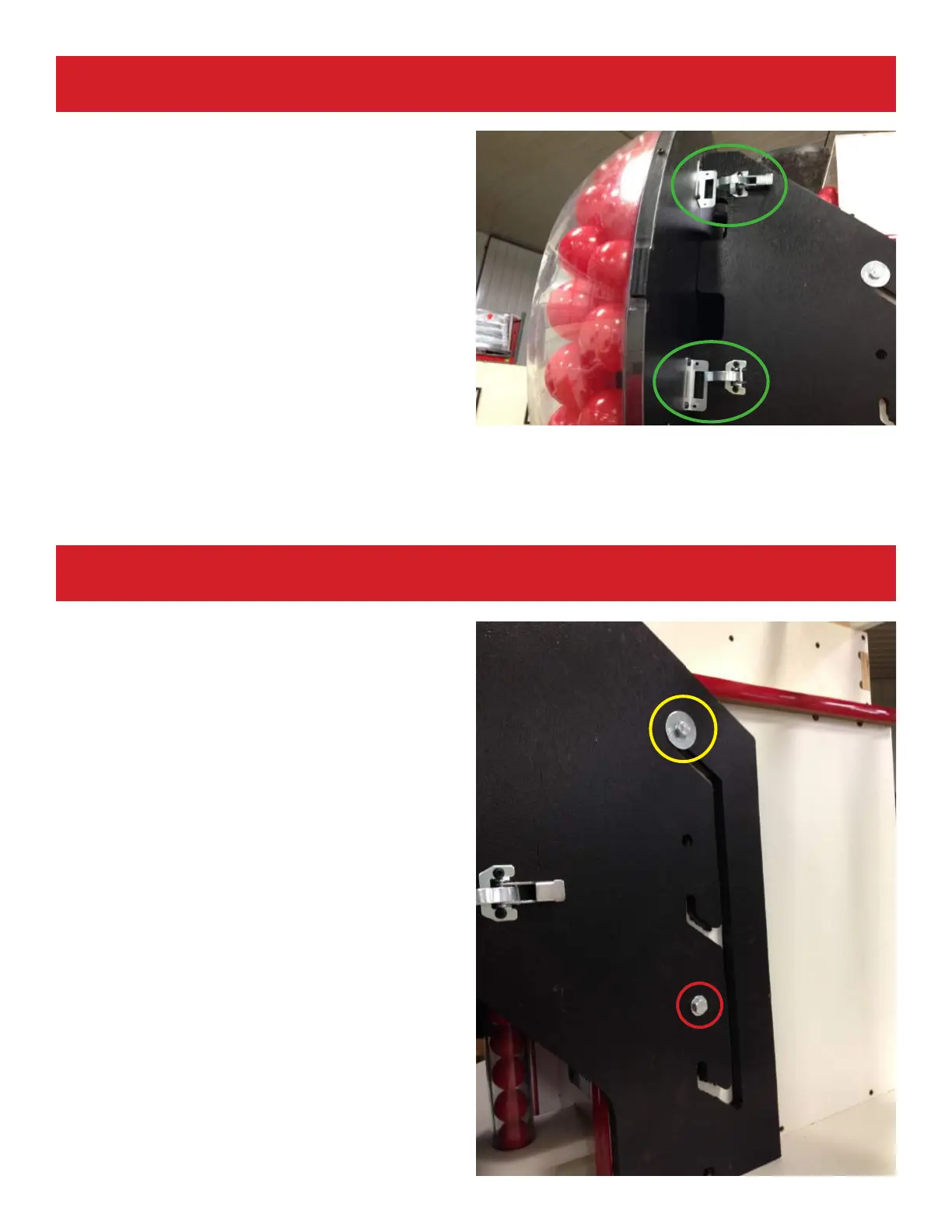

Release the latches on the right side of
the marquee face and swing it open.
This provides access to the ball hopper,
auger, and sensor.
Each side of the marquee support is
equipped with a height adjustment
system, allowing exibility in maximum
height from 109” to 123”.
Remove casters before installing
marquee for 9’ ceiling height (107”).
Loosen the upper bolts on both sides
(remove the lower bolts) and lift the
marquee up, bolts riding in the grooves.
Select your desired height and allow the
marquee to slide back down and rest in
the notches.
Re-tighten the upper bolts and reinsert the
lower bolts to hold the marquee securely.
LOOSEN
REMOVE
