Bay-Tek AXE MASTER User Manual

39
AACB5156
Power Dist. Board
AACE29034
Power to Right
Door Board
AACE29033
Power to Left
Door Board
AACE29055
Ground to
Rear Power
Supply

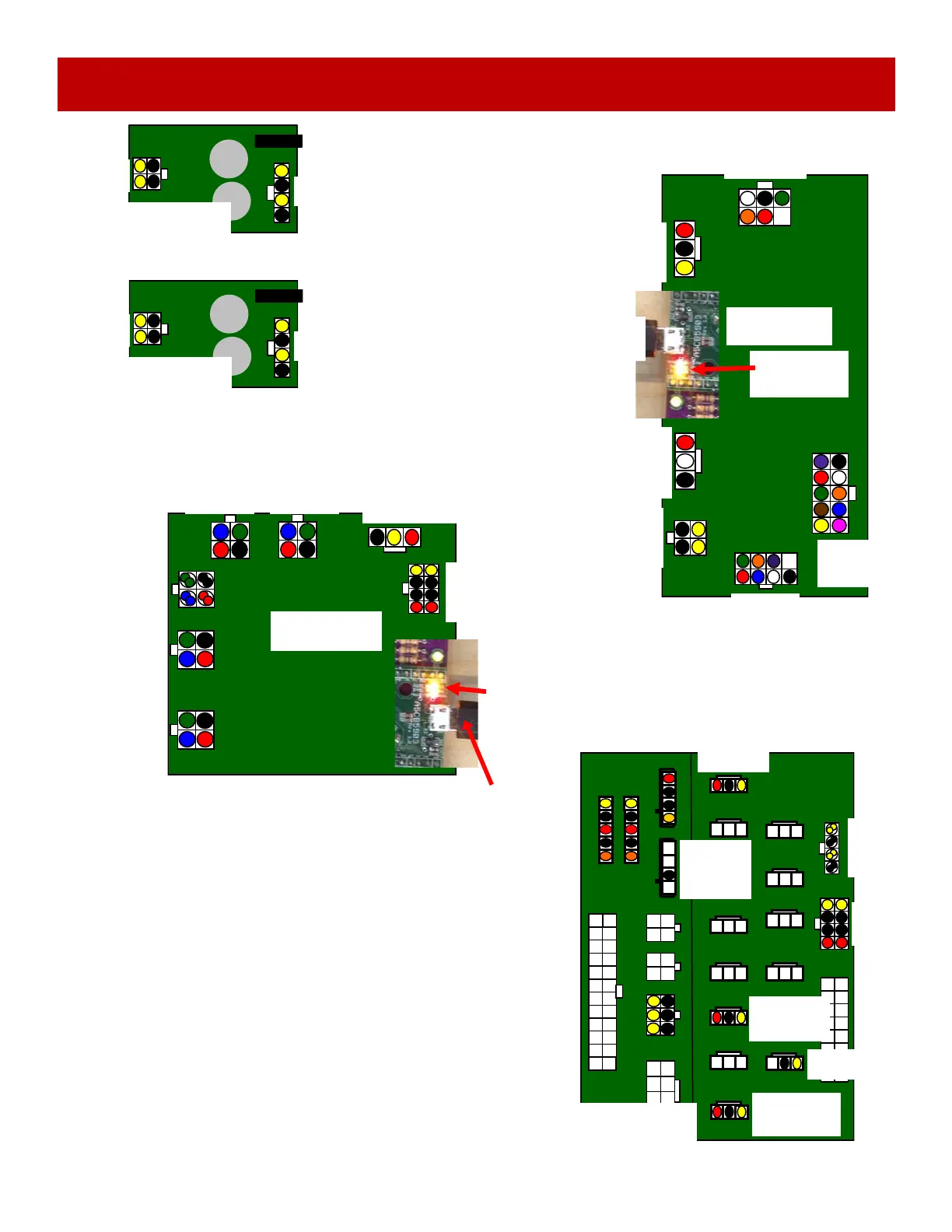

CIRCUIT BOARD LAYOUT
AACB9600A
Audio Amplifier
A5CE2300
Audio Cable
AACE29038
Speakers
AACE29012
12 VDC In
AACB9600A
Audio Amplifier
A5CE2300
Audio Cable
AACE29037
Speakers
AACE29012
12 VDC In
AACE29010
Power to
29000 Board
AACE29012
Power to
Audio
Boards
AACE29011
Power to
CB8001-HH
AACE29061
Marquee Lights
Red and Yellow
Communication
LEDs ON
AACB29000
Control Board
AACE29010
Power In
from Power
Dist. Board
AACE29024
To Conveyor
Control
AACE29036
LED Lights Behind the
Target Only used on
game manufactured
before July 2022
AACE29041
Stick Lights
on Side
Cages
AACE29031
Actuator
Mechanism
AACE29026
Front Console
Player Switches
A5CBL5900
USB communication
to motherboard
Motherboard Location
There are 2 different versions of motherboards
that work with Axe Master.
Refer to the next page (Motherboard Layout)
for more information.
AACB8001-HH
Light Board
AACE29016
Safety Wall LED’s
Only used on game
manufactured before
July 2022
AACE29020
Front
Console
LED’s
AACE29011
Power In
from Power
Dist. Board
A5CBL5900
USB communication
to motherboard
AACE29020
Front
Console
LED’s
AACE29059 or
AACE29078
Arrow LED’s
AACE29073
Target LED’s
Only used on game
manufactured after
July 2022
Red and Yellow
Communication
LEDs ON
AACE29069
Safety Wall LED’s
Only used on game
manufactured after
July 2022
