6
AXE MASTER SETUP
The game will arrive on 3 pallets with many parts. Please inspect the pallets for
shipping damage and report immediately to the freight company if any damage found.
There will be about 5 hours of assembly time needed.
There is an instructional video showing how to set up game.
Please visit: www.baytekent.com/hatchet-hero/game-setup
Tools Needed:
1 step ladder (6 foot) 2 of 9/16” Wrenches 1” Crescent Wrench
3 people 7/16” Wrench
# 3 Phillips screwdriver bit # 2 Square head screwdriver bit
Important:
Portions of this game are heavy, bulky and large. Assembly requires 2 people to lift heavy
components, and ladders that are tall and strong enough to position components to the top of the
game.

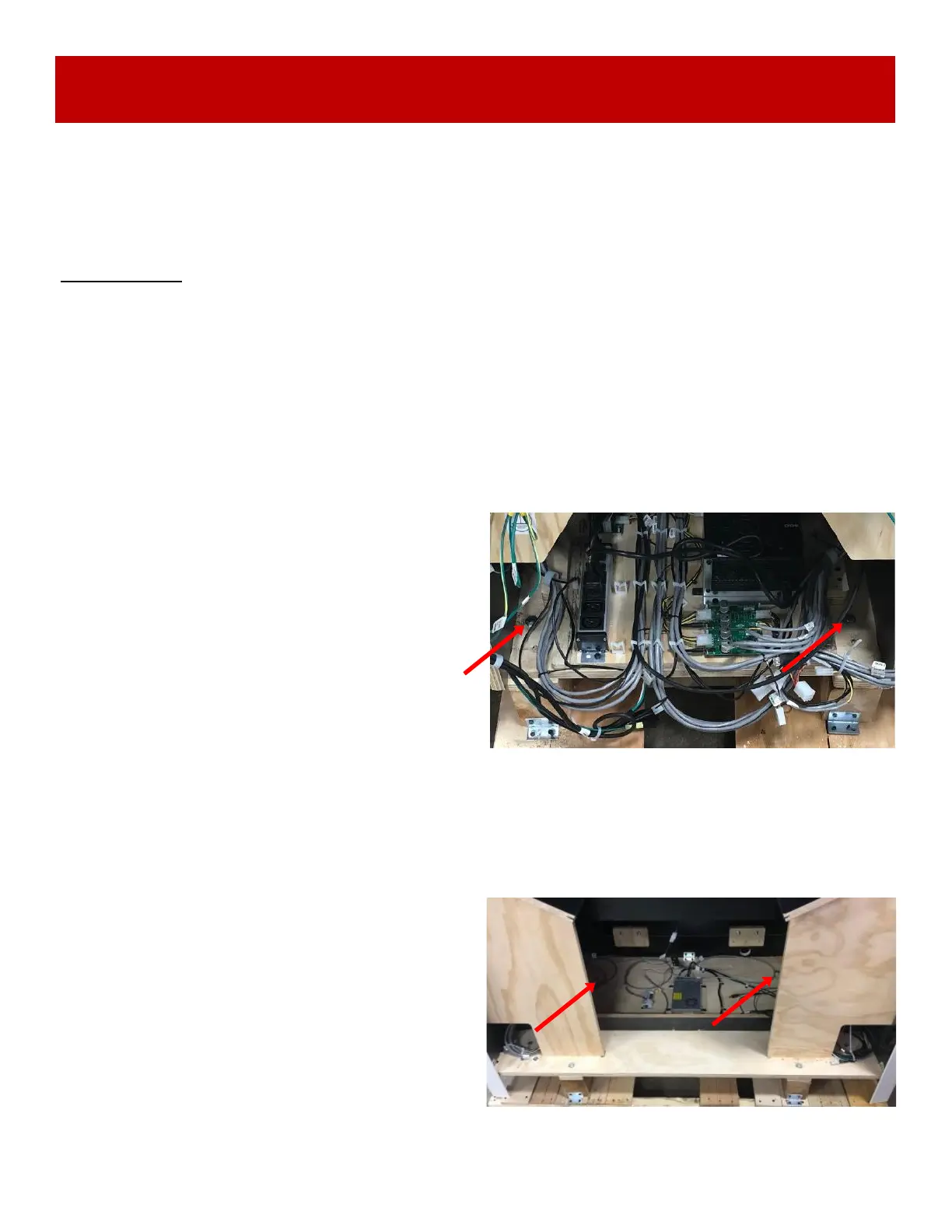

From the small front console pallet:
Remove the monitor housing.
Remove the marquee.
Remove the 2 bolts holding the front console to the
pallet using a 9/16” wrench.
Remove and open the box containing:
Service Manual
3 Axes (there are an additional 3 axes to use when needed.)
Power Cord
Hardware kit (Part # A5KIT-HH/AXM)
From the small rear cabinet pallet:
Remove the 2 of Roof Panels
Remove the Right Cage Assy (labeled #2)
Remove the 2 bolts holding the rear console to the
pallet using a 9/16” wrench.
To Next Page
