Module Status Information
Shows the status of the connected Hubs.
Module 1 is the Spindle Hub:
Normal operating condition is (Spindle Unit Waiting)
If a sensor is blocked, there is a delay to be shown.
Module 3 the Capsule Hub:
Normal operating condition is (Capsule Tree Waiting)
The numbers should be cycling from 0 to 180, and back to 0.
If numbers are not cycling, the carousel is not turning.
If Capsule Tree Door Open, check door interlock switch.
Module 3 the Locker Hub:
Normal operating condition is (Doors Closed and Locked)(0)
If the (0) is a different number, a door is open.
Check switch behind locker through side door.
Reset Printer
If “Print Jobs” is not 0 , touch “Reset Printer” to clear print jobs.
The Prize Hub must then be powered down, wait 10 seconds, and power
back on.
Version Information

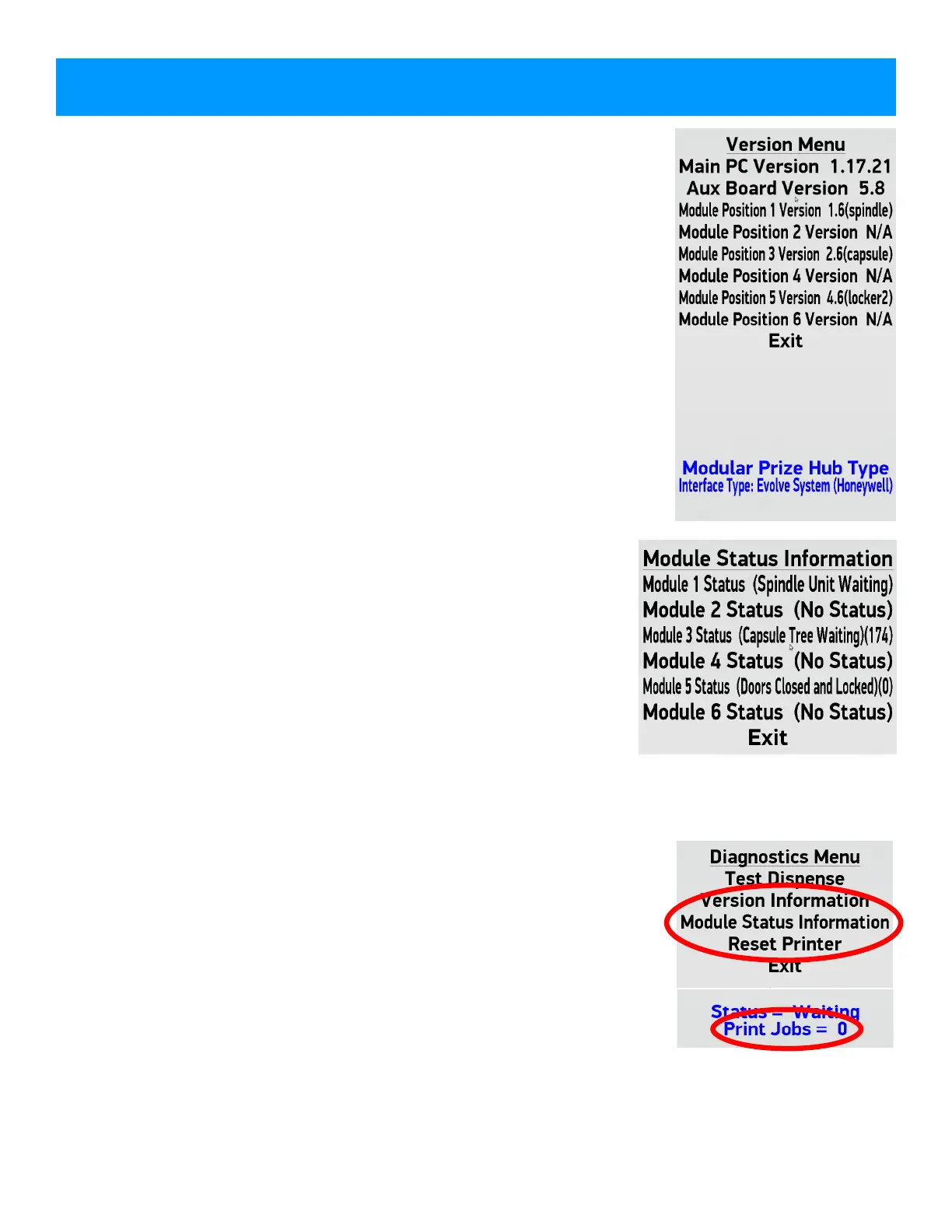

Version Information will bring up the Version Menu.
This will show motherboard software version,
I/O board software version
Attached Hub software versions.
This will also show the selected Kiosk Input type.
