31

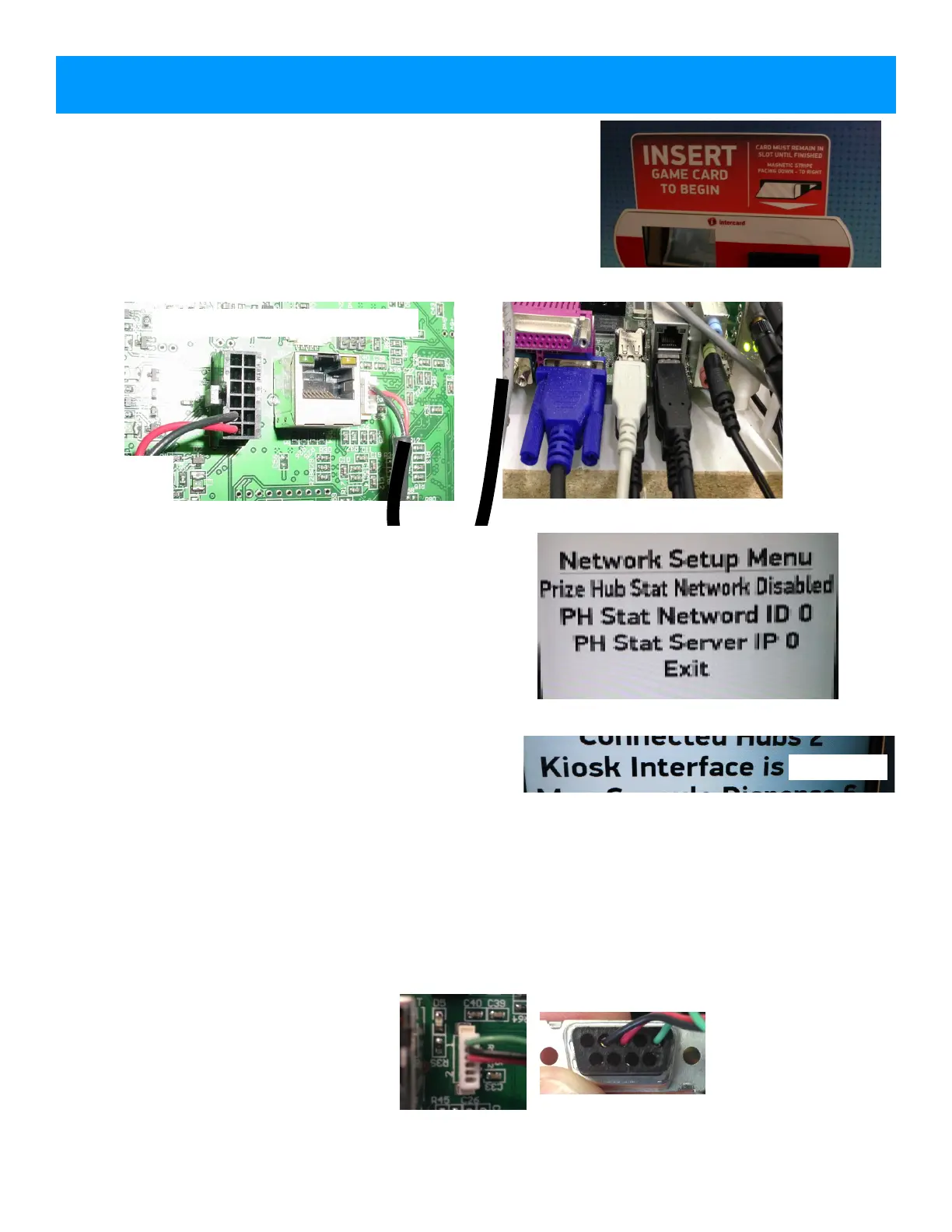

Intercard
Intercard uses an “insert card reader” into which the customer
inserts the card and it stays in reader until the customer is
finished shopping and removes it.
If it is removed before a prize is selected from the Prize Hub,
the tickets are returned to card, and no prize is dispensed.
Mount your card reader according to manufacturer in-
structions, and plug the #95-22116 cable into the serial
connector on the Prize Hub motherboard.
Adjust the Kiosk Interface in the location menu to show
“Intercard”
Enter Network Setup Menu
Please leave the Prize Hub Network disabled.
Set the Card Server. This is IP address of your server.
It should be in a similar format as shown.
Set Port number. This is the port number of your server.
It should be in a similar format as shown.
Wiring pin out of Intercard connectors:
INTERCARD OPTION
Intercard Swiper Circuit Board
12 Volt
Power In
Communication
to Prize Hub
Motherboard
INTERCARD
Part # AAKIT-PH-READERINTERCARD
To Next Page
