38

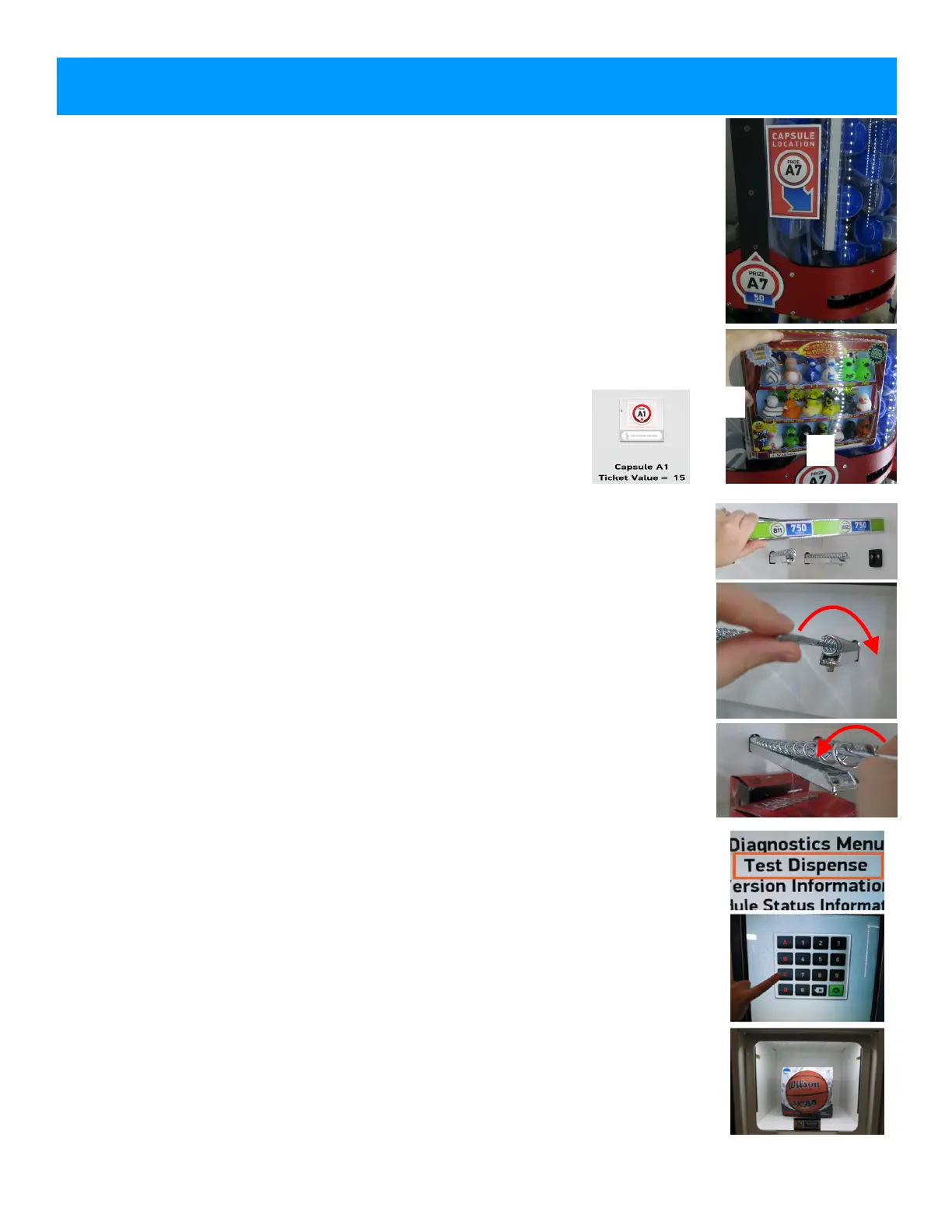

LOADING PRIZES
Capsule Unit
Open the capsule cabinet door.
Rotate the capsule tree to the desired position by turning it slowly by hand.
The bins are identified by the stickers on the plexi, the location is always to the
right of the location markers.
Place capsules in to the hoppers with the metal shovel slide provided.
Be sure to place the matching prize display blister packs into the display slots
between each capsule hopper.
Display dimensions: 8” X 9”
Adjust any ticket value and prize images in the Prize Menu.
Refer to Prize Menu section for instructions.
8”
9”
Spindle Unit
Open the front door of the spindle display case and slide the ticket value bars
up and out of their rests. Set aside for later installation.
Remove the safety rods by turning CLOCKWISE
Hang prizes on the spindles. To avoid time-out dispense failures, try to place
the prizes no more than 3-4 coils apart.
Insert the safety rods OVER the hang tabs of the prizes, and secure by turn-
ing COUNTER-CLOCKWISE.
Adjust any ticket value and prize images in the Prize Menu.
Refer to Prize Menu section for instructions.
Locker Unit
Open the main hub door and enter the menu.
Enter the diagnostic menu and touch Test Dispense to bring up the keypad.
Key in the locations of the prize doors (C1 - C5) and touch the green check
mark to unlock them.
Lift up on the doors and place the prizes inside. The solenoids will automati-
cally lock after 30 seconds.
Make sure the doors close securely and test them again to verify operation.
Adjust any ticket value and prize images in the Prize Menu.
Refer to Prize Menu section for instructions.
Close and lock all doors.
