47

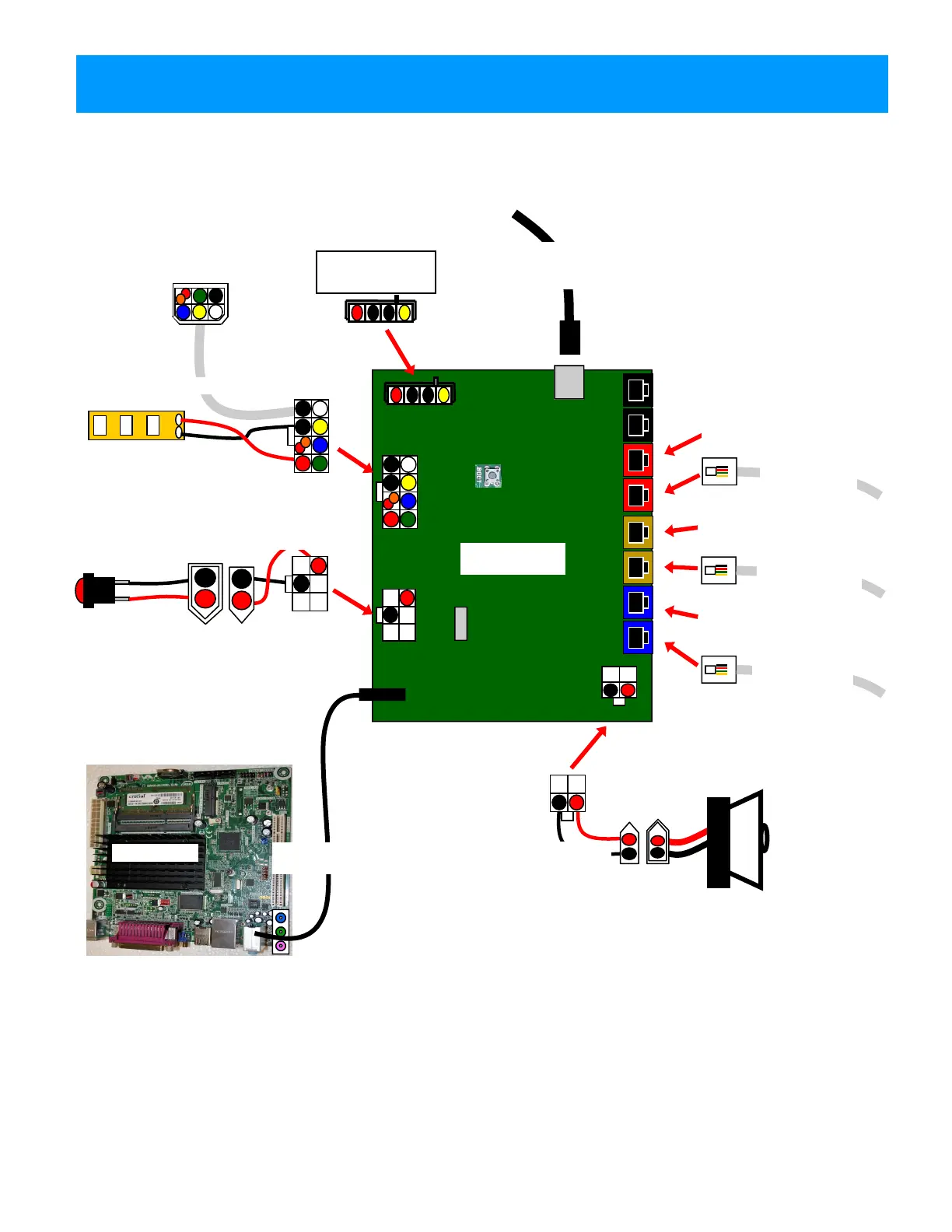

MAIN HUB WIRING DIAGRAM
Menu Button
AAPB2700
AACE1801
Power IN from
Power Supply
Speaker
AACE8811
AACE1802
Optional Locker
Unit # 2
AACE1811
From Spindle Hub
to blue socket
Optional Capsule
Unit # 2
Optional Spindle
Hub # 2
AAMB7-HD
Audio Phono Jack
A5CEAU010
AACB1800
AACB1800
A5CE1800
USB Communication
to Motherboard
AACE1800
LED lights in
top of unit
+
-
To optional
Marquee Sign
AACE1811
From Capsule Hub
to gold socket
AACE1816
From Locker Hub
to red socket
AACE1800
