Bay-Tek PRIZE HUB Modular User Manual

48

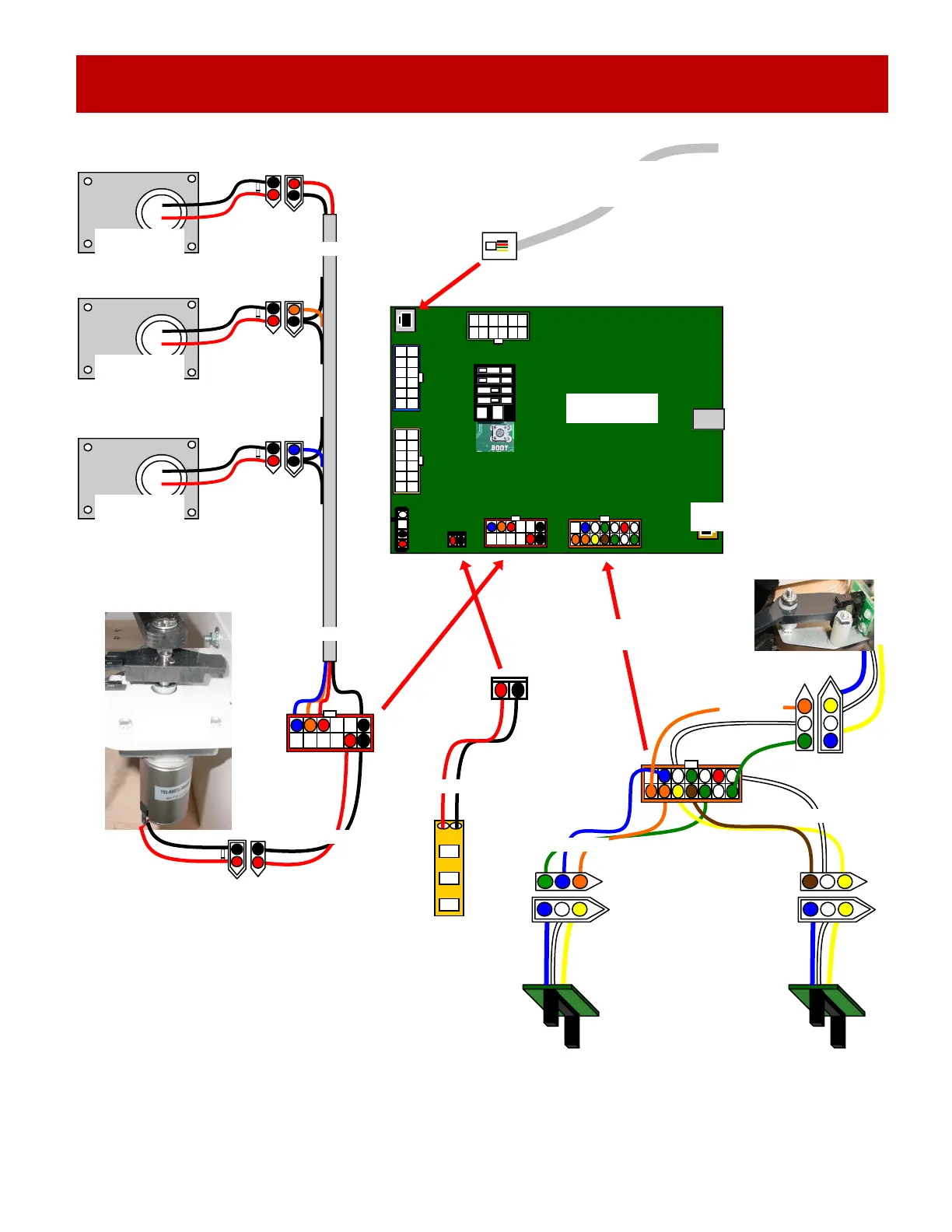

CAPSULE HUB WIRING DIAGRAM
AACE1814
LED lights
on front door
+
-
AACE1814
AAMO1800
Top Capsule
Motor
AAMO1800
Bottom Capsule
Motor
AAMO1800
Middle Capsule
Motor
Pivot Motor
AAMO1800
AACE1812
AACE1812
AACE1812
1
2
3 4
OFF
ON
4 3
AACB1803
Not
Used
AACE1811
Communication to Gold Socket
on AACB1800 Board
AACB4401
Capsule Drop Sensor
AACB4401
Engage Pivot
Sensor
AACB4401
Carousal
Home Sensor
AACE1812
AACE1812
AACE1812
To J9 Connector
on Board
All AACB4401 sensors will have 12 VDC supply
voltage between the yellow and blue wires.
There is normally 0 volts between the white and
blue wires. This will rise to 3.3 VDC when blocked
Yellow light is communication,
red is prize chute sensor
blocked, or door locker open,
or other error.
