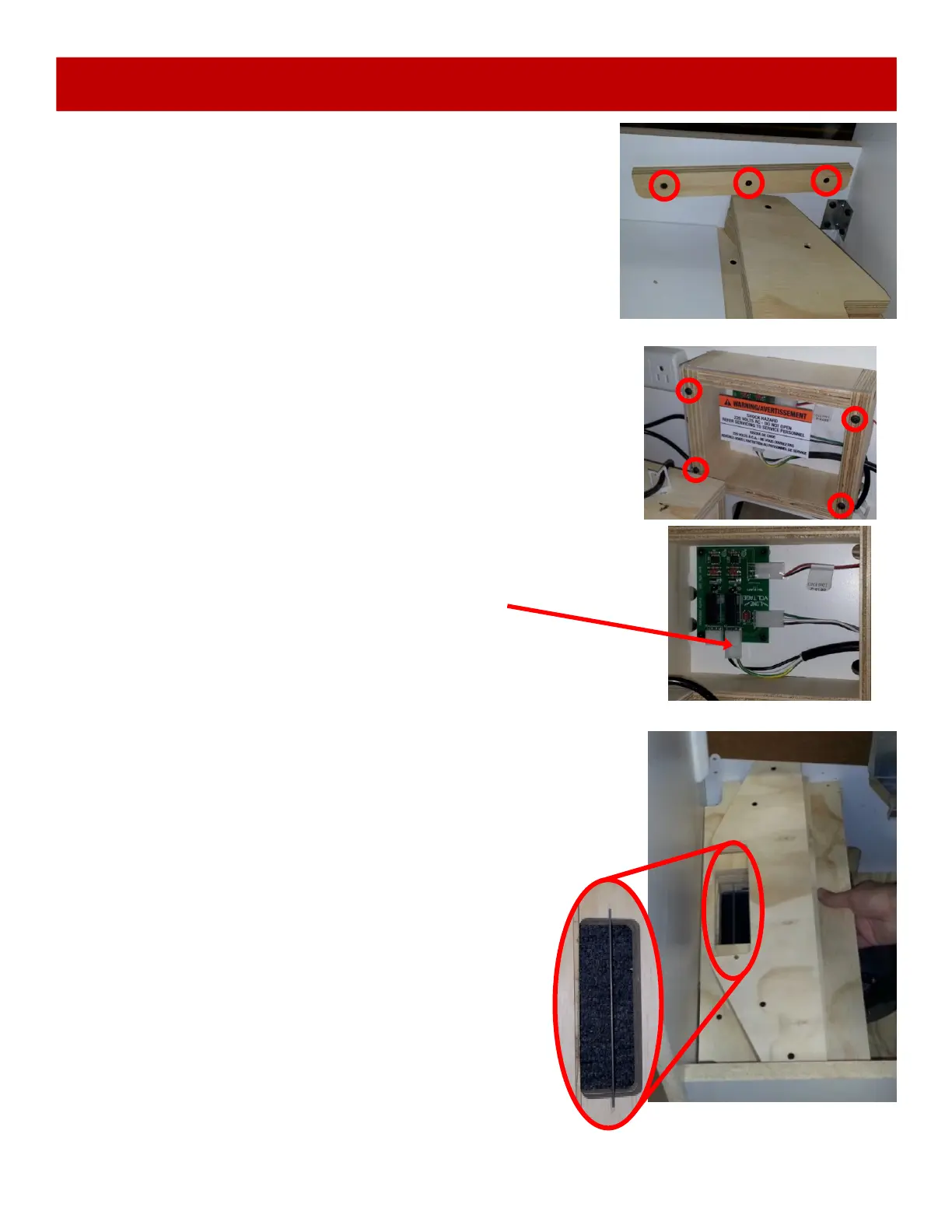

HOW TO REMOVE BLOWER (CONTINUED)
Important: There is a small wire (A5WRSS063) that blocks
the balls from dropping into the blower.
Ensure this is in place as the blower is removed and replaced.
There is a wood block attached to the back wall of the cabinet.
This must be removed to remove the blower/wood assembly.
Remove these 3 of 1 1/4” bugle screws (A5SCFH040) using a # 2
square bit.
Unplug the bottom connector from the AC Driver Board.
This is the blower power.
Open the front door of the game and locate this wood box.
Remove the 4 black 8 screws (A5SCPH101) using a # 2 square bit.
Remove the clear plexi shield covering the AC Driver Board
The blower/wood assembly can now be removed from the game as one
large assembly. It is not screwed down.
The blower can be unbolted from the wood and replaced if needed.
(Part # AABL 3201-QD for the 110 Volt AC blower)
(Part # AABL 1180-QD for the 220 Volt AC blower)
