Bay-Tek quik drop User Manual


- +
- +
- +
- +
AACE5848
LED’s in
the back of
Marquee
AACE5830
- +
AACE5849
LED’s around
back of Marquee
- +
AACE5850
LED’s around
side of Marquee

 

AACE5838
12 Volts from
Power Supply
Low Ticket Switch
Wired Normally Open
Part # AASW200
AACE5822
To J21
Connector
!
AACE5809
To Bill Acceptor
Part # A5AC9091
Power from
Outlet Strip
To Ticket Dispenser
Part # A5TD1
12 Volt Power
Enable Signal
Com Ground
Notch Signal
AACE5818
AACBL4A-DOORA
 
AACE5815
To J6 Connector
To Tix1 Connector
To J8 (DBA) Connector
AACE5815
This ICL connector
is to be used for
card swipe systems
AANEWGEN1-PJ/RBN

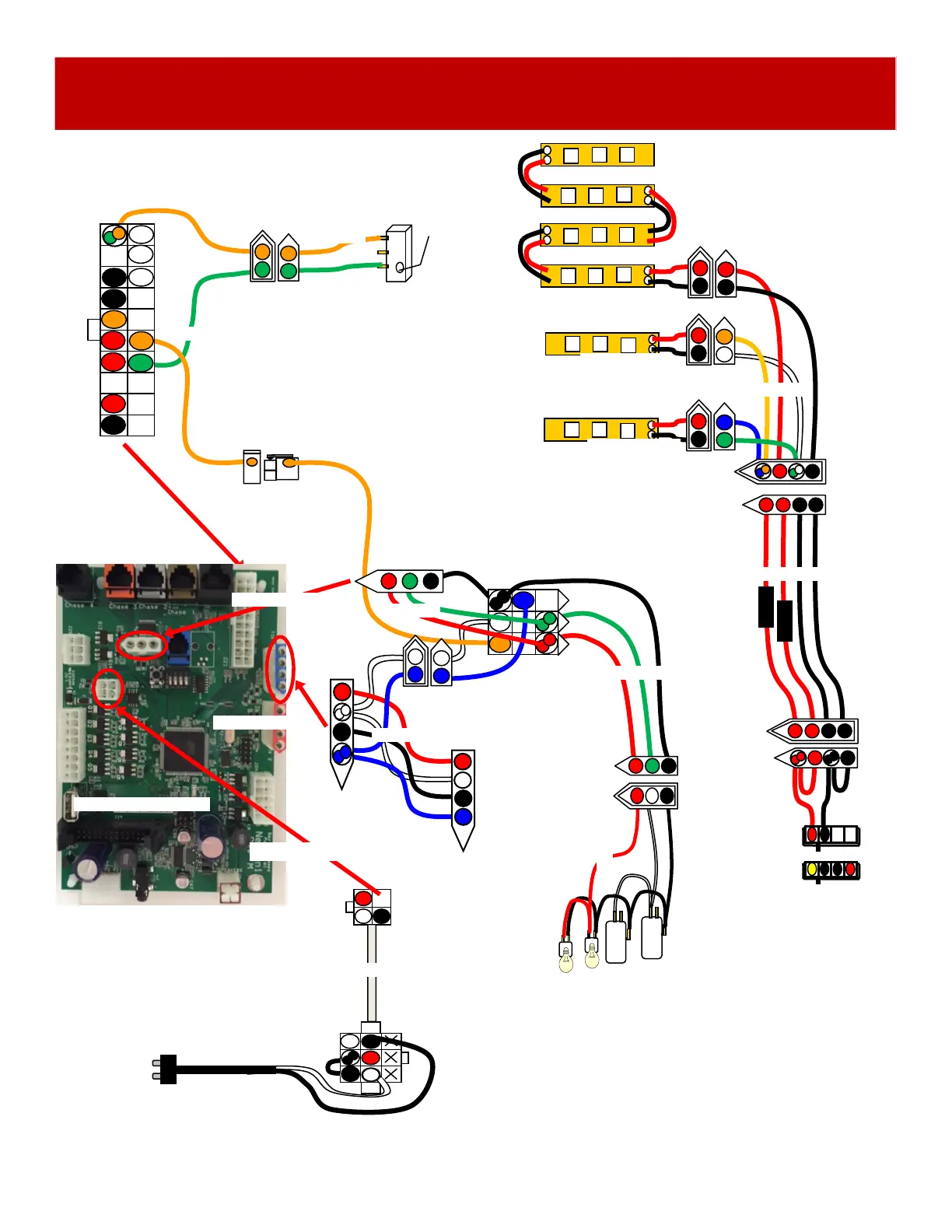

MARQUEE LIGHTING, COIN MECH, & TICKET DISPENSER
WIRING DIAGRAM
5 Amp Fuses
A5FUSE11
Blue
colored
connectors
AACE5858
Blue
colored
connectors
