Game
Counter
Ticket
Counter
Menu
Button
Menu
Select
AAPB2700
AAPB2700
AACE5820
A5PB4600
Ball Drop Button
AACE5815
To Top Ball Feed
Auger Encoder
Sensor
Switch is wired
normally open.
Light bulb only is
part # A5LA1003
Red colored
connectors
AABD5029-A
AC Driver Board
AACE5815
To J1 on AC
Driver Board for
blower signal
LED is ON when
Newgen is sending
signal to blow balls.
5 Amp mini fuse is
located inside this
box. (A5FUSE4)
To J25
connector
To J24
connector
AACE5803
AC in from
power strip
AABL3200
AC out to
blower
AANEWGEN1-PJ/RBN

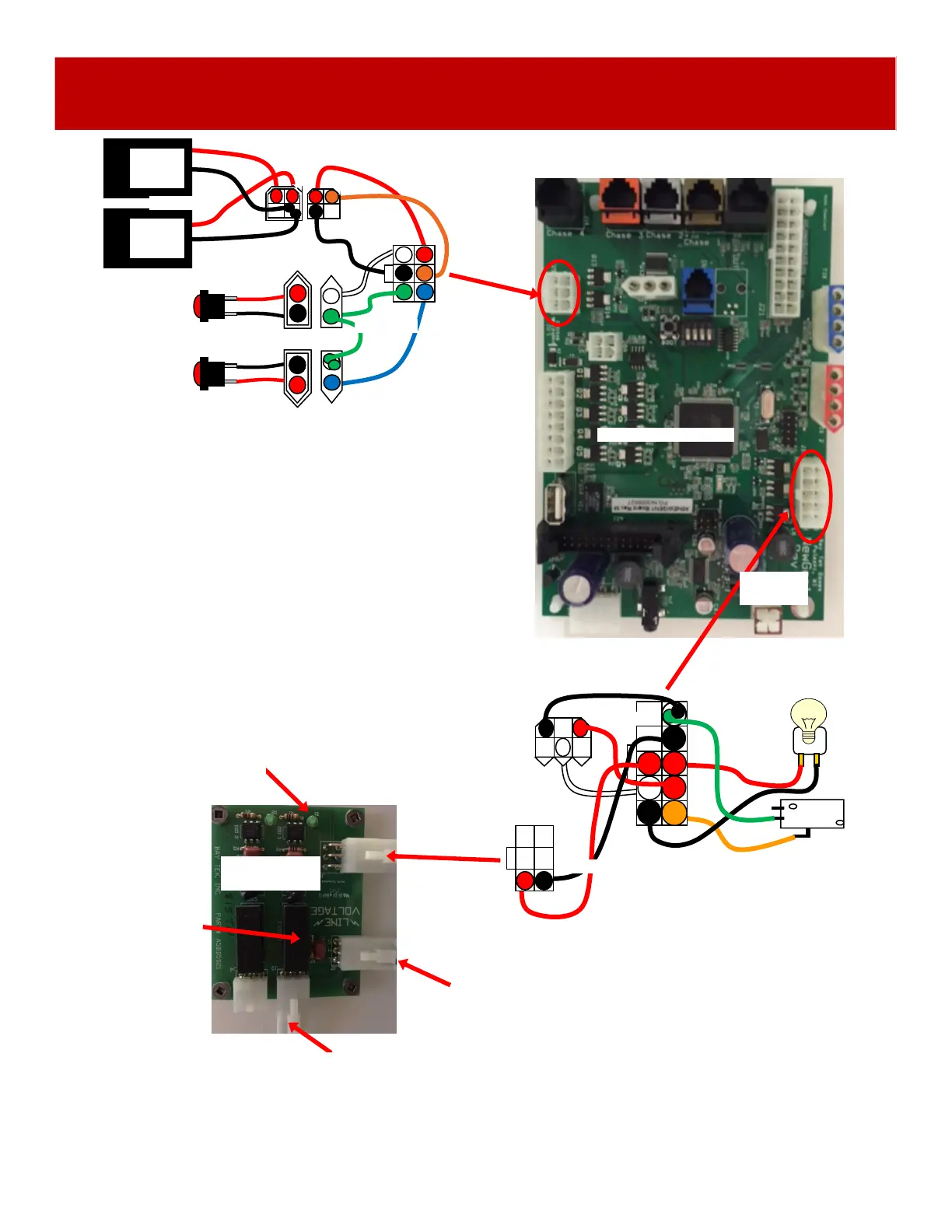

COUNTERS, MENU BUTTONS, BALL DROP BUTTON, AUGER
SENSOR, & BLOWER SIGNAL WIRING DIAGRAM
AACO3325
