Bay-Tek quik drop User Manual


AACB3906
Motor Driver BD
To J21
connector


AACB3404A
Ball Fill Sensor
Ball Count Sensor
12 Volts DC power between the Red
and Black wires.
Normally 3.3 VDC between Black
and White wires (LED is OFF)
When Blocked - 0 VDC between the
Black and White wires. (LED is ON)
AACE5851
Ball Score Sensor
12 Volts DC power between the
Orange and Green wires.
Normally 3.3 VDC between Green
and White wires (LED is OFF)
When Blocked - 0 VDC between the
Green and White wires. (LED is ON)
AACE5826
AACE5827
AAMO5801
Ball Dispense
Motor
2.4 Ohms
AACE5822
AACE5829
from Power
Supply
Ball Fill Sensor
12 Volts DC power between
the Red and Black wires.
Normally a ball is blocking
sensor and has 0 VDC
between Black and white
wires (LED is ON)
When Blocked - 3.3 VDC
between the Back and White
wires. (LED is OFF)
AACB3404A
Ball Score Sensor
AACE5816
AANEWGEN1-PJ/RBN
To TIX2
connector
AACB4401
Carousel Sensor
AACE5831
12 Volts DC power between the
Yellow and Blue wires.
When sensor is on an open notch
3.3 VDC between Blue and White
wires.
When Blocked - 0 VDC between
the Blue and White wires.

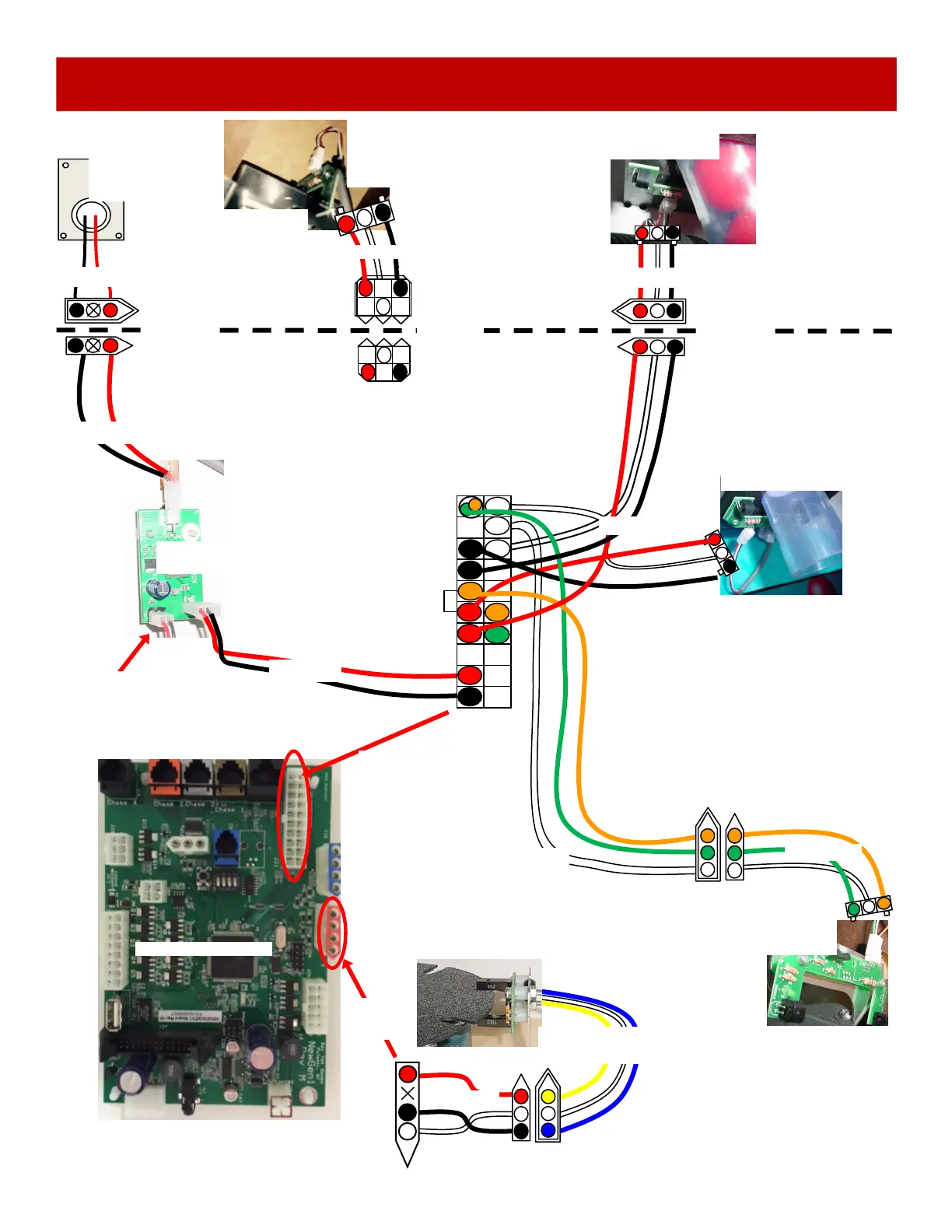

SENSORS & AUGER MOTOR WIRING DIAGRAM
12 Volts DC power between the
Black and Red wires.
When Blocked - 0 VDC between
the Black and White wires. (LED
is ON)
AACB3404A
Ball Feed Auger
Encoder Sensor
Yellow
colored
connectors
Red
colored
connectors
Green
colored
connectors
AACE5853
From CE5815
from J24
connector
Top marquee
Lower game
!
